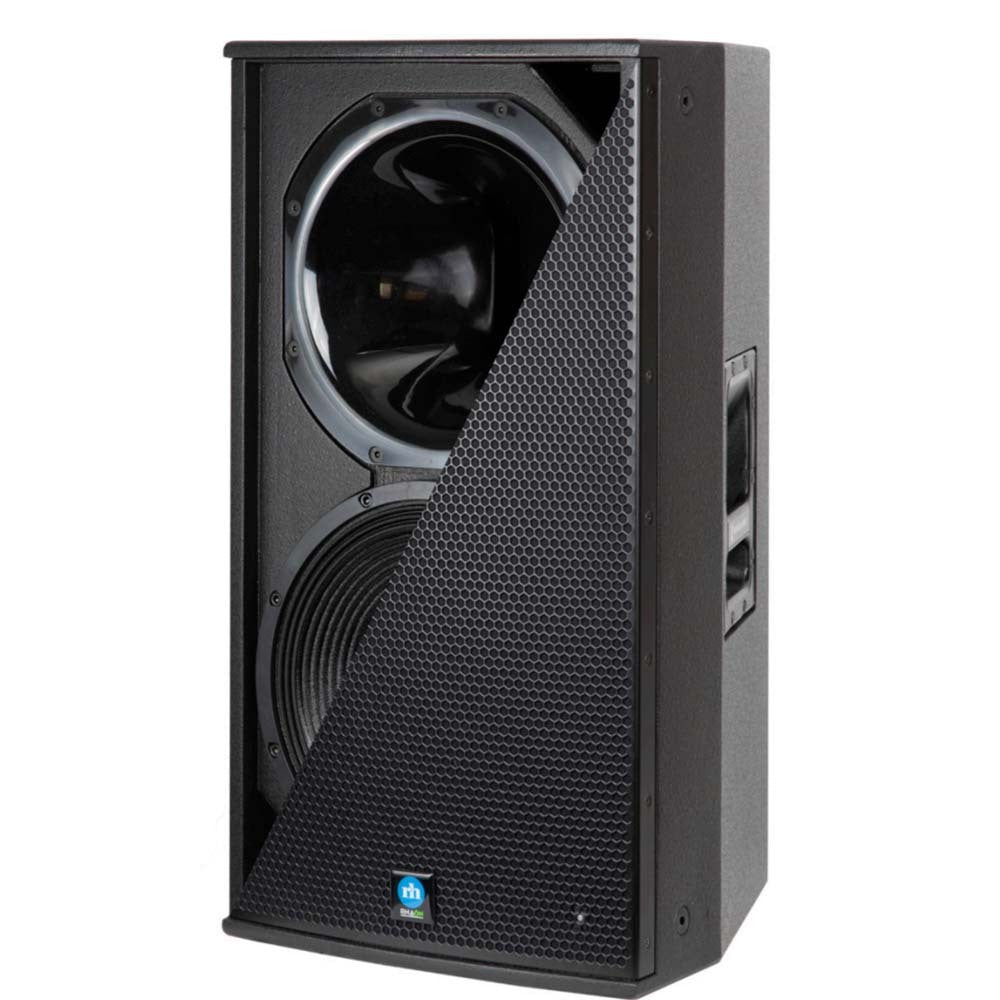

3-Way 12 Powered+Dsp P3-12-RN Renkus Heinz

$14,574.63
$14,574.63
Sold out

Includes GST

Sold out right now. We may be able to order it in. Call or message us and we’ll check with the supplier.
Call 03 4151 5751 Send us a message

Similar options in stock now

Afterpay and Zip are available at checkout on orders $100–$2,000.

Delivery & collection

Standard shipping Free*

Ships once we’ve sourced it. We’ll confirm exact timing with you first.

Conditions apply.

Express shipping $15

1–3 business days depending on location.

Flat rate Australia-wide. Choose Express at checkout.

Click & Collect Free

From our Footscray showroom

Not sure it’s the right one? Talk to a player.

Call 03 4151 5751Send us a message
View full details

Description

SKU RH-P3-12-RN

THIS PRODUCT IS FOR ONLINE ORDER ONLY. P3-12The P3-12 offers the sonic and performance advantages of a three-way loudspeaker in a cabinet the size of most two-ways. The CoEntrant CDT3 mid-high driver allows the use of a single optimally sized Complex Conic horn. Not only does this insure consistent directivity through crossover but also allows the horn to be ideally sized for consistent directivity through the low-mid crossover as well. Only Renkus-Heinz can combine this level of performance fidelity and power in such a compact easy to install or transport loudspeaker.Technical DataFrequency Response: 60 Hz. to 20 kHz. (+ or - 3 dB)Sensitivity: 1.0 volt for rated output analogMaximum Peak SPL: 133 dB-SPL@1 watt/1 meterDispersion: 90 h x 40 v (Optional 60 h x 40 v)Crossover Frequency: All Models 480 Hz & 2.5 kHz active electronicEnclosure: 3/4 in./19 mm Lite Ply plywoodGrille: 16 GA powder coated plated steelFinish: Black (RAL9010) or White (RAL9011) paint standard. Custom colors optional.Weight: 59 lbs/27 kgDimensions: 3620 mm w x 699 mm h x 394 mm dSA1250 Amplifier SpecificationsAudio Connections: All Models 2 x XLR-3 In & Loop-out Analog and AESNetwork Connections: All Models 2 x RJ45 Dante Primary & Secondary Ethernet/RHAON (Note: Dante and RHAON share a single or redundant Ethernet network.)All Models 2 x RJ45 Looping Ethernet/RHAONMax Input Level: All Models +22 dBu Analog 0 dBFS digitalUser DSP: All Models Eight fully parametric filters high and low shelf high and low pass filters delay to 340 ms. Software: All Models RHAON IIPower Output: All Models LF= 1000 watts @ 8 ohms / HF = 250 watts @ 8 ohms. Multi-band peak and thermal limiting on both channels protects the drivers.Mains Voltage: All Models 100-240 volts 50/60 Hz auto-switchingPower Consumption: All Models Idle: 200 mW. 1/8 power: 240 W (onset of limiting) 1/3 power: 550 W (hard limiting)Power Connector: All Models Neutrik powerCON TRUE-1Temperature Limits: All Models Max.: 140º F/60º C with no direct sun exposure; Min.: -22º F/-30º C; leave unit on to keep interior warm below 32º F/0º C.Latency: All Models 6.25 msAll Models 6.25 ms Analog & AES6.25 ms + Dante transport latency
