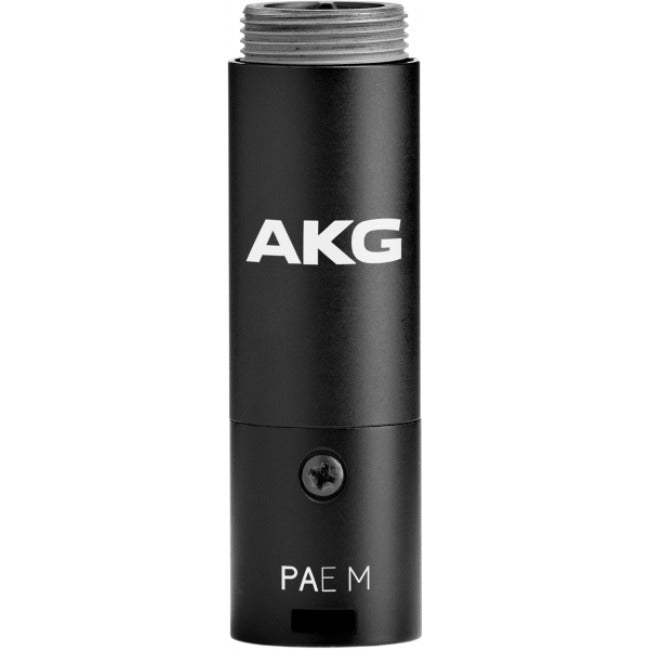

AKG 3-PIN XLR Phantom Power Module
Includes GST
Standard shipping Free
Ships once we’ve sourced it. We’ll confirm exact timing with you first.
Express shipping $15
1–3 business days depending on location.
Flat rate Australia-wide. Choose Express at checkout.
Click & Collect Free
From our Footscray showroom
Couldn't load pickup availability
Delivery & collection
Standard shipping Free
Ships once we’ve sourced it. We’ll confirm exact timing with you first.
Express shipping $15
1–3 business days depending on location.
Flat rate Australia-wide. Choose Express at checkout.
Click & Collect Free
From our Footscray showroom
- ★★★★★ 4.6 from 944+ Google reviews of Scarlett Music (opens in a new tab)
- Returns & warranty
- Price-match promise
- Authorised AKG dealer
Not sure it’s the right one? Talk to a player.
View full detailsDescription
SKU PA-EMCMI
Product Information: EXECUTIVE MODULARITY for use in theatres, houses of worship and conference rooms The PAE M reference phantom power module for fixed and mobile installation provides a gold-plated three-pin XLR connector. With its wide voltage range the module will fit most available microphone mixers. The module also features a 250 Hz bass roll off for reduction of structure-borne noise.The PAE M comes with an integrated system connector with gold- plated contacts. This unique connection securely fits all available gooseneck modules of the DAM+ Series as well as the HM1000 M hanging module. Feeds all DAM+ Series capsulesfor highest flexibility RFi Shield technologyprovides high immunity to radio-frequency interference Accepts 9-52V inputfor almost any available mixer inputs Switchable bass roll offfor reduction of body noise and proximity effect Highly reliable contacts to mounting modulesprevent contact problems and ensure extra-long life Specifications: General Audio frequency bandwidth 20 to 20000 Hz Bass cut filter 150 Hz Recommended load impedance 2000 Ohms Powering Interface Voltage 9 to 52 V Current 3.5 mA Audio Output Type Balanced XLR Gender Male Contacts 3-pin Dimensions / Weight Height 65.5 mm Diameter 19.1 mm Net Weight 43 g
