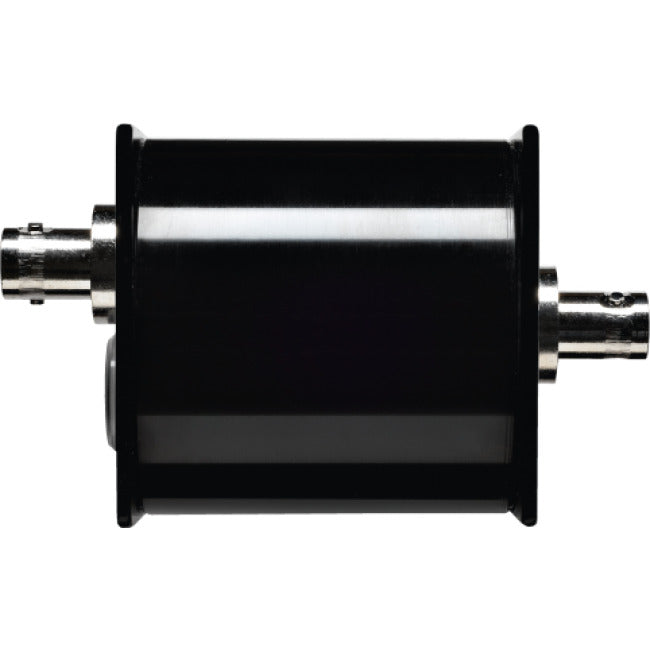

AKG AB4000EW Antenna Booster

Product Information: BEYOND ALL LIMITS for DMS800, WMS4500, WMS470, WMS420 receivers AB4000 EW is a high-performance antenna booster to compensate signal loss on long antenna cables. One AB4000 EW can compensate 3.5 to 17.5 dB of cable attenuation. Up to two boosters can be cascaded in case of extremely long cable runs. The AB4000 EW comes in a rugged, waterproof metal housing and features an in-line power LED display and cable length adjustment switches. It works with all active and passive AKG antennas, RA4000 B/EW, RA4000 EW, SRA2 B/EW and SRA2 EW, and operates in a frequency range from 470MHz to 952MHz. 17dB amplificationfor extremely long cable runs Remote powering via the antenna cableeliminates any extra installation effort Cable length adjustment switchfor optimizing antenna signal levels Water-resistant constructionto withstand extreme weather conditions Specifications: General Switching bandwidth (from/to) 470 to 952 MHz Operating temperature range -10 to 50 Celsius Antenna Input Amount 1 Type BNC Gender Female Note RF input (50 Ohms) Recommended load impedance 50 Ohms Antenna Output Amount 1 Type BNC Gender Female Note RF output (50 Ohms) Recommended load impedance 50 Ohms Design Body Metall Finish black Dimensions / Weight Length 110 mm Height 50 mm Width 50 mm Net Weight 150 g
