AKG

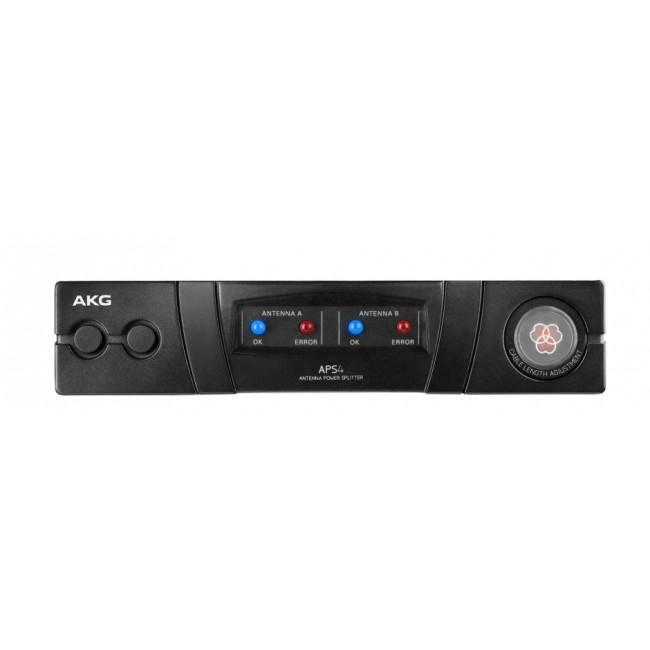

AKG APS4 Antenna Power Splitter Eu Psu

$1,698.95
$1,999.00 $1,698.95 Save $300.05
Sale Sold out

Includes GST

Sold out right now. We may be able to order it in. Call or message us and we’ll check with the supplier.
Call 03 4151 5751 Send us a message

Similar options in stock now

Make 4 interest-free payments of $424.74 with Afterpay
or pay nothing today with Zip

Delivery & collection

Standard shipping Free

Ships once we’ve sourced it. We’ll confirm exact timing with you first.

Express shipping $15

1–3 business days depending on location.

Flat rate Australia-wide. Choose Express at checkout.

Click & Collect Free

From our Footscray showroom

Not sure it’s the right one? Talk to a player.

Call 03 4151 5751Send us a message
View full details

Description

SKU APS-4EUCMI

Product Information: SPLIT IT UP for DMS800, DMS700, WMS4500, WMS470, WMS420 receivers The APS4 is a wide-band UHF active Antenna and Power Splitter that can feed up to 4 receivers with the RF signal coming from one pair of antennas and also supplies power to all connected receivers via BNC cables. The splitter operates in an extended frequency range of 470 to 952 MHz. Adjustable RF-level attenuation settings guarantee maximum operating distance even when using different cable lengths and different types of cables. The APS4 comes in a rugged half-rack metal housing and works with all active and passive AKG antennas available on the market (RA4000 B/W, RA4000 W, SRA2 B/W and SRA2 W). The product is shipped with a rack mount kit (RMU4000), two front mount antenna cables and ten BNC cables (MKPS) for an immediate system setup. The APS4 sets are available in four different power supply variants: EU, US, U.K. or none included.Two rear panel antenna inputs provide a 10 VDC supply voltage for powering up to three active elements per antenna path. E.g. one active antenna (RA4000 B/W or SRA2 B/W) and two AB4000 antenna boosters connected to one RF input. Also located on the rear panel are two sets of four BNC antenna output connectors for feeding up to four diversity receivers and two additional antenna outputs for cascading up to three further APS4 devices. Specifications: Operates in an extended frequency rangefrom 470 to 952 MHz for maximum flexibility Cable length adjustment switchfor optimizing antenna signal levels Link outputto cascade up to three APS4 for larger systems Remote power for antennas and receiversto eliminate any extra installation effort All in one boxrack mount kit and cables included
