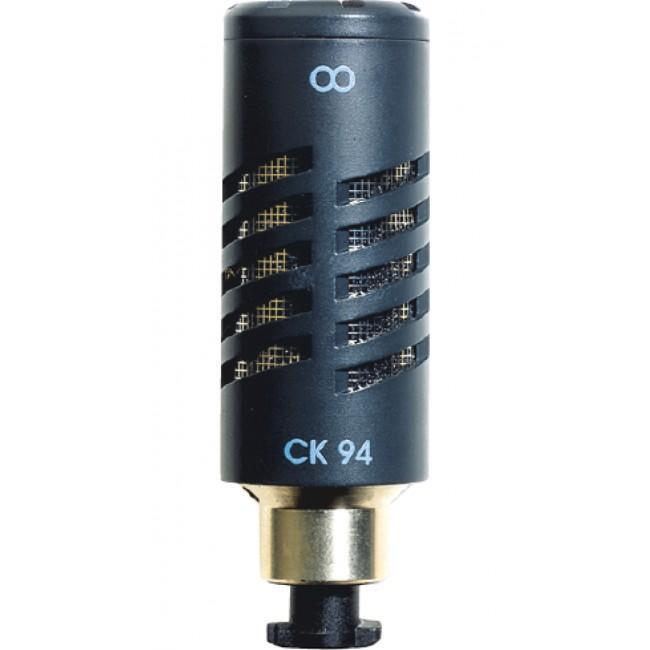

AKG CK94 Figure 8 Capsule For Se300b

Product Information: DO THE TWIST wherever speed, ruggedness and high sound quality are mandatory The CK94 high-performance small condenser capsule is characterized by a smooth and well-balanced frequency response. Its figure-eight polar pattern picks up sound arriving from opposite directions and efficiently suppresses off-axis sounds. Thus it is the perfect tool for applications where sound sources face each other, as in broadcast-interview and roundtable situations. It is also perfect as a side microphone in M/S stereo technique.The CK94 is part of the Blue Line Series and works exclusively with the SE300 B pre-amp module. Its robust Modulock™ bayonet coupling allows quick and easy changing of the capsules. Figure-eight polar pattern with accurate axial responsefor advanced stereo miking techniques Robust Modulock™ bayonet designallows quick and easy changing of the capsules Carefully handcrafted in Vienna, Austriameticulous attention to detail ensures highest quality Specifications: General Audio frequency bandwidth 20 to 20000 Hz Equivalent noise level 22 dB-A Sensitivity 10 mV/Pa Signal to Noise 72 dB-A Electrical impedance 200 Ohms Recommended load impedance 1000 Ohms Polar Patterns Figure of eight Powering Interface Voltage 9 to 52 V Current 2 mA Audio Output Type bayonet mount Design Finish dark gray Dimensions / Weight Height 59 mm Diameter 19 mm
