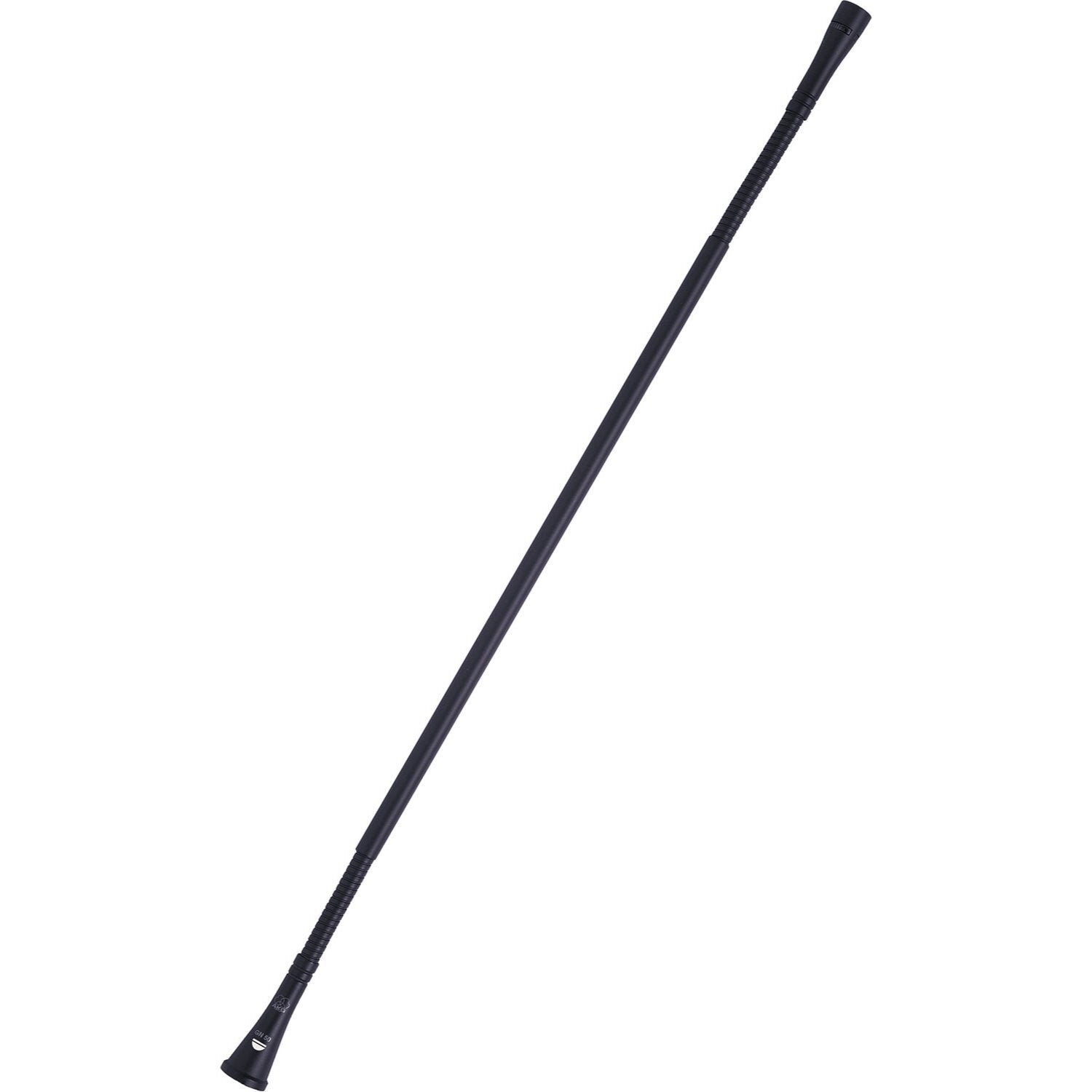

AKG GN30 30cm GN Perm Install Capsule Req

Product Information: The new GN ESP Series features a programmable mute switch to cover a wide range of applications. A bank of jumpers makes it easy to select the desired switch function for any application: on/off push-to-talk push-to-mute The mode selection jumpers are hidden inside the housing so they cannot be realigned unintentionally. An LED ring provides a clearly visible MIC ON/OFF indication. The bank of jumpers also allows the LED ring and the integrated bass rolloff filter to be enabled or disabled. In addition, the new electronic circuit design provides high immunity to radio-frequency interference. Specifications: Programmable mute switch High RFI (Radio Frequency Interference) immunity Rugged construction Compatible with all Modular Series capsules Highly reliable contacts for capsule modules Integrated LED ring status indicator Integrated, switchable bass cut Integrated, gold-plated XLR connector Bass filter 250 Hz, -10 dB bei 50 Hz Impedance <=600 ohms Recommended load impedance >=2,000 ohms Supply voltage 9 to 52 V phantom power to DIN/IEC Powering <=3.5 mA Connector 3-pin male XLR Finish matte dark grey Dimensions max. dia.: 20 mm (0.8 in.), length: 260/405/600 m (10.2/15.9/23.6 in.) Net weight 110/522 g (3.9/18.4 oz.)
