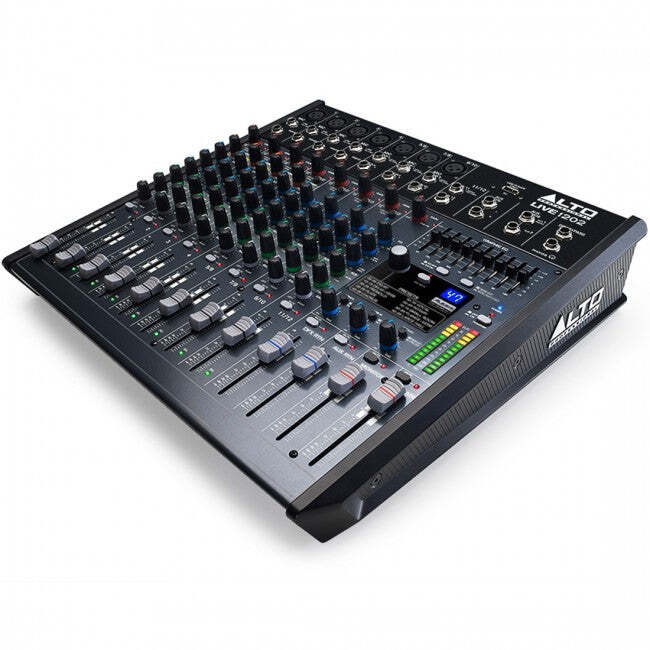

Alto Professional LIVE-1202 Mixer 12-Ch w/ Effects

Professional Mixing Features

The Alto Professional Live 1202 is a pro 12-channel, 2-bus mixer

equipped with the tools you need to create the perfect mix. With

flexible routing options and a multitude of onboard DSP tools, Live

1202 fits the demands of nearly any live performance environment. It

features 7 balanced XLR inputs with switchable phantom power, 3-band

EQs for additional tonal shaping, two aux sends per-channel for

external effects and monitoring, and a 9-band graphic EQ for main or

monitor outputs. A headphone jack with an independent level control

enables additional monitoring and mixing. 60mm faders with LED

meters provide precise control and visual feedback for accurate,

hands-on mixing. With its diverse connectivity options, Live 1202

can handle any sized event from small coffee house gigs to mid-sized

ensembles to full-stage rock bands.

Analog Compression & Superior Sound Quality

Live 1202 offers high-fidelity sound and high-quality DSP tools in a

single package. Each microphone channel is outfitted with a

high-headroom ultra-low-noise DNA™ microphone preamp for

unprecedented sound quality and a robust audio signal path. Live

1202’s high headroom results in cleaner mixes, a purer signal path,

and loud, punchy audio. Onboard analog compression (channels 1-4)

helps control dynamics and gel instruments together for a cohesive,

defined mix. With high headroom, pristine sound, and built-in

dynamic control, Live 1202 ensures that the full dynamic range of

your mix comes across with striking clarity.

USB Audio Interface

Record your mix directly to a Mac or PC with a single USB

connection. Live 1202’s built-in USB port allows engineers,

producers, and performers to convert two channels of 24-bit audio

(Main Mix or Sub Mix 1/2) straight to a computer. Record live

performances, band practices, theater performances, speaking events,

and any other live sound event onto your computer for additional

editing, mixing, and post-production. The USB connection is

bi-directional, enabling sound files stored on your computer to be

streamed to and played through Live 1202.

100 High-Quality Alesis DSP Effects

Live 1202 comes ready to handle any mixing situation with premium

24-bit Alesis effects built right into its design. Select from 100

DSP effects that give you additional creative control in any mixing

environment. Choose from room and space delays, small and large hall

acoustics, plate and spring reverbs, flangers, choruses, and more.

The effects presets make it easy to dial in your favorite sound or

experiment with different effect settings on the fly.

Color-coded Interface

Often, live sound environments are dimly lit and offer poor

visibility to the mixing engineer. Live 1202 solves this problem by

color coding each section of the mixer and providing brightly

colored knobs so you can quickly and easily find what you need to

adjust. Blue, green, red, yellow and white pots are instantly easy

to identify in low lighting. LED indicators for output level, peak,

and phantom power also assist in making sure that you have multiple

visual cues that reflect everything you're hearing. Specifications:

PROFESSIONAL 12-CHANNEL/2-BUS MIXER

7 XLR inputs with high- DNA™ mic preamps

Dynamic compression (Channels 1-4)

3-band EQ plus 2 aux sends per channel

60mm faders with mute switch and LED meters

USB audio connectivity with level control

100 Alesis DSP effects

Balanced XLR, balanced/unbalanced 1/4” outputs

9-band graphic EQ for main or monitor outputs

Headphone out with independent level control
