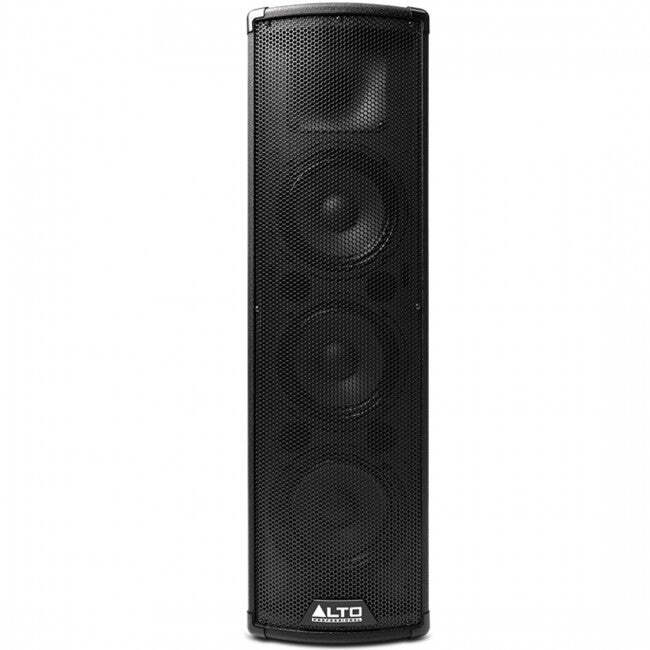

Alto Professional TRANSPORT-13 Portable PA System 400W w/ UHF Mic 638-662 MHz

The Alto Professional Trouper is a compact high-performance PA system

that perfectly fulfills the unique demands of solo artists and small

ensembles. Leveraging technology from our widely-acclaimed Truesonic

and Black Series sound reinforcement systems, Trouper is the

best-sounding and most full-featured small-venue PA system

available.

Trouper is a 2-way 200-watt bi-amplified system (130 watts LF/70

watts HF) with (3) 6 ½” (165mm) woofers and a 1” (25mm)

high-frequency compression driver, spanning the full musical

frequency range from 65-20kHz. The system has thermal and dynamic

overload protection, so the sound is always clean and clear no

matter how hard you push it.

Trouper is brimming with thoughtful touches and conveniences that

are exactly what you need to ensure your performances are smooth and

glitch-free:

Three channels of inputs: line/mic 1, line/mic 2, and Aux

XLR, RCA, ¼” and 1/8” connectors

2-Band (LF/HF) built-in EQ for each channel

Full Bluetooth® capability for streaming input signals wirelessly

(plus wireless linking of another Trouper system for stereo

applications)

Trapezoidal enclosure dramatically reduces internal standing wave

resonances, resulting in cleaner output in upper bass and vocal

range

We also built it to be easy to set up, use, and take real-life

punishment:

Stand-mountable with 36mm pole socket

Rugged: Scuff-resistant black vinyl wrap and protective steel

corners

Easily transportable: Lightweight (just 23 lbs.) and built-in

handle.

Add it all up, and Trouper is a great-performing, flexible,

go-anywhere PA system that makes any small-venue gig sound its best. Specifications:

Trouper

COMPACT HIGH-PERFORMANCE PA SYSTEM

Integrated 3-channel professional audio mixer with volume and 2-band EQ on each

channel

(2) XLR+1/4-inch combo inputs + stereo RCA and 1/8-inch inputs. Connect

microphones, instruments, DJ mixers, controllers and more

Bluetooth-equipped-wirelessly stream backing tracks or background music from any

Bluetooth-compatible device

Bluetooth Link-Stream a stereo signal to separate speakers—no cables required

Bi-amplified design with (3) 6.5-inch low/mid woofers and a 1-inch

high-frequency tweeter

XLR link output for use with additional loudspeakers and subwoofers

Easily transportable: Lightweight (just 23 lbs.) with built-in rear handle

Rubberized feet and 36mm pole socket for stand mounting

System Type: 2?way Bi­?amplified Compact PA

System for the Active Performer

High Frequency: 25 mm (1 inch) voice coil Neodymium compression driver

Low Frequency: (3) 6 ½” (165mm) woofers with 1" voice coil

Frequency Range: 65 to 20kHz

Crossover: 1.8 kHz, electronic

Power Amplifier: Bi-­amplified, 200 watt peak (130 W LF + 70 W HF)

Maximum SPL: 117 dB-SPL @ 1 m (continuous), 120 dB-SPL @ 1M (peak)

Electronic Protection: Thermal/overload

Protection Indication: Signal/Limit Red LED

Inputs: 3 channels: Line/Mic 1, Line/Mic 2, Aux

Input Connectors: (2) ¼” XLR female combo connectors, (1) stereo RCA, (1) 1/8”

stereo

Output Connectors: (1) XLR male mix output

Equalization: 2-band LF and HF

Bluetooth: A2DP streaming audio, with full stereo link when using two Troupers

Power Controls: On/off power switch, IEC line cord AC input, Power indicator LED

Enclosure Type: Trapeziodal MDF enclosure with black vinyl wrap and protective

steel corners

Handle: Rear mounted, ergonomically designed

Stand Mount Socket: (1) female 36mm pole socket

Dimensions: 8.4 x 29.2 x 10.1 in/21.3 x 74.17 x 25.65 cm

Weight: 23 lbs/10.43 kg
