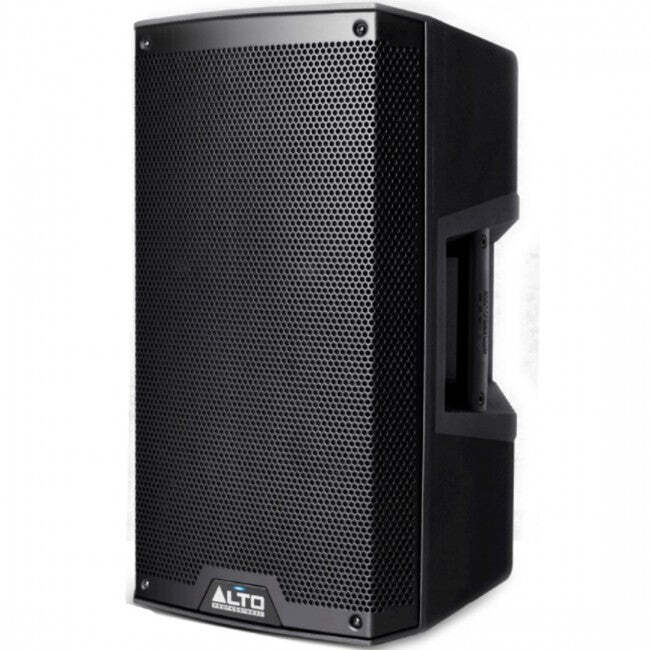

The all-new Alto Professional TS3 Series of professional loudspeakers
deliver solutions for every
performance and installation challenge. With 2000 watts of explosive
bi-amplified power and
newly-designed transducers, these speaker systems deliver truly
high-performance audio, without
compromise or restriction. Their elegant industrial design,
lightweight but rugged construction,
versatile mounting/placement application and intuitive user
interface achieves a level of excellence
and refinement that exceeds expectations. Specifications:
2000 W peak (1300 LF + 700 HF) 1000 W
continuous RMS (650 LF + 350 HF)
8-inch (203 mm) LF driver, 2.5-inch (63.5 mm) high-temperature voice coil
1.5-inch (38 mm) voice coil, neodymium magnet HF driver, with precision wave
guide
High quality, lightweight, cabinet design for easy transport, set up and
installation
Pole-mountable, wedge monitor, bracket installation or flown application with
integral
M6 suspension points
Integrated 2-channel mixer with dual XLR 1/4-inch combo mic/line inputs,
independent level
controls, XLR Link output, Contour EQ switch and Ground-Lift switch
Custom engineered high-efficiency class D amplifiers with passive cooling design
No fan
means the speaker runs cleaner, quieter and has greater long-term reliability
Design Origin: Designed and tuned in the USA
Output Power: 2000 W peak (1300 LF + 700 HF)
1000 W continuous RMS (650 LF + 350 HF)
LF Driver: 8-inch (203 mm) LF driver, 2.5-inch (63.5 mm) high-temperature voice
coil
HF Driver: 1.5-inch (38 mm) voice coil, neodymium magnet HF driver, with
precision waveguide
Crossover: 2.5 kHz
Maximum SPL: 129 dB peak, 126 dB continuous (dB SPL @ 1 m)
Frequency Response: 62 Hz20 kHz (+ 3 dB)
Frequency Range: 52 Hz22 kHz (-10 dB)
Horn Coverage: 90° H x 60° V nominal
Equalization: Contour Switch Low and High Frequency +3dB Boost
Connectors: (2) XLR/TRS 1?4 (6.35 mm) combo inputs, (1) XLR link output, (1)
IEC power cable input
Controls: (2) Volume, Power on/off switch, Contour switch, Ground-Lift switch
Indicators: 2 x Power LED (front and rear), Clip limiter LED
Protection: Electronic clip, Thermal and transducer overdrive protection
Power Connection: IEC with Mains Fuse
AC Voltage Input: 100,110120,220240 V, 50/60 Hz
Enclosure: Trapezoidal, injection-molded, polypropylene enclosure, with
perforated steel grille
Mounting/Installation: 36 mm standard pole mount, Wall or celling mount using
TSB810 bracket,
Flown application with integral M6 suspension points, Wedge monitor
Dimensions (WxDxH): 10.3 x 9.6 x 17.2 / 261 x 244 x 437 mm
Net Weight: 20.22 lbs. / 9.17 kg.
Design Origin: Designed and tuned in the USA
Accessories: TSB810 Bracket, TS208 Cover
