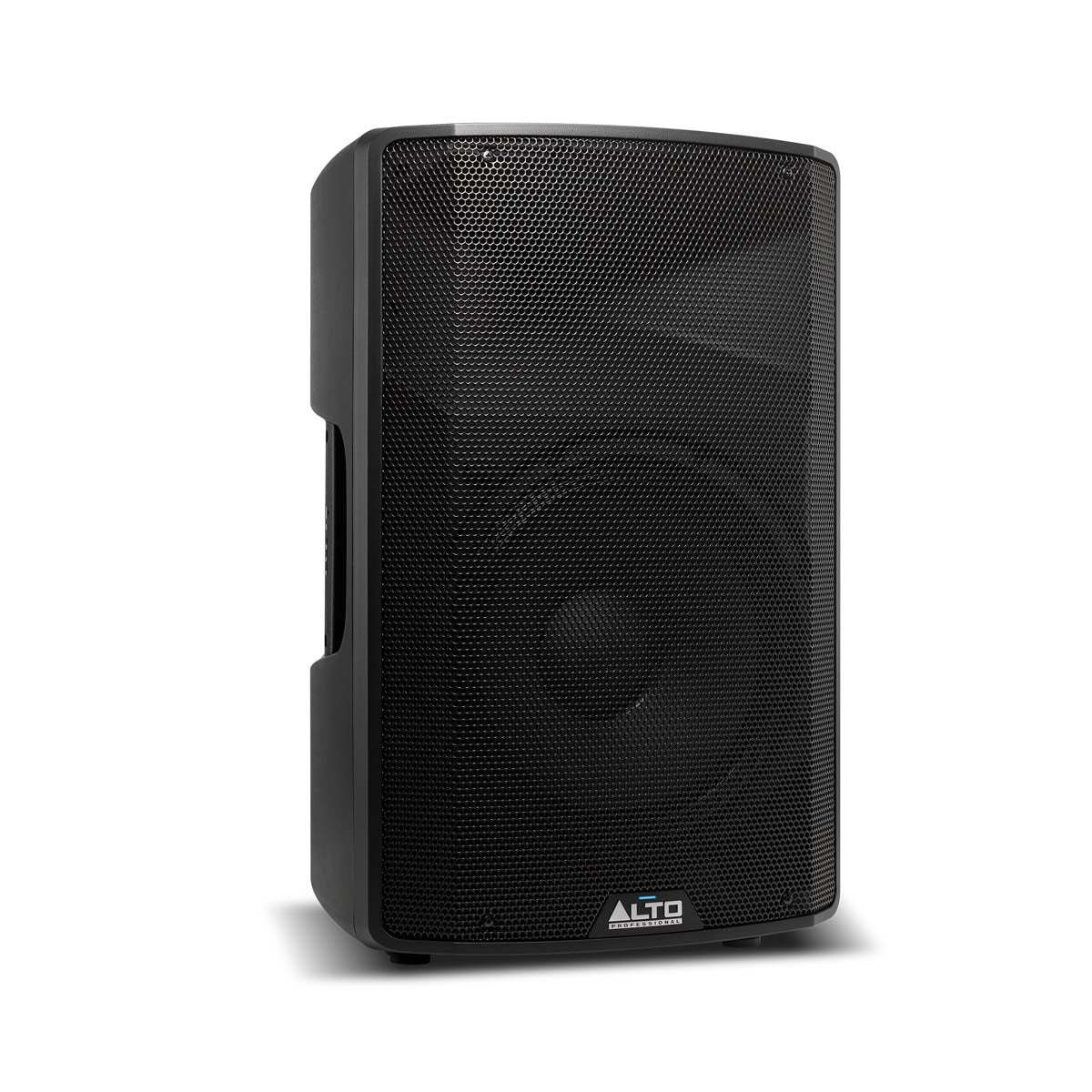

Alto Professional TX312 Powered Speaker 12inch 750w Active PA Loudspeaker

Introducing the Alto TX312, a 700-watt powered speaker perfect for a variety of live sound situations. With the TX3 Series, Alto Professional has created a family of powered loudspeakers suitable for your most demanding gigs, night after night. Utilizing much of the technology of our acclaimed TS3 series, the new TX3 Series delivers the power and clarity you need to sound your best.

The TX312 features a bi-amplified 2-way designs, with a long-excursion woofer and a 1-inch titanium compression driver in a precision horn. The horn design of the TX3 Series improves high-frequency performance and produces a very precise 90?H X 60?V radiation pattern—ideal for optimal audience coverage.

The TX312 Series are housed in rugged, lightweight, easily transportable cabinets. The trapezoidal shape enables either upright or wedge monitor positioning and the full-sized steel grille gives complete driver protection. These speakers are built for continuous heavy-duty use. Add to that a full complement of inputs/outputs and mounting options and it’s easy to see that the TX312 plays an indispensable role in your performance.

Specification

700 Watts peak (350 Watts continuous) Class D power

The 90 H x 60 V horn delivers greater coverage

The full grille delivers style and provides protection for your investment.

12-inch (305 mm) LF driver, 2-inch (51 mm) voice coil

1-inch (25.4 mm) titanium HF compression driver

Lightweight, portable design for main or wedge monitor operation

Standard speaker pole socket

Bi-amplified design with precision active crossover and EQ

Balanced XLR Mic/Line input, Link Output and Volume control

Integrated analog limiter and overload protection circuitry

Contour switch with low- and high-frequency +3dB boost

Ground-lift switch removes unwanted hum or buzz

Designed and tuned in the USA

System Type: 2-way active ported loudspeakerDrivers:

Low-Frequency: 12.0” (305 mm) driver, 2.0” (51 mm) voice coil

High-Frequency: 1.0” (25 mm) titanium-diaphragm compression driver, 1.0” (25 mm) voice coil

Amplifier: 700 watts (peak), 350 (continuous), Class D powerHorn Coverage: 90º horizontal x 60º vertical (nominal)Frequency Response: 70 Hz – 20 kHz (-3 dB)Crossover Frequency: 2.5 kHzMax SPL: 120 dB @ 1 mEqualization: Contour switch with low- and high-frequency +3 dB boostConnectors:

(1) XLR/TRS 1/4” (6.35 mm) balanced input (Line/Mic)

(1) XLR output (Link)

(1) IEC power cable input

Controls: Power switch, volume control knob, contour switch, ground-lift switchIndicators: (2) power LEDs (1 front panel, 1 rear panel), clip limiter LEDPower:

Connection: IEC

Voltage: 100–120 V~, or 220–240 V~; 50/60 Hz

Fuse: 100–120V T6.3AL AC250V or 220–240V T3.15AL AC250V

Consumption: 350 W

Protection: Thermal, overload analog limiter/compressorEnclosure: Injection-molded polypropylene, multi-angle for main or monitor applications, metal grille, rubber feet, 2 handles (both sides)Mounting/Installation: Standard 36 mm pole socket, wedge monitorDimensions (height x width x depth):

23.7” x 15.0” x 13.5”

602 x 381 x 343 mm

Weight:

29.3 lb

13.3 kg
