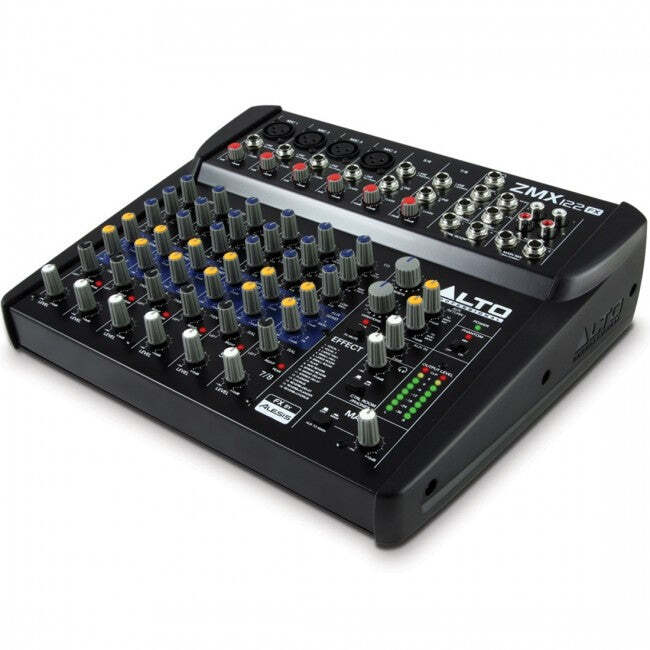

Alto Professional ZMX122FX Compact Mixer 8-Ch w/ Effects

Professional-Grade Mixing Features With a Go-Anywhere Attitude Professional Mixing Features with a Go-Anywhere Attitude The ZMX122FX is an eight-channel, two-bus mixer with all the inputs, outputs, routing, EQ, and effects you need for more intimate live performance reinforcement situations. It features four microphone inputs with balanced TRS jacks (two with Phantom Power), a three-band EQ and two AUX sends on each of the four mono channels and the two stereo channels, and even two-track inputs for integrating audio playback devices. The ZMX122FX is a perfect, take-anywhere professional mixer. 256 Onboard Effects Regardless of what you're mixing, give your mix a professional edge with 256 onboard 24-bit DSP effects designed in partnership with Alesis, a coveted creator of sound-shaping digital effects that has been setting standards for DSP technology for nearly three decades. Choose from room and space delays, small and large hall acoustics, plate and spring reverbs, flangers, chorus effects and more. The ZMX122FX offers 16 variations of 16 professional Alesis effects from which to build, tweak, and dial in your sound. There's even a footswitch input so you can bypass all effects hands-free (footswitch not included). Versatile Inputs and Outputs The ZMX122FX is the swiss army knife that your creative life needs. Not only can you can plug dynamic, condenser, and wireless microphones into the first four channels, but you also get two stereo channel inputs for keyboards, drum machines, and other instruments. Plus, you can easily plug in your MP3 player, CD player, or audio from a DVD player into the CD/TAPE inputs. You also have two AUX sends that you can use to send streams of audio from your mixer to a digital effects unit, stage monitor, or any number of sources. Choose the ZMX122FX as the audio central command for your live performances, home studio, or video suite.

Specifications:

ZMX122FX 8-CHANNEL COMPACT MIXER WITH EFFECTS 16 total inputs including XLR jacks w/ phantom power on ch. 1-4 On-board Alesis digital effects with 256 variations Expanded channel count perfect for small groups or sub-mixes 4 mic input channels with gold-plated XLR and balanced line inputs Two stereo input channels with balanced TRS jacks High headroom circuitry offering extra dynamic range Ultra-low-noise discrete mic preamps 3-band EQ on each channel Footswitch input for effects on/off (sold separately) 2 aux sends per channel for external effects and monitoring 2-bus design with Main and Control Room 1/4” stereo outputs Aux inputs/outputs for external audio source integration Switchable phantom power

Input Channels: Mono channels (Ch. 1 - 4) Microphone Input: Electronically balanced, discrete input configuration Frequency Response: 20 Hz to 22 kHz, +/-1 dB Distortion (THD&N): ?0.005% At +4 dBu, 1 kHz Gain range: 0 dB to 50 dB (Mic) Maximum Voltage Gain: 70 dB Ch. Mic input ? Main Mix out & Tape out, 80 dB Ch. Mic input ? Control Room & Phones, 60 dB Ch. Mic input ? Aux send SNR (Signal to Noise Rate ): ?110 dBu Phantom power (Mic Pin 2 / Pin 3 and Pin 1): +48 V - with switch control Line Input: Electronically Balanced Frequency Response: 20 Hz to 22 kHz, +/-1 dB Distortion (THD&N): ?0.005% at + 4 dBu, 1 kHz Gain Range: 15 dBu to 35 dBu Stereo Channels: (Ch. 5 - 8) Line Input: Electronically Balanced SNR (Signal to Noise Ratio): ?110 dBu Frequency Response: 20 Hz to 22 kHz, +/-1 dB Distortion (THD&N): ?0.005% at +4 dBu, 1 kHz Gain range: -20 dBu to +20 dBu, 60 dB Ch. Line ? Main Mix out Maximum Voltage Gain: 20 dB FX Return ? Main Mix out, 20 dB RCA Tape input ? Main Mix out Impedance Microphone Input: 3.9 kOhms All Other Inputs: 10 kOhms or greater Tape Out: 1 kOhms All Other Outputs: 120 Ohms Equalization Mono Channels: High ±15 dB @ 12 kHz, Mid ±15 dB @ 2.5 kHz, Low ±15 dB @ 80 Hz Stereo Channels: High ±15 dB @ 12 kHz, Mid ±15 dB @ 2.5 kHz, Low ±15 dB @ 80 Hz Alesis DSP Section A/D And D/A Converters: 24-bit DSP Resolution: 24-bit Type of effects: Hall, Room, Vocal & Plate Reverbs Mono & Stereo Delay (max delay time 650 ms) Chorus, Flanger & Reverb modulations, Reverb+Delay, Reverb+Chorus, Reverb+Flanger combinations Presets: 256 Controls: 16 x 16-position preset selector Crosstalk: Adjacent Input ?-80 dB @ 1 KHz (Ch. 1-6) , Input to Output ?-75 dB @ 1 KHz (Stereo L/R, Ch. 1-4, Pan: panned hard left or right) Main Mix Section Tape, Aux, Phones Output Output level: 0 dBu Unbalanced, 1/4" Jacks, Max out +22 dBu Unbalanced, 1/4" jacks Noise (Bus noise): ?-90 dB @ 20 Hz ~ 22 KHz (channel & Main level at 0 dB, other at minimum, DSP mute) Power supply: 18 V, 1500 mA Rated power consumption: 27 W Dimensions (WxLxH): 256mm x 250mm x 72mm Weight: 5.07 lb
