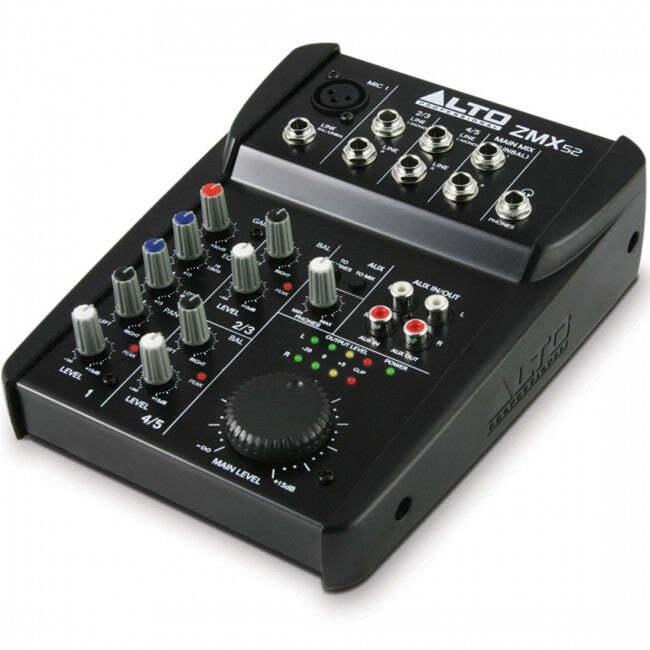

Alto Professional ZMX52 Compact Mixer 5-Ch

The Little Mixer Every Artist and

Engineer Should Have in Their Bag of Tricks

Professional Mixing Features

The ZEPHYR ZMX52 is a 5-channel mixer with all the essential inputs,

outputs, and EQ for solo gigs and multimedia studios. It features

one mono channel with a microphone input (with Phantom Power),

balanced TRS input, and a two-band EQ. It also delivers two stereo

channels with two balanced TRS inputs each. There's even two-track

inputs for things such as audio playback. The ZMX52 is the perfect

compact take-anywhere professional mixer.

Versatile Inputs and Outputs

The ZMX52 is the perfect mixer for quick, easy setups with no

hassle. Not only can you can plug dynamic, condenser, and wireless

microphones into the first channel, but you also get two stereo

channel inputs for keyboards, drum machines, and other instruments.

What's more, you can easily plug in your MP3 player, CD players, or

audio from a DVD player into the CD/TAPE input. But, you also have a

dedicated stereo output to send to a recorder in addition to the

main stereo outputs. Choose the ZMX52 as the audio central command

for your live performances, home studio, or video suite.

High headroom, low noise

Just because the ZMX52 is the smallest, most affordable mixer we

make doesn't mean you have to make sacrifices. This compact mixer

brings the same standard of quality to your performances as our

top-of-the-line models. All Alto Professional ZEPHYR ZMX mixers are

designed with high headroom and ultra low-noise, discrete mic

preamps so you always get the full dynamic range of your mix every

time.

Visualize your mix

We designed every ZEPHYR ZMX mixer with your performance in mind.

Sometimes venues are dark and it can be hard to see what you're

working with. Alto Professional solves this problem by not only

color coding each section of the mixer, but also by using brightly

colored knobs so that you can easily find what you need to adjust

before you ever lay a finger on the mixer. Our blue, red and white

pots are instantly easy to identify in dim lighting. LED indicators

for output level, peak, and phantom power also assist in making sure

that you have multiple visual cues that compliment everything you're

hearing. Specifications:

ZMX52

5-CHANNEL COMPACT MIXER

Six total inputs with a phantom powered XLR jack on channel 1

1/4” Main, Tape, Headphone & Aux outputs for flexible signal routing

Perfect for musicians looking for a compact, capable mixer

Mic input channel with gold plated XLR and balanced line input

Two stereo input channels with balanced TRS jack

High headroom circuitry offering extra dynamic range

Ultra-low-noise discrete mic preamp with Phantom power

Balanced inputs for highest signal integrity and low-noise operation

Warm, natural two-band EQ on mono channel

2-Track inputs w/assignable bus: main mix or headphone out

Highly accurate four-segment bar graph meters

Aux inputs/outputs for external audio source integration

Peak LEDs on each channel

Mono channel (Ch. 1)

Microphone Input: Electronically balanced, discrete input configuration

Frequency Response: 20 Hz to 22 kHz, +/-1 dB

Distortion( THD&N): ?0.005% at +4 dBu, 1 kHz

Gain range: 0 dB to 44 dB (Mic)

Maximum Voltage Gain: 74 dB Ch. Mic Input ? Main Mix out & Tape out, 80 dB Ch.

Mic Input ? Control room & phones

SNR (Signal to Noise Rate): ?110 dBu

Phantom power (Mic Pin2/Pin3 and Pin1): +18 V

Line Input: Electronically balanced

Frequency Response: 20 Hz to 22 kHz, +/- 1 dB

Distortion (THD&N): ?0.005% at +4 dBu, 1 kHz

Gain range: 15 dBu to 30 dBu

Stereo channels (Ch. 2 - 5)

Line Input: Electronically balanced

SNR (Signal to Noise Ratio): ?110 dBu

Frequency Response: 20 Hz to 22 kHz, +/- 1dB

Distortion (THD&N): ?0.005% at +4 dBu, 1 kHz

Gain range: 0 dBu

Maximum Voltage Gain: 30 dB Ch. Line ? Main Mix out

Impedance

Microphone Input: 3.9 kOhms

All Other Input: 10 kOhms or Greater

Tape Out: 1 kOhms

All Other Outputs: 120 Ohms

Equalization

Mono channel: High ±15 dB @ 12 kHz, Low ±15 dB @ 80 Hz

Crosstalk

Adjacent Input: ?-80 dB @ 1KHz (Ch. 1 - 6)

Input to Output: ?-75 dB @ 1KHz (Stereo L/R, Ch. 1-4, Pan: panned hard left or

right)

Main Mix Section

Output level: 0dBu Unbalanced, 1/4" Jacks

Max out: +22dBu Unbalanced, 1/4" Jacks

Noise (Bus noise): ?-90 dB @ 20 Hz - 22 KHz (channel & Main level at 0 dB, other

at minimum, DSP mute)

Power and Dims

Power Supply: 18 V, 500 mA

Rated Power Consumption: 9 W

Dimensions (WxLxH): 128.1mm x 204mm x 38mm

Weight: 1.65 lb
