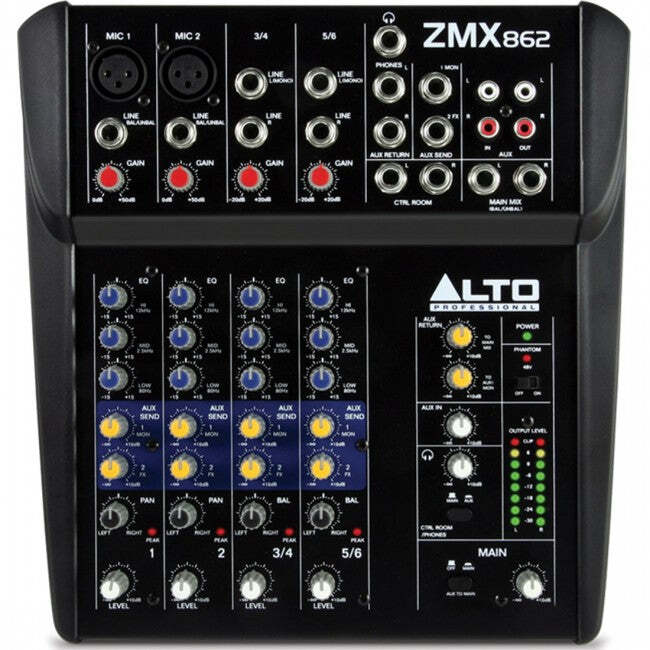

Alto Professional ZMX862 Compact Mixer 6-Ch

Professional-Grade Mixing With a Small

Footprint

Professional-Grade Mixing With a Small Footprint

The ZMX862 is a 6-channel, 2-bus mixer with the right amount of

inputs, outputs, routing, and EQ for more intimate live performance

reinforcement situations. Features two microphone inputs, each with

with Phantom Power, the ZMX862 also has a three-band EQ, two aux

sends per-channel for external effects and monitoring, and even two

track inputs for things such as audio playback. The ZMX862 is a

perfect, take-anywhere professional mixer.

Versatile Inputs and Outputs

The ZMX862 is a step up from our massively popular ZMX52 that adds

more inputs and an extra band of EQ as well as a switch for phantom

power. Not only can you plug dynamic, condenser, and wireless

microphones into the first two channels, you also get two stereo

channel inputs for keyboards, drum machines, and other instruments.

Plus, you can easily plug in your MP3 player, CD player, or audio

from a DVD player into the CD/TAPE inputs. But, you also have two

AUX sends that you can use to send streams of audio from your mixer

to a digital effects unit, stage monitor, or any number of

destinations. Choose the ZMX862 as the audio central command for

your live performances, home studio, or video suite and be ready for

any audio curveball.

High Headroom, Low Noise?

Just because the ZMX862 is compact, portable and affordable doesn't

mean you have to make sacrifices. This compact mixer brings the same

standard of quality to your performances as our top-of-the-line

models. All Alto Professional ZMX mixers are designed with high

headroom and ultra low-noise, discrete mic preamps so you always get

the full dynamic range of your mix every time. Pristine sound. No

compromises.

Visualize Your Mix

We designed every ZMX mixer with your performance in mind. Sometimes

venues are dark and it can be hard to see what you're working with.

Alto Professional solves this problem by not only color coding each

section of the mixer, but also by using brightly colored knobs so

that you can easily find what you need to adjust before you ever lay

a finger on the mixer. Our blue, red, yellow and white pots are

instantly easy to identify in dim lighting. LED indicators for

output level, peak, and phantom power also assist in making sure

that you have multiple visual cues that compliment everything you're

hearing. Specifications:

ZMX862

6-CHANNEL COMPACT MIXER

12 total inputs including XLR jacks w/ phantom power on ch. 1 & 2

Expanded channel count perfect for small groups or sub-mixes

High headroom circuitry offering extra dynamic range

Ultra-low-noise discrete mic preamps

2 aux sends per channel for external effects and monitoring

3-band EQ on each channel

Two stereo input channels with balanced TRS jacks

Aux inputs/outputs for external audio source integration

Switchable phantom power

Input Channels: Mono channels (Ch. 1 - 2)

Microphone Input: Electronically balanced, discrete input configuration

Frequency Response: 20 Hz to 22 kHz, +/-1 dB

Distortion (THD&N): ?0.005% at +4 dBu, 1 kHz

Gain range: 0 dB to 50 dB (Mic)

Maximum Voltage Gain: 70 dB Ch. Mic Input?Main MIx out & Tape out, 80 dB Ch. Mic

input?Control room & Phones, 60 dB Ch. Mic input?Aux send

SNR (Signal to Noise Ratio): ?110 dBu

Phantom power (Mic Pin 2 / Pin 3 and Pin 1): +48 V - with switch control

Line Input: Electronically Balanced

Frequency Response: 20 Hz to 22 kHz, +/-1 dB

Distortion (THD&N): ?0.005% at + 4 dBu, 1 kHz

Gain Range: 15 dBu to 35 dBu

Stereo Channels: (Ch. 3 - 6)

Line Input: Electronically Balanced

SNR (Signal to Noise Ratio): ?110 dBu

Frequency Response: 20 Hz to 22 kHz, +/-1 dB

Distortion (THD&N): ?0.005% at + 4 dBu, 1 kHz

Gain range: -20 dBu to +20 dBu, 60 dB Ch. Line ? Main Mix out

Maximum Voltage Gain: 20 dB FX return ? Main Mix out, 20 dB RCA Tape input ?

Main Mix out

Impedance

Microphone Input: 3.9 kOhms

All Other Inputs: 10 kOhms or greater

Tape Out: 1 kOhms

All Other Outputs: 120 Ohms

Equalization

Mono Channels: High ±15 dB @ 12 kHz, Mid ±15 dB @ 2.5 kHz, Low ±15 dB @ 80 Hz

Stereo Channels: High ±15 dB @ 12 kHz, Mid ±15 dB @ 2.5 kHz, Low ±15 dB @ 80 Hz

Main Mix Section

Tape, Aux, Phones Output

Output level: 0 dBu Unbalanced, 1/4" jacks, Max out +22 dBu Unbalanced, 1/4"

jacks noise (Bus Noise): ?-90 dB @ 20 Hz - 22 kHz (channel & Main level at 0 dB,

other at minimum, DSP mute)

Power supply: 18 V, 1500 mA

Rated Power Consumption: 18 W

Dimensions (WxLxH): 202mm x 250mm x 58mm

Weight: 3.75 lb
