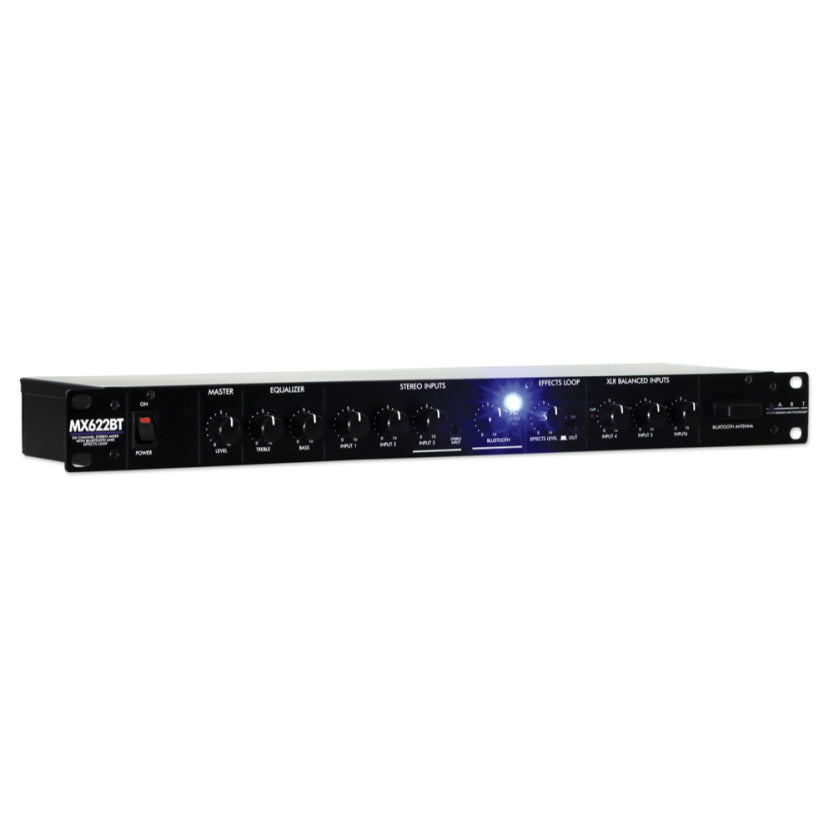

ART MX622BT Six Channel Stereo Mixer with Bluetooth and Effects Loop

4.6 · 870+ Google reviews

Sale

$486.95

~~$539.95~~ $486.95 Save $53.00 (10%)

Sale Sold out

Taxes included. Shipping calculated at checkout.

Authorised-dealer price · Price-match promise

Make 4 interest-free payments of $121.74 with Afterpay

or pay nothing today with Zip

Sold out online — but we can often order it in. Call 03 4151 5751 or send us a message and we’ll track one down or suggest the closest in-stock alternative.

Free shipping over $150 Returns & warranty Authorised ART (Applied Research & Technology) dealer Warranty included Finance available Price-match promise Talk to our experts

SKU:ARTP_MX622BT

View full details

The full story

Description

The MX622BT Six Channel Stereo Mixer, with BLUETOOTH and Effects Loop, is a versatile single-unit rack mixer combining three balanced microphone or line level inputs with three stereo line inputs, plus a stereo Bluetooth input into a single stereo line level mix. Each mono balanced XLR input includes fully variable Input gain, Mic/Line switch, Clip indicator, and selectable 15 Volt Phantom power. Three stereo line level inputs are also provided via RCA type jacks with separate Level controls for each stereo pair. The front panel also has a 3.5mm input for portable audio device input. The Bluetooth input supports Bluetooth 5.0 and has its own level control and Pairing/ ON/OFF switch. An external effects loop section provides a mono Send from the three Mic/Line channels to external equipment and stereo Returns with Effects Level and In/Out switch. Stereo Record output RCA jacks provide full-level signal of the entire mix at all times. Main outputs are stereo balanced 1/4-inch TRS with Master Level and full range Bass/Treble equalization. The built-in power supply and single high 19-inch rack mount format allows for easy installation and reliable operation.

Features

Bluetooth 5.0 receiver

Three balanced XLR inputs with separate Mic/Line switch, Level control and Clip Indicator

Three pairs of RCA stereo inputs with separate Level controls

Selectable 15 Volt Phantom power for each Mic channel

Balanced ¼-inch TRS Main outputs with Master Level control

Versatile Bass and Treble equalisation on Main outputs

Front TRS stereo 3.5mm Input jack

Stereo Record Out RCA jacks

Effects Loop with Effects Level control and In/Out switch

¼-inch Effects Send with stereo Returns

Internal power supply

Solid metal case

Specifications

Input Connections

XLR-F balanced (3), ¼-inch unbalanced (2), RCA (6), 3.5mm balanced (1)

Output Connections

1/4-inch TRS balanced (2), ¼-inch unbalanced (1), RCA (2)

Input Impedance

600/22K Ohms Mic/Line XLR inputs, 10K Ohms RCA inputs, 22K Ohms, 1/4-inch EFX Returns

Output Impedance

50 Ohms 1/4-inch Main outputs, 1K Ohms RCA Record outputs, 100 Ohms EFX output

Maximum Input Level

-10dBu/+20dBu Mic/Line XLR inputs, +20dBu RCA line inputs, +20dBu EFX inputs

Maximum Output Level

+24dBu balanced Main outputs, +20dBu RCA Record outputs, +20dBu EFX output

Phantom Power

+15 Volts DC, regulated low noise

Maximum Gain

56dB/26dB Mic/Line, 26dB RCA inputs

Signal to Noise Ratio

>90dB typical

THD

<1% typical

Equalizer Range

+/-12dB @ 100Hz & 10KHz

Bluetooth

v5.0, up to 30M range, Class 2 device

Power Requirements USA:

105 to 125 VAC / 50-60Hz, 15 Watts typical. Export units configured for country of destination

Dimensions (HxWxD)

44.45 mm x 483mm x 152mm

Weight

2.8kg
