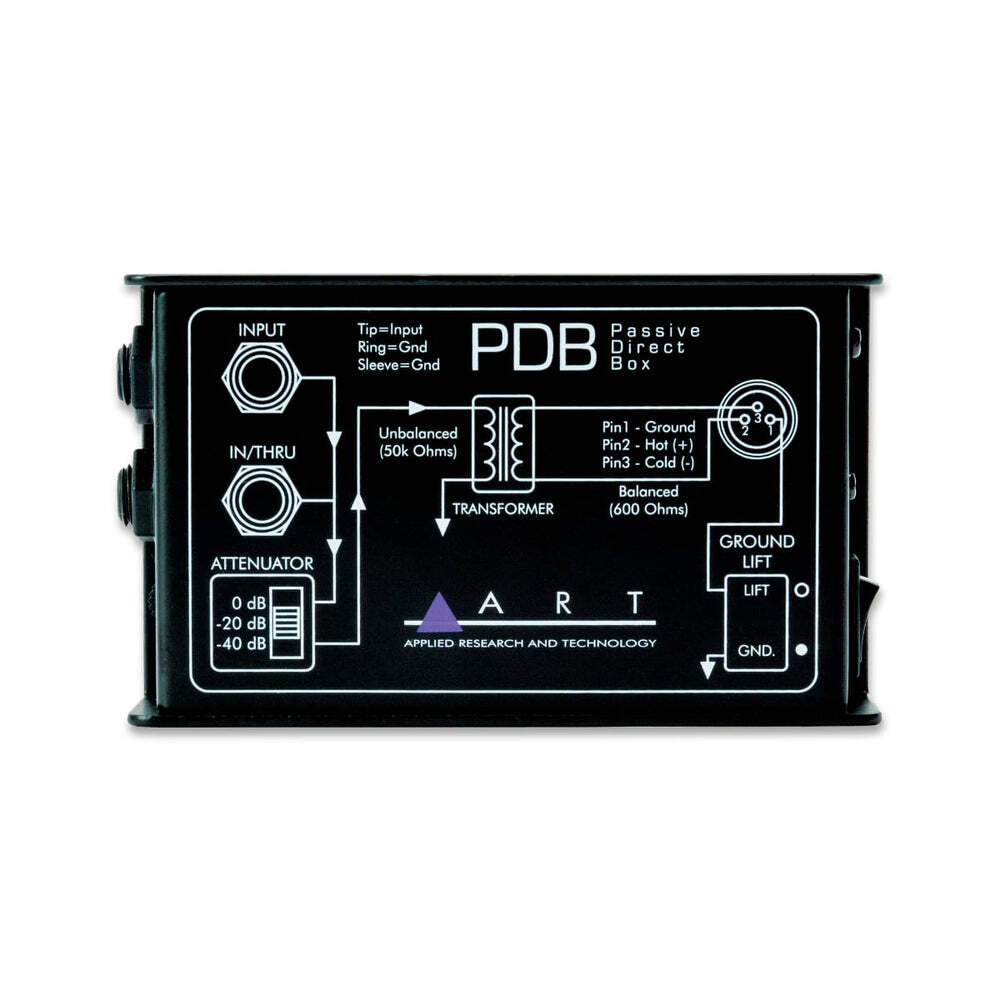

ART PDB Passive Direct Box

Name: ART PDB Passive Direct Box
Brand: ART (Applied Research & Technology)
Price: 79.95 AUD
Availability: OutOfStock

4.6 · 870+ Google reviews

1 1

$79.95

Sale Sold out

Taxes included. Shipping calculated at checkout.

Authorised-dealer price · Price-match promise

Sold out online — but we can often order it in. Call 03 4151 5751 or send us a message and we’ll track one down or suggest the closest in-stock alternative.

Free shipping over $150 Returns & warranty Authorised ART (Applied Research & Technology) dealer Warranty included Finance available Price-match promise Talk to our experts

SKU:ARTP_PDB

View full details

The full story

Description

The PDB Passive Direct Box is a rock solid, roadworthy DI for connection of the outputs of electronic musical instruments (or other audio sources) to the balanced inputs of mixer consoles and other balanced inputs.

The PDB also allows the connection of a music source to an instrument amplifier while simultaneously patching it to a mixer.

PDB Applications:

Electric guitar and bass pick-up output signals The high impedance signal from a guitar or bass guitar pickup is translated by the PDB into a low impedance balanced signal required by mixing consoles.

Keyboards and line level signals The PDB automatically balances and matches the line level outputs of modern electronic keyboards. If you are using a multiple keyboard setup and your keyboards are all plugged into a single instrument amplifier, the PDB can be used to replace individual direct boxes. Simply send the output of the instrument amplifier to the PDB and then to the console (instead of a separate DI box for each keyboard).

DJ console output signals DJ mixers often supply only an unbalanced -10dB signal. The PDB converts this signal to a balanced line-level signal before it reaches the console while providing a convenient method of connector transition with the capability to run long cables.

Speaker level signals The PDBs ability to accept speaker level inputs from a power amplifiers output allows post-amplifier, post eq and effects signal to be fed directly to the console. In this manner, a particular effect or amplifier sound can be sent directly to the mix.

Specifications

Frequency Response

10 Hz 50 kHz +/- 0.5dB @ +4dBu

Output Connections

600 ? XLR Output Jack

Ground Lift

Switchable

Input Attenuation

Switchable (0dB, -20dB, -40dB)

Instrument Input

50k ?

Parallel Link Jack

50k ?

Dimensions

3? x 5? x 2?

The practical bits

Details & dimensions

Brand: ART (Applied Research & Technology)
Type: PA & Pro Audio
