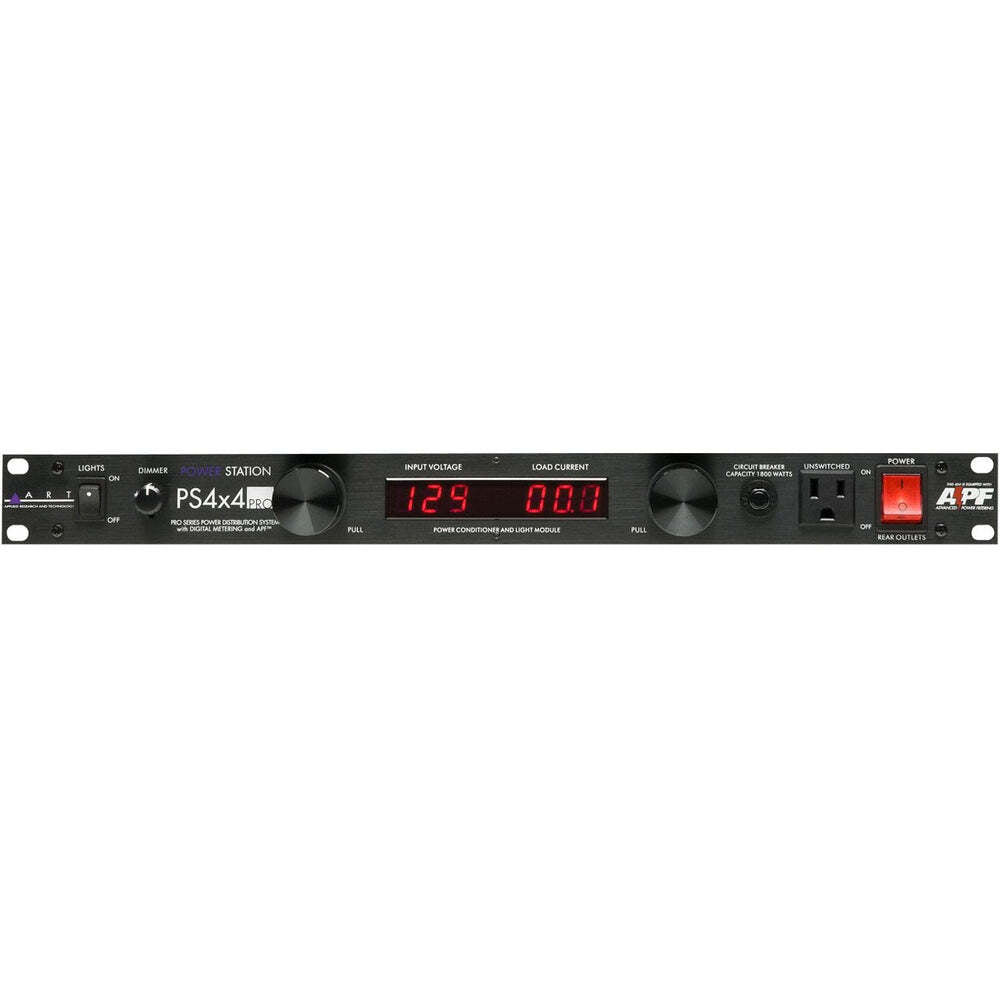

ART PS4x4 PRO Dual LED Metered Power Distribution System

The ART PS4x4 Pro is an advanced power distribution system, that offers dual-LED metering. Part of the ART PRO power distribution series, the PS4x4 Pro offers Advanced Power Filtering (APF™). APF filters digital, dimmer noise, and unwanted unheard high frequencies. The PS4x4 PRO has 8 x rear power outlets with adapter friendly positioning, and 1 x outlet on the front panel.

FEATURES:

APF - Advanced Power Filtering

Pull Out Light Pipes with AutoOff and Dimmer

Easy to read LED Input Voltage and Current Metering

Power Capacity of 1800 Watts

Surge & Spike Protection

EMI & RFI Filtering

8 Rear Outlets with Power Adapter Friendly Positioning

One Front-mounted Unswitched Power Outlet

Rear Mounted Gooseneck Light Source

Presenting the 4x4 PRO SERIES Power Distribution Systems from ART. Built on the foundation of the popular 4x4s, the PRO SERIES are durably constructed, reliable power conditioners for use in many applications. Wherever a power management system is required, the 4x4 PRO SERIES provide the surge protection you need to keep your rack safe from unwanted disruption.

All PRO SERIES models have an additional internal discrete module called APF™ (Advanced Power Filtering) which filters out digital and dimmer hash as well as any high-frequency noise that is above the audio range. Some off-the-shelf add-on modules saturate and lose their filtering effectiveness as the load increases, but by using a high power discrete design we were able to create a filter that stays effective over the full operating range.

By using both Common Mode and Differential Mode topologies in series for the filter design we are able to block virtually all of the unwanted noise that is between the AC line and ground, and also the two sides of the AC line. This has the additional benefit of reducing ground loop problems in your system. High-frequency noise currents in particular are highly attenuated in both directions so that any line noise that could be generated by one of your components is not allowed to get back into your main A.C. wiring so if you use a number of PRO SERIES Power Conditioners in your setup, you can distribute and isolate the noisy components from the sensitive components in your system. Additionally, any signals above 10kHz are filtered from the line with over 40dB of attenuation above 100kHz and beyond.

Every PRO SERIES power conditioner is designed with a power capacity of 1800 watts, surge/spike protection, APF with EMI & RFI filtering, a front-mounted unswitched power outlet and an adjustable rear-mounted gooseneck light source for bright illumination behind the rack. The spacing and alignment of the rear outlets to accommodate various size power plugs and AC adapters.

TECHNICAL SPECIFICATIONS:

For detailed tech specs on the ART PS4x4 PRO please click here.

Need more info on the ART PS4x4 PRO? >>>
