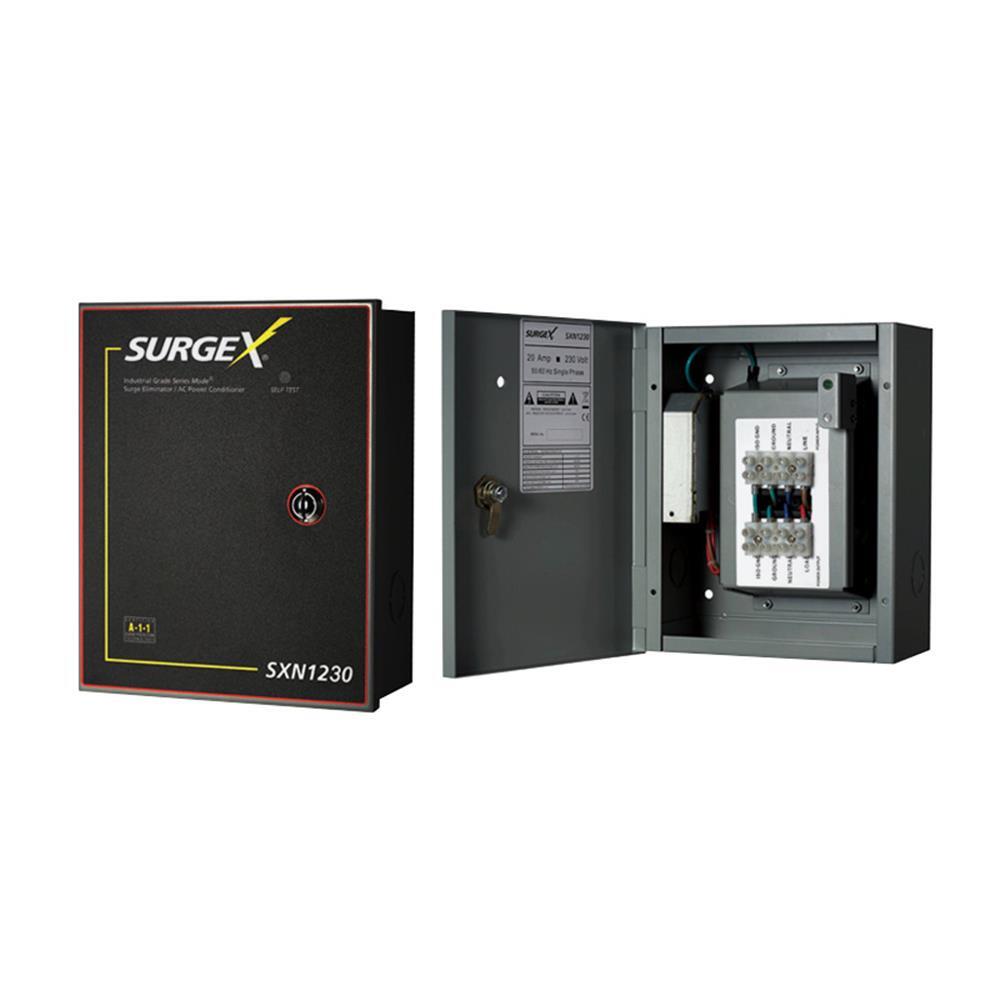

• SX-SXN1230 front
  • ASM surge elim hard-wired SurgeX — view 3
1 2
SurgeX

ASM surge elim hard-wired SurgeX

$1,042.49
$1,042.49
Sold out

Includes GST

Sold out right now. We may be able to order it in. Call or message us and we’ll check with the supplier.
Call 03 4151 5751 Send us a message
Make 4 interest-free payments of $260.63 with Afterpay
or pay nothing today with Zip

Delivery & collection

Standard shipping Free*

Ships once we’ve sourced it. We’ll confirm exact timing with you first.

Conditions apply.

Express shipping $15

1–3 business days depending on location.

Flat rate Australia-wide. Choose Express at checkout.

Click & Collect Free

From our Footscray showroom

Not sure it’s the right one? Talk to a player.

Call 03 4151 5751Send us a message
View full details

Description

SKU SX-SXN1230

THIS PRODUCT IS FOR ONLINE ORDER ONLY. SX-SXN1230 ASM surge elim hard-wired SurgeXBRANCH CIRCUITAdvanced power protection at the service panel Our branch circuit solution is built with professional-grade NEMA magnetic shielding steel enclosures that meet code for use at the service entrance sub-panels and in-ceiling plenums.The SurgeX Branch Circuit product line provides guaranteed surge elimination and conditioning for audio video and mission critical equipment at the service panel. Available in three configurations our unique solutions are built with professional-grade NEMA magnetic shielding steel enclosures that meet code for use at the service entrance sub-panels and in-ceiling plenums.They are engineered with Advanced Series Mode surge elimination and mains power conditioning technologies to provide top-of-the-line protection. Superior to conventional MOV circuitry or MOV-hybrid designs they completely eliminate surge energy up to 6000 volts without producing harmful side effects such as earth contamination or common-mode disturbances. Completely non-sacrificial and never needing reset they provide the most reliable protection available.FEATURES:Steel magnetic shielding enclosureLockable doorSelf-test circuit with visual indicatorEMI/RFI filterlockable doorHard-wired to mains power; must be installed by electricianProtection Level: Advanced Series ModePower Configuration: 20A / 230VSpecificationsLoad Rating: 20 Amps per circuit @ 230 Volts 50Hz/60Hz (single phase)Power Requirement (no load): 3 wattsSurge Let- Through Voltage (6000-volt surge): 0 VoltsIEC/EN: 61643-1Performance Rating: Grade A Class 1 Mode 1EMI/RFI Filter NormalMode (50-ohm load): 40dB@ 100 kHz; 50 dB @ 300 kHz; 50 dB @ 3 MHz; 50dB @ 30 MHzEMI/RFI Filter CommonMode (50-ohm load): 18dB @ 300 kHz; 30 dB @ 1 MHz; 50 dB @ 5 MHz; 50 dB @ 20 MHzMaximum Applied Surge Voltage: 6000 volts*Maximum Applied Surge Current: Unlimited due to current limiting*Maximum Applied Surge Energy: Unlimited due to current limiting*Endurance (C62.41-1991 Category B3 pulses): 1 kV>500000; 3 kV>10000; 6 kV>1000Dimensions: 25.4 x 20.3 x 10.7 cm 10.0 H x 8.0 W x 4.0 DWeight: 4.5Kg (10 lbs)Temperature Range: 5º to 35º CHumidity Range: 5% to 95% R.H. non-condensing
