Behringer 110 VCO/VCF/VCA Eurorack Module

Modular Synthesis

The 80s was the golden age of electronic music. Synthesizers were at their prime and almost every hit song and movie soundtrack at that time had a synth in one form or another. Modular synths have become more and more popular with professionals and enthusiasts over the years and they’re about to get even better.

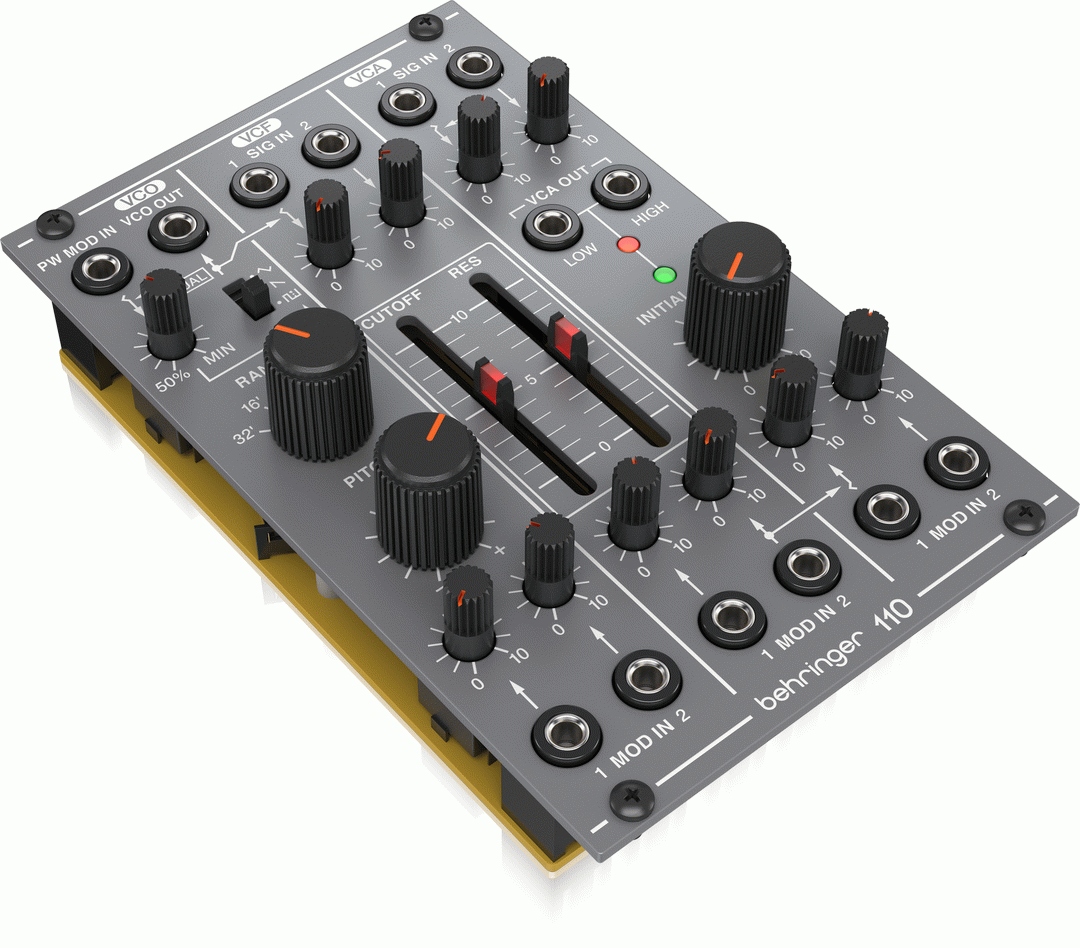

SYSTEM 100 110 VCO/VCF/VCA

This is the Behringer System 100 110 VCO/VCF/VCA Module. An authentic reproduction of the original “System 100M” circuitry from the 80s that can fit in a standard Eurorack case. The best part? It’s at a very affordable price. Mix the 110 in with your existing rig or start your modular synth journey from here. Either way you’re sure to have a lot of fun!

Controlling the Oscillator

The 110 comes with a complete synth voice with an internally patched signal flow for ease of use and to save patching time so you can focus on your music. You can vary the VCO section by selecting one of three waveforms; triangle, ramp and Pulse Width Modulation which can be adjusted by the Mod Manual knob. The VCO also offers pitch and range control knobs as well as one audio output, which can be routed to another source, and two CV inputs.

VCF and VCA

The VCF features cutoff frequency and resonance sliders while the VCA comes with two audio outputs (low/high). Both the VCF and VCA each feature two audio inputs and two CV inputs that allow for other sources to be plugged into the 110, making it a must-have in any modular synth.

Eurorack Ready

Installing the 110 VCO/VCF/VCA is simple as it was designed to fit into a standard Eurorack case. Just connect the power cables to the power supply and mount the module using the included screws. This allows for the 110 VCO/VCF/VCA to be mixed with other synth modules for a truly unique set up.

Whether you’re just getting into modular synths or looking to complete your collection, the 110 VCO/VCF/VCA module from Behringer is a great tool to have when creating amazing music.

Get the 110 VCO/VCF/VCA from your local Behringer dealer today!

Amazing VCO/VCF/VCA module from the '80s

Authentic reproduction of original "System 100M*" circuitry

Complete synth voice with internal patched signal flow for ease of use

VCO features 3 selectable waveforms (triangle, ramp and square with PWM)

VCO offers pitch control over a wide range plus 1 audio output and 2 CV inputs

VCF features cutoff, frequency and resonance controls plus 2 audio inputs and 2 CV inputs

Oscillator PWM with manual and external CV control

VCA features gain control plus 2 audio inputs, 2 audio outputs (low/high) and 2 CV inputs

17 controls and switches give you real-time access to all important parameters

Eurorack specs: 16 HP, 60 mA +12 V, 50 mA -12 V
