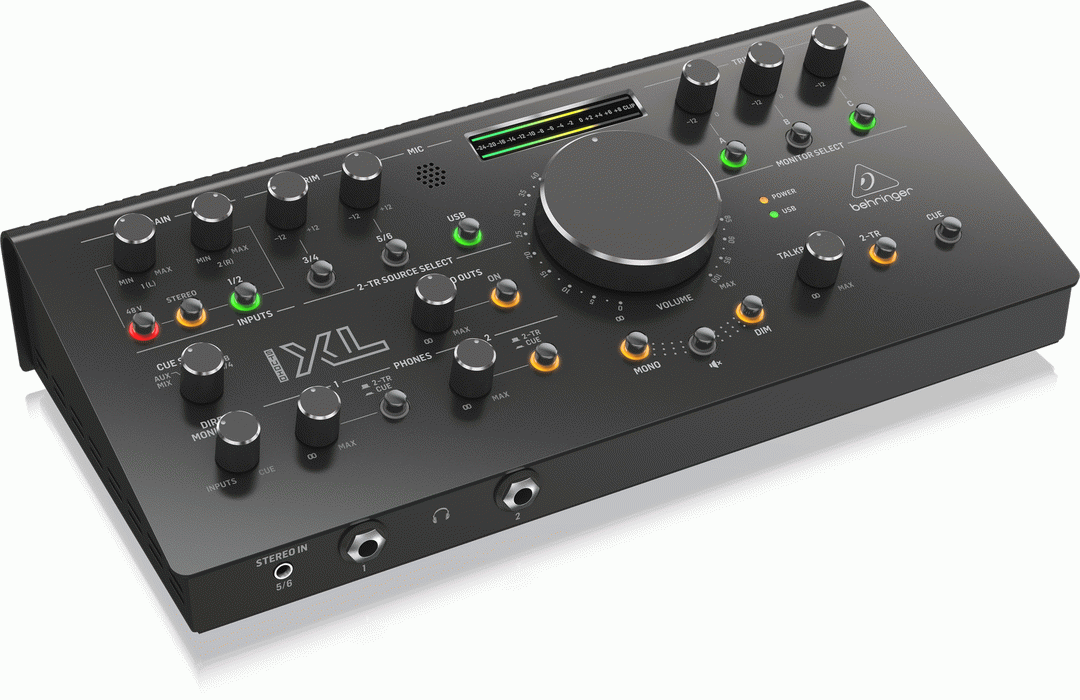

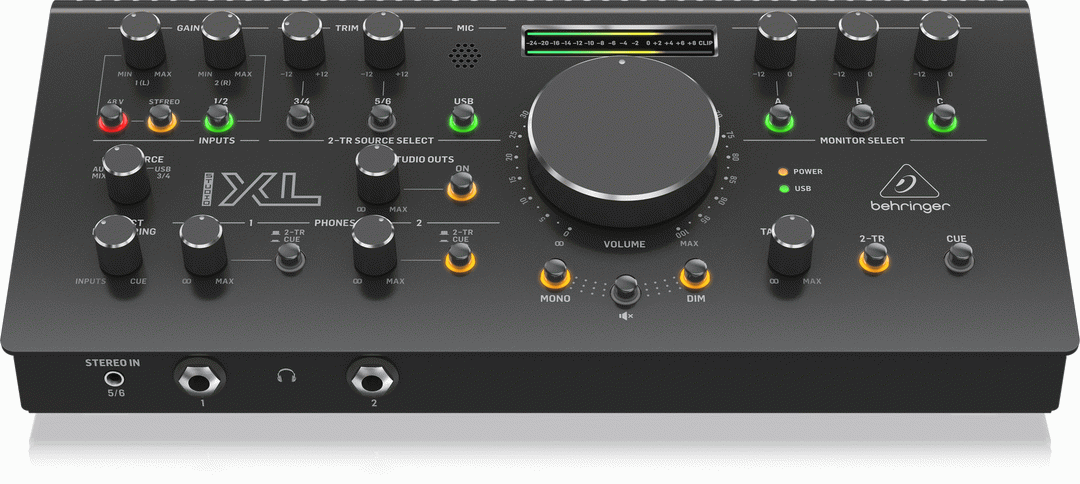

Behringer Studio XL USB Interface Extra Large w/ Monitor Control

High-End Studio Control and Communication Center with Midas Preamps, 192 kHz 2x4 USB Audio Interface and VCA Stereo Tracking

Midas Mic Preamp – Legend Inside!

Did you know that Midas is one of the most recognized brands used by audio professionals around the world? Now you can get the gear the pros use! The STUDIO XL comes with two state-of-the-art Midas microphone preamplifiers with +48?V phantom power, ultra-low noise, high gain and audiophile quality.

The STUDIO XL is the ideal solution for home or professional studios, or as part of a larger setup. Premium, ultra-low noise components and high headroom lets your music shine at its best – this is especially true for one of the most critical sources: Vocals!

Crystal Clear Signal Path at 192 kHz

The STUDIO XL is more than just a monitor controller – we added one of the best USB audio interfaces with the highest possible resolution and lowest latency. Full 192 kHz sampling rate at a clear 24-bit resolution will make you smile listening to the crisp and astonishing sound you’ll get.

With the STUDIO XL, you won’t have to worry about any USB noise or hum. A super-quiet USB I/O with up to 8 dB less noise than other audio interfaces on the market, while the lower output impedance on the STUDIO XL allows for even higher output volume.

VCA-Control – Not Just a Volume Knob

Unlike the typical and inexpensive potentiometers used by our competitors, the STUDIO XL utilizes high-end Voltage Controlled Amplifier (VCA) technology. While conventional monitor controllers directly pass the signal through the volume potentiometer, the STUDIO XL controls a separate high-precision amplifier circuit that drives the volume change. This gives perfect stereo and phase coherency, precision level adjustment, accurate sound and no quality degradation over time.

Our really big dial allows you to make precise adjustments with ease and set levels fast and accurately – critical to the final sound when it comes to mixing and mastering.

Specifications

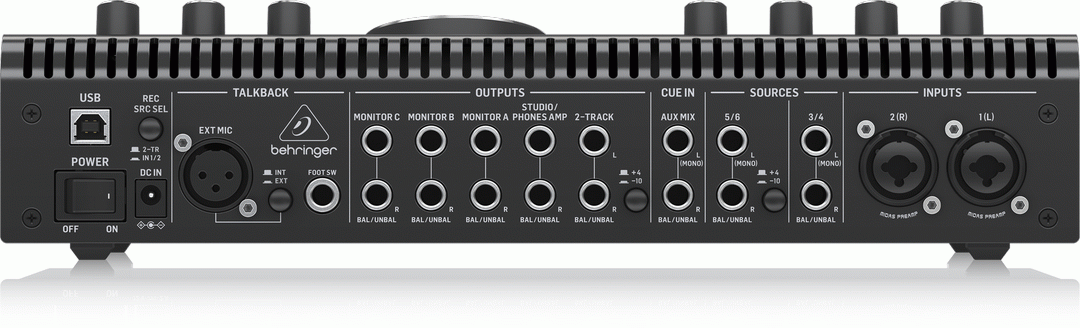

Inputs

Inputs

6

Preamps

2 x Midas designed

Type

2 x XLR / TRS combo connector (mic/line)

Impedance

Mic: 3 k? / Line: 1 M?

Line inputs

4 x 1/4" TRS, balanced or unbalanced, +4/-10 dB (Input 5/6 only)

1 x 1/8" TRS stereo (input 5/6)

Maximum input level

+22 dBu

Talback input

1 x XLR

Footswitch

1 x 1/4" TRS

Outputs

Outputs

5 stereo

Line outputs

10 x 1/4" TRS, balanced or unbalanced

Headphone outputs

2 x 1/4" TRS stereo

Maximum output level

+22 dBu

USB

Type

Class compliant USB 2.0, type B

Supported operating systems

Windows 10/ Mac OS X 10.14 or higher

Audio

2 in / 4 out

Converter resolution

24-bit

Supported sample rate

44.1, 48, 88.2, 96, 192 kHz

Talkback Section

Output level

-? to +10 dB

Talback level

-? to max

Takback destination

2 track or cue

Talkback input

Internal (mic) or external (XLR)

Footswitch

Activates talkback

Controls

Phantom power

+48 V (inputs 1/2)

Volume

High-precision stereo tracking VCA volume control 0 - 100%

Playback controls

Mono, Mute, Dim

Monitor select

A, B, C

Input 1/2

48 V on/off, Stereo on/off, 1/2 (channel select) on/off

Input 3/4

-12 to +12 dB Trim, 3/4 (channel select) on/off

Input 5/6

-12 to +12 dB Trim, 5/6 (channel select) on/off

USB input

USB (channel select) on/off

Muted

-60 dB

Dim

-20 dB

Cue source

Aux Mix, Source, USB 3/4

Studio outs

-? to max, on/off

Direct monitoring

Inputs to Cue blend

Phones 1/2

Level control -? to max, individual source select

System

Frequency response

20 Hz to 20 kHz (±0.5 dB)

Signal-to-noise ratio

<-90 dBu RMS, un-weighted

Distortion (THD+N)

<0.01% @ 1 kHz, unity gain, 4 dBu input

Crosstalk

<-60dB @ 1 kHz, unity gain, 4 dBu input

Power Requirements

Mains voltage

100-240 V, 50/60 Hz

Power supply

12 V DC 2000 mA

Power consumption

18 W max

Physical

Standard operating temperature range

5° C – 45° C (41° F – 113° F)

Dimensions (H x W x D)

80 x 328 x 163 mm (3.15 x 12.91 x 6.42")

Weight

1.8 kg (3.97 lbs)
