Description

SKU DI1

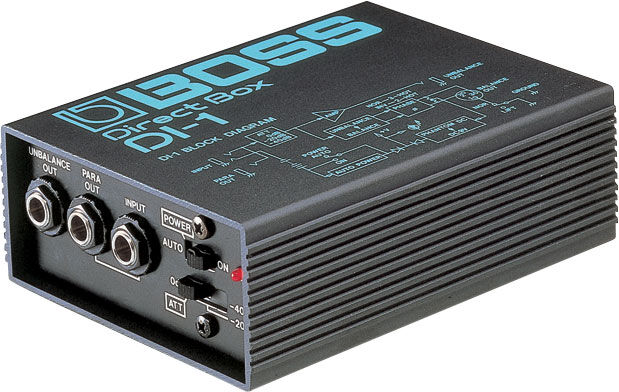

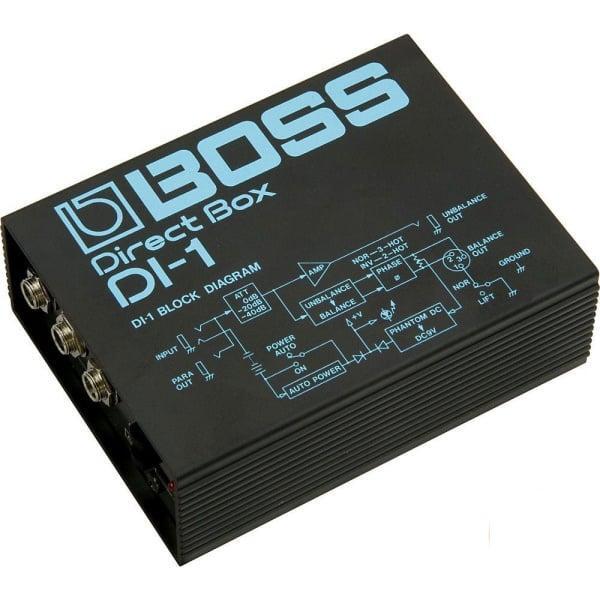

The BOSS DI-1 Active Direct Injection Box is an essential tool for any musician seeking to deliver a pristine sound quality while connecting instruments to a mixing console. With its ability to transform high-impedance, unbalanced outputs into low-impedance, balanced inputs, the DI-1 ensures your music retains its clarity and integrity in any live or studio setting.

Features:

  • Active direct box with superior frequency response compared to conventional transformers
  • Operates on a 9-volt battery or can be powered via phantom power from a mixer
  • Equipped with phase reversal and ground lifting switches for optimal performance
  • Three input level switches to accommodate various signal levels
  • Sturdy, compact design that is easy to transport and set up

Specifications:

Frequency Response
20 Hz to 40 kHz (+0.5/-1 dB)
Nominal Input Level
-20/0/+20 dBu (selectable)
Max. Input Level
+45 dBu (1 kHz), 390 Vp-p
Max. Output Level
+8 dBu (Balanced: 600 ohms load, Unbalanced: 50 k ohms)
Residual Noise
-110 dBu or less (IHF-A)
Total Harmonic Distortion
0.05 % or less
Power Supply
DC 9 V: Dry Battery (6F22/6LR61 type), or Phantom Power: DC 24 V

Whether you're performing live or recording in the studio, the BOSS DI-1 Active Direct Injection Box is designed to meet the demands of professionals, ensuring your sound is always at its best.
