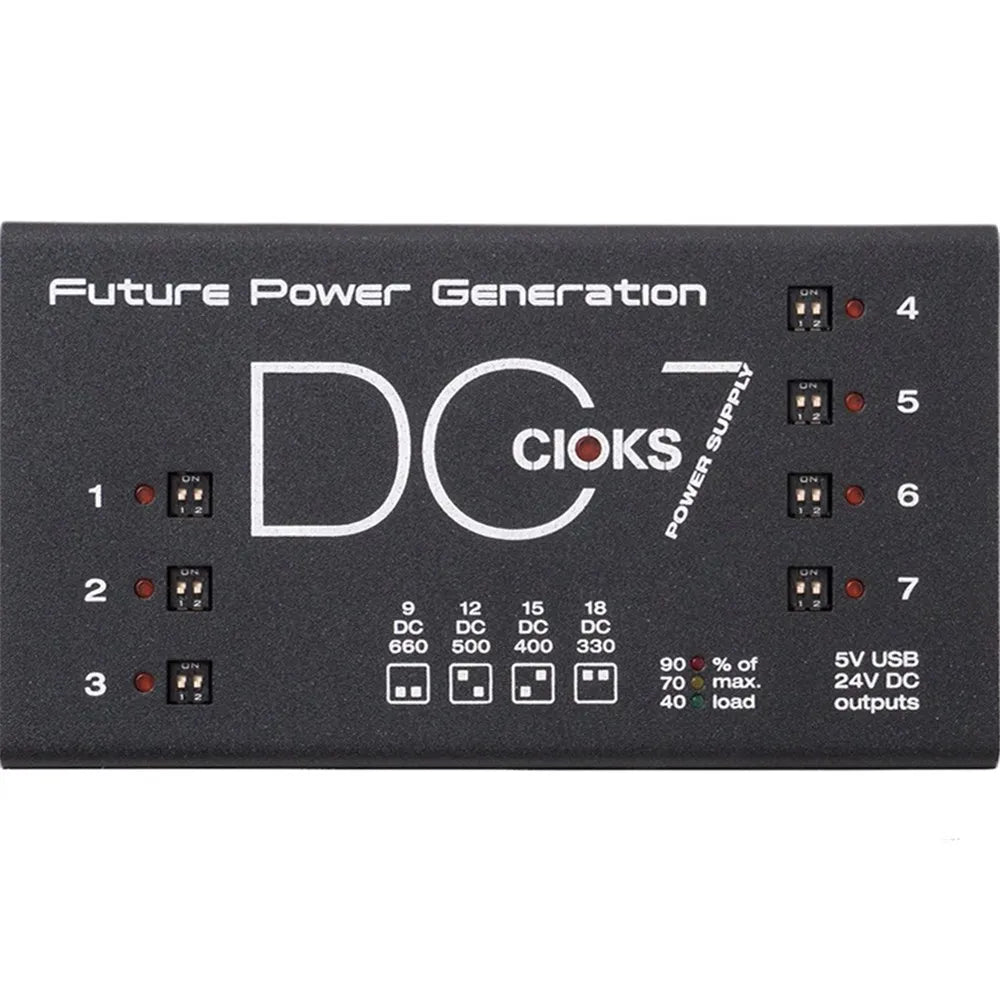

Cioks DC7 Power Supply with 7 Isolated DC Outlets, 5V USB, 24V DC Aux, 48W Total Output Power, Includes Flex Cables and Mounting Hardware

CIOKS DC7 Power Supplies The groundbreaking DC7 has a one-inch (25,4mm) profile and weighs 1.1 pound (500 grams) thanks to the pure 2-stage switch-mode technology inside. The profile may be low but the power ratings are certainly not – the DC7 puts out a maximum of 48W and allows the user to connect multiple high-current effects such as devices from Effectrode, Line 6 and Eventide without noise of any kind. Description The DC7 is the thinnest, most flexible and most unique power supply for powering effect pedals currently available. The groundbreaking DC7 has a one-inch (25,4mm) profile and weighs 1.1 pound (500 grams) thanks to the pure 2-stage switch-mode technology inside. The profile may be low but the power ratings are certainly not – the DC7 puts out a maximum of 48W and allows the user to connect multiple high-current effects such as devices from Effectrode, Line 6 and Eventide without noise of any kind. CIOKS DC7 features 7 isolated DC-outlets for effect pedals each with four selectable voltages. Each of the outlets can put out 6W which corresponds to 660mA of current at 9V. Additionally the DC7 has also a 5V USB outlet and an auxiliary 24V outlet. The DC7 is expandable with CIOKS 4 Expander, CIOKS 8 Expander and the Crux for more isolated outlets and even more flexibility. Combined with the large set of CIOKS Flex cables included we are confident in that this is the most flexible, noise-free solution in the market for powering pedalboards with a multitude of different pedals. DC7 is also available with the CIOKS 8 Expander and a large set of Flex cables included. This is called the Superpower Bundle and is widely available at retailers. Features Groundbreaking 1-inch profile (25,4mm) 2-stage switch-mode power supply topology Ultra-low noise achieved by multistage filtering 7 isolated DC-outlets, 6W each 660mA at 9V DC on each outlet 4 selectable voltages on each outlet 5V USB outlet with max. 1A 24V DC auxiliary outlet with max. 2A Individual power limit LED on all outputs Built-in true power meter showing the total load Global overload status LED Universal mains input voltage 90 to 265V AC Total maximum output power 48W Mounting hardware for Pedaltrain and Templeaudio boards included Compatible with CIOKS GRIP for drill-free mounting on Pedaltrain boards* 12 Flex cables included Expandable with CIOKS 4*, CIOKS 8* and Crux* Weighs 1.1 lbs. (500 grams) Designed in Denmark, assembled in Poland Specifications Mains input: 90-265V AC universal Outlet 1-7: 9V DC / 660mA or 12V DC / 500mA or 15V DC / 400mA or 18V DC / 330mA each USB outlet: 5V DC, max 1A AUX outlet: 24V DC, max 2A Total maximum output power: 48W Size: 160 x 88 x 25,4mm excl. rubber feet Weight: 500g / 1.1lbs Warranty: 5 years worldwide What's in the box CIOKS DC7 power supply Mains power cord Standard Flex type 1 – black with 5,5/2,1mm centre negative DC plug x7 Standard Flex type 2 – red with 5,5/2,1mm centre positive DC plug x1 Standard Flex type 4 – green with 5,5/2,5mm centre positive DC plug x1 Standard Flex type 5 – black with tip positive 3,5mm Jack plug x1 Split Flex type 1 – powers two pedals of a single outlet x1 3-way Daisy chain Flex type 1 – powers three pedals of a single outlet x1 Mounting hardware: 2 screws and a hex-key Manual Product sheet (drill guide) CIOKS sticker sheet Flex guide
