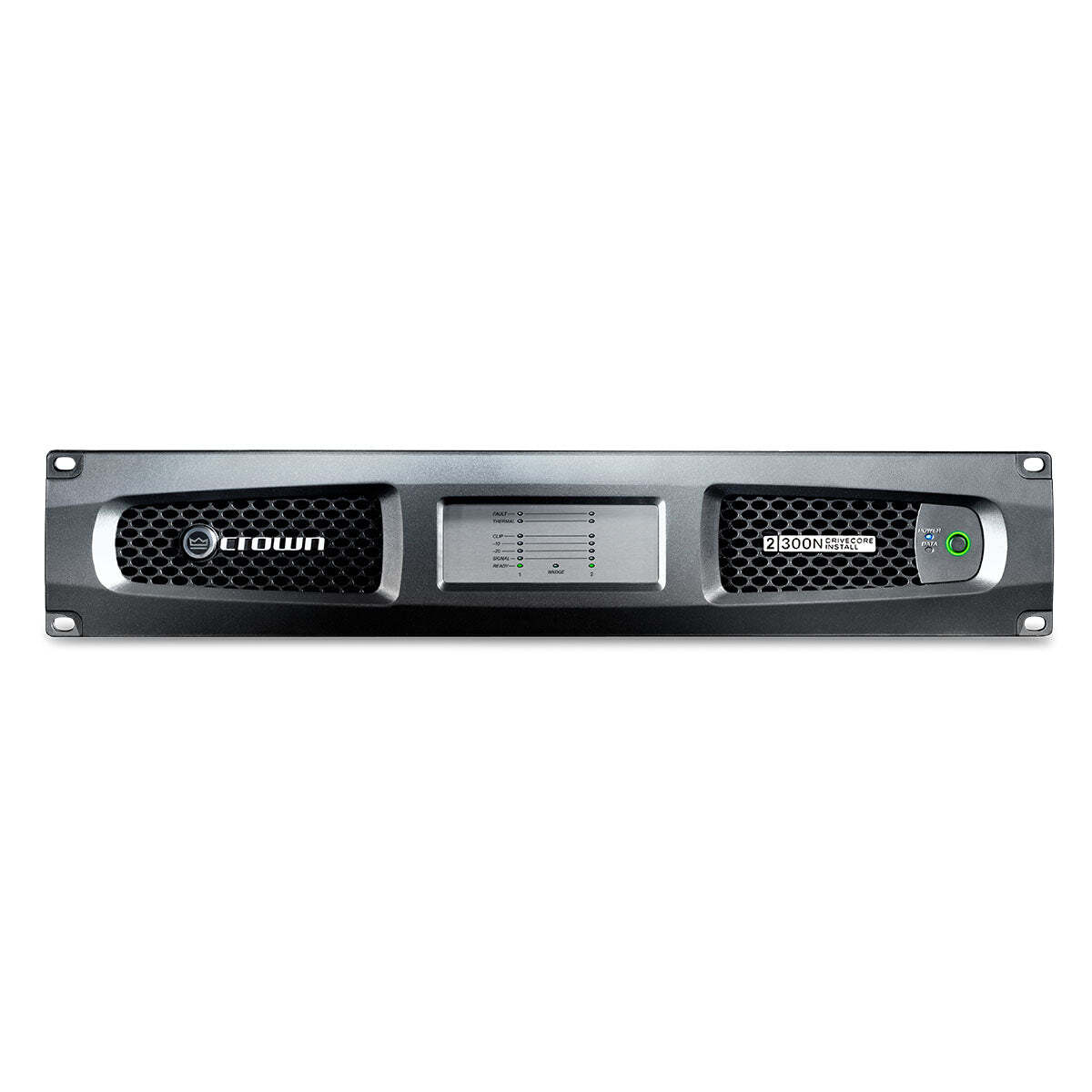

Crown DCi 2 300 Power Amplifier 2-Channel 300W @ 4 ohms w/ BLU Link

The DriveCore install series amplifiers is a complete line of high performance installation amplifiers based on the proprietary DriveCore technology. DCi Series amplifiers are designed, engineered and manufactured to the industry’s highest quality standards, and provide system integrators with the advanced features and flexibility required for challenging 21st century installed sound applications. Versatile, compact and highly energy-efficient, DCi Series amplifiers continue the unbroken Crown tradition of leadership in professional and commercial power amplifier technology. This amplifier is EN 54-16 Compliant for life safety applications.

Features

ANALOG & DIGITAL INPUTS – With digital audio transport via HARMAN’s proprietary BLU-Link, plus balanced analog inputs, DCi gives you a tremendous audio advantage – at a much lower cost. The priority input router allows you to specify a primary input, and if audio is lost the amp automatically switches to the other input.

NETWORK MONITORING & CONTROL – Better monitoring, control and audio manipulation with the HiQnet™ protocol that’s over standard TCP/IP. Remotely see how all networked DCi amplifiers are performing and control them as needed. In addition, this allows Audio Architect software and the Powered by Crown app to work with DCi amplifiers.

PROGRAMMABLE GENERAL PURPOSE INPUT/OUTPUT PORTS – GPIO ports can be configured in many different ways, such as volume controls, recall presets, or to report errors to a master computer.

DIGITAL SIGNAL PROCESSING – DSP capabilities include the following:

LevelMAX Limiters

Input/Output EQ

Crossover

Delay

Matrix Mixer

Speaker Line Monitoring

EN 54-16 Compliant for Life Safety Applications - Part 16 of the European Union’s (EU) EN 54 standard for fire detection and alarm systems has a specific requirement for voice alarms, which output messages in the form of a voice message rather than a traditional siren. This amplifier is certified as part of an EN 54-16 VACIE*, meeting the stringent requirements of a life safety system to serve the needs of hospitality, large venue and other markets.

Specifications

Frequency Response (8?, 20Hz - 20kHz)

±0.25dB

BLU Link Input Signal to Noise Ratio (A-Weighted)

>104dB

Total Harmonic Distortion (at full rated power, 20Hz - 20kHz)

0.35%

Voltage Gain

34dB

Damping Factor (20Hz to 100Hz)

>1000

Input Impedance (nominal balanced, unbalanced)

10k?, 5k?

Maximum Input Level before Compression

+20dBu

Load Impedance (Stereo/Dual Mode)

2? - 16?; 70Vrms and 100Vrms

Load Impedance Bridge Mono

4? - 16?; 140Vrms and 200Vrms

Cooling

Continuously variable speed forced air, front to back airflow

Maximum Fan Noise (re dBA SPL @ 1M)

45

Required AC Mains (±10%)

100V-240V ~ 50/60Hz

Power Connector

15A IEC

Dimensions

19" x 3.5" x 14.25" (48.3cm x 8.9cm x 35.63cm)

Weight

18.8lbs (8.53kg)
