DPA Microphones

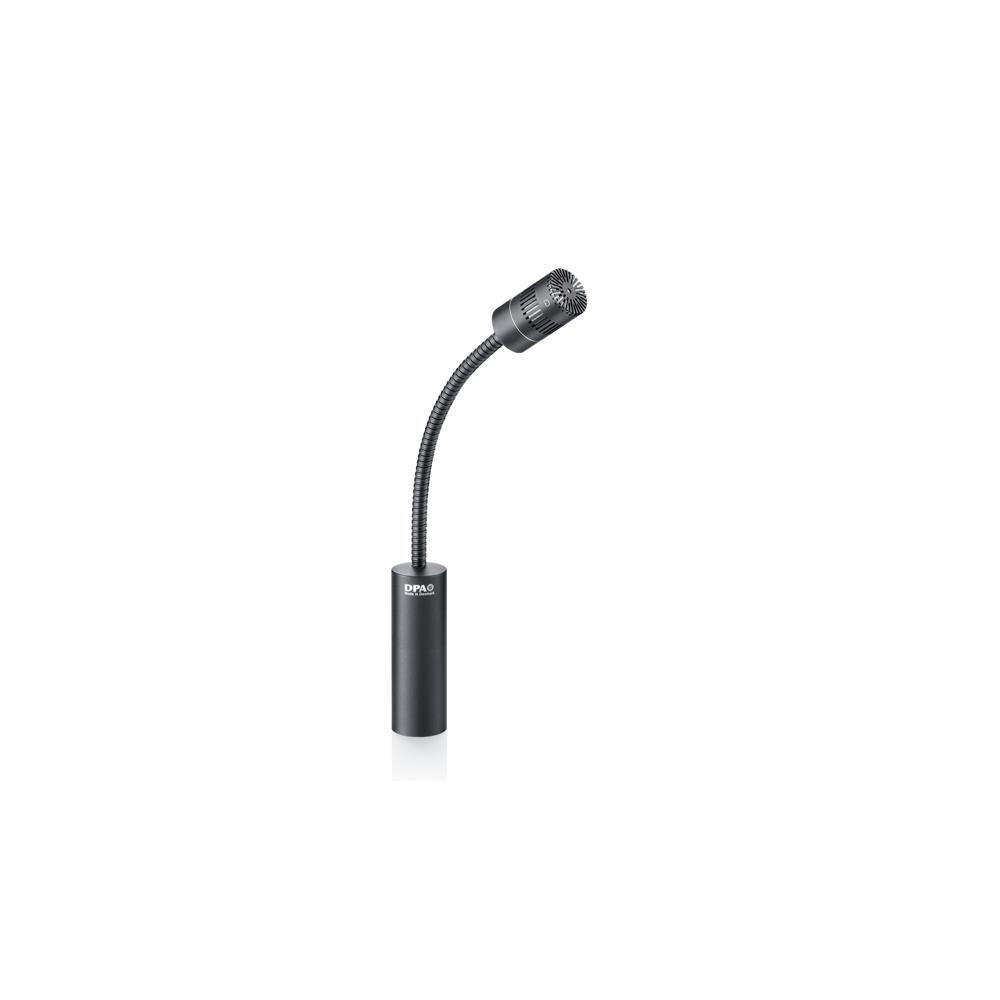

DPA d:dicate4011F Cardioid Microphone 15 cm Boom

$3,384.99
$3,384.99
Sold out

Includes GST

Sold out right now. We may be able to order it in. Call or message us and we’ll check with the supplier.
Call 03 4151 5751 Send us a message

Afterpay and Zip are available at checkout on orders $100–$2,000.

Delivery & collection

Standard shipping Free*

Ships once we’ve sourced it. We’ll confirm exact timing with you first.

Conditions apply.

Express shipping $15

1–3 business days depending on location.

Flat rate Australia-wide. Choose Express at checkout.

Click & Collect Free

From our Footscray showroom

Not sure it’s the right one? Talk to a player.

Call 03 4151 5751Send us a message
View full details

Description

SKU DP-4011F15

THIS PRODUCT IS FOR ONLINE ORDER ONLY. SpecificationsDirectional pattern: CardioidPrinciple of operation: Pressure gradientCartridge type:Pre-polarized condenserFrequency range: 20 Hz - 20 kHzFrequency range ± 2 dB at 30 cm: 40 Hz - 20 kHzSensitivity nominal ± 2 dB at 1 kHz: 10 mV/Pa; -40 dB re. 1 V/PaEquivalent noise level A-weighted: Typ. 18 dB(A) re. 20 ÃŽ¼Pa (max. 20 dB(A))S/N ratio (A-weighted) re. 1 kHz at 1 Pa (94 dB SPL): Typ. 76 dB(A)Total Harmonic Distortion (THD): 40 dBPower supply (for full specifications): 48 V Phantom power (±4 V)Current consumption: 3.5 mAConnector: XLR-3M. Pin 1: shield Pin 2: signal + phase Pin 3: - phaseColor: Matte blackMicrophone diameter: 19 mm (0.75 in)Capsule diameter: 19 mm (0.75 in)Microphone length: Capsule: 23 mm (0.9 in) Boom poles: 15 cm 30 cm 45 cm 75 cm 120 cmOutput voltage RMS: 2.2 VPolarity: +V at Pin 2 for positive sound pressureTemperature range: -40 to 45 °C (-40 to 113 °F)Relative Humidity (RH): Up to 90%
