Eikon 4-Channel Headphone Amplifier EHPAMP4 with Stereo Inputs and Individual Level Controls

Name: Eikon 4-Channel Headphone Amplifier EHPAMP4 with Stereo Inputs and Individual Level Controls
Brand: Eikon
Price: 158.95 AUD
Availability: InStock

$158.95

~~$199.00~~ $158.95 Save $40.05

Sale

Includes GST

In stock at our warehouse. Order now and it ships in 1–3 business days with tracking.

Not on the Footscray shop floor. We’ll bring it in for you to collect in 1–3 business days.

Make 4 interest-free payments of $39.74 with Afterpay

or pay nothing today with Zip

Delivery & collection

Standard shipping Free*

Dispatched in 1–3 business days with tracking, then 4–9 business days depending on location.

Conditions apply.

Express shipping $15

1–3 business days depending on location.

Flat rate Australia-wide. Choose Express at checkout.

Click & Collect Free

From our Footscray showroom

It’s not on the shop floor yet, so we’ll bring it in and email you when it’s ready (usually 1–3 business days).

4.6 from 910+ Google reviews of Scarlett Music (opens in a new tab)
Returns & warranty
Price-match promise
Authorised Eikon dealer

Not sure it’s the right one? Talk to a player.

Call 03 4151 5751 Send us a message

View full details

Description

SKU EHPAMP4

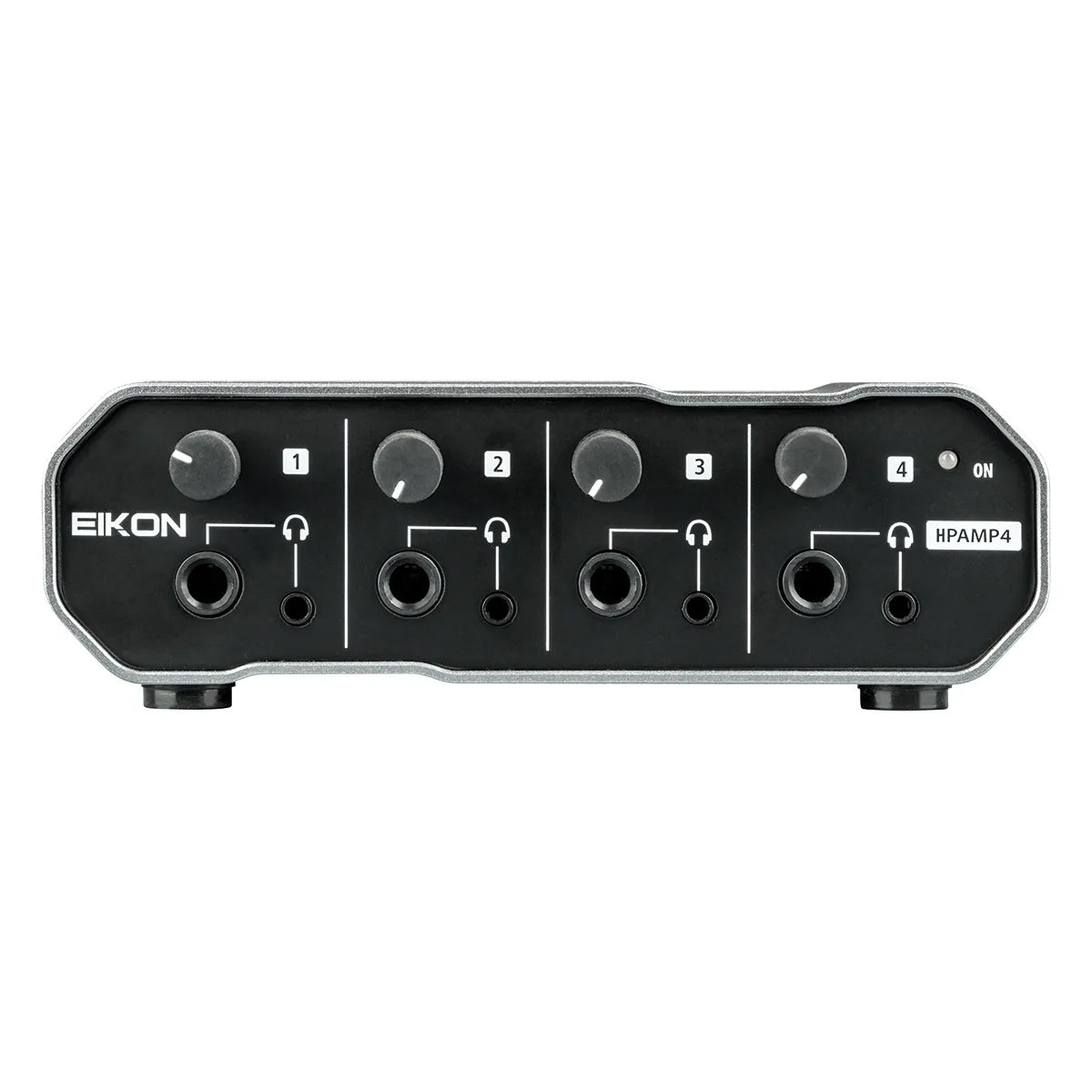

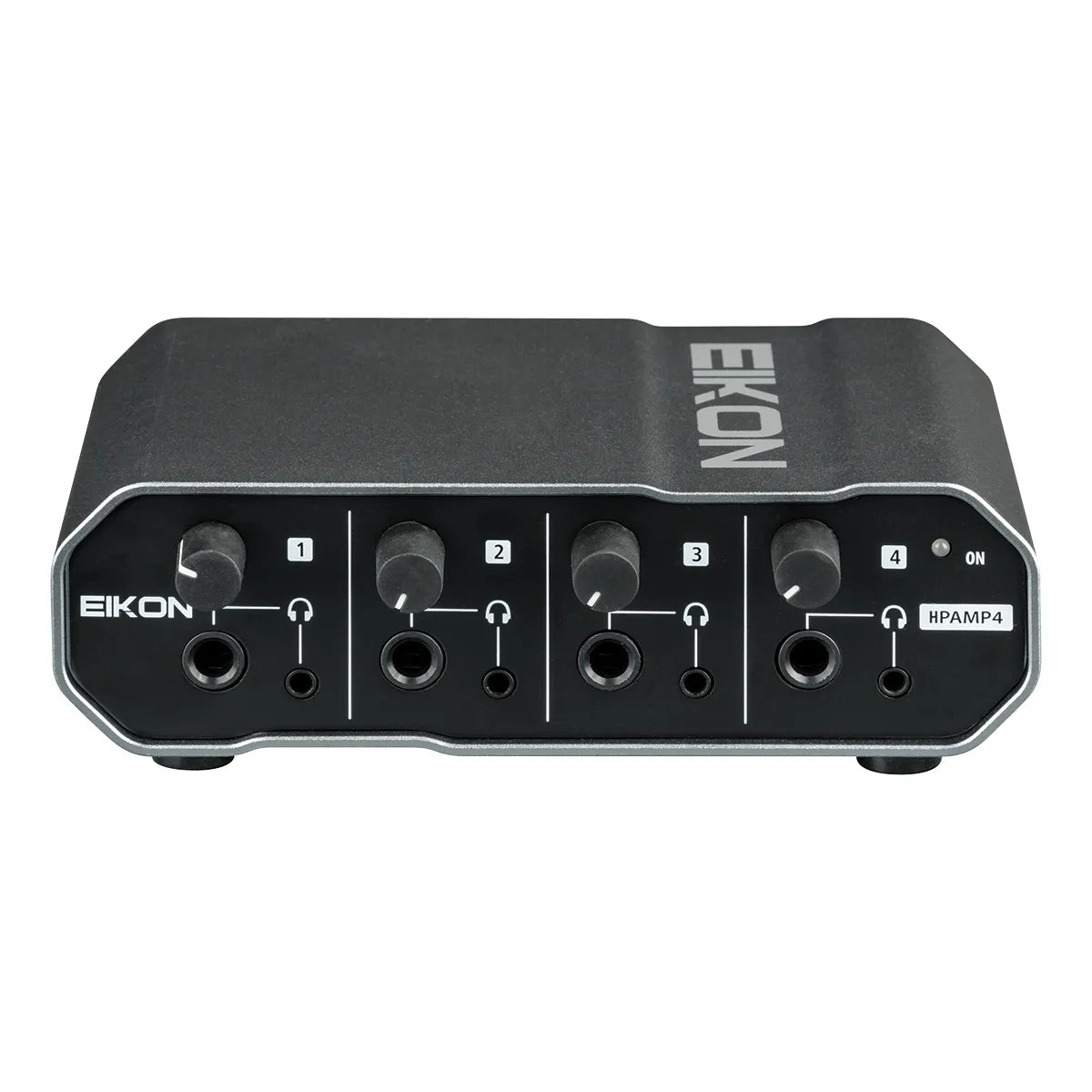

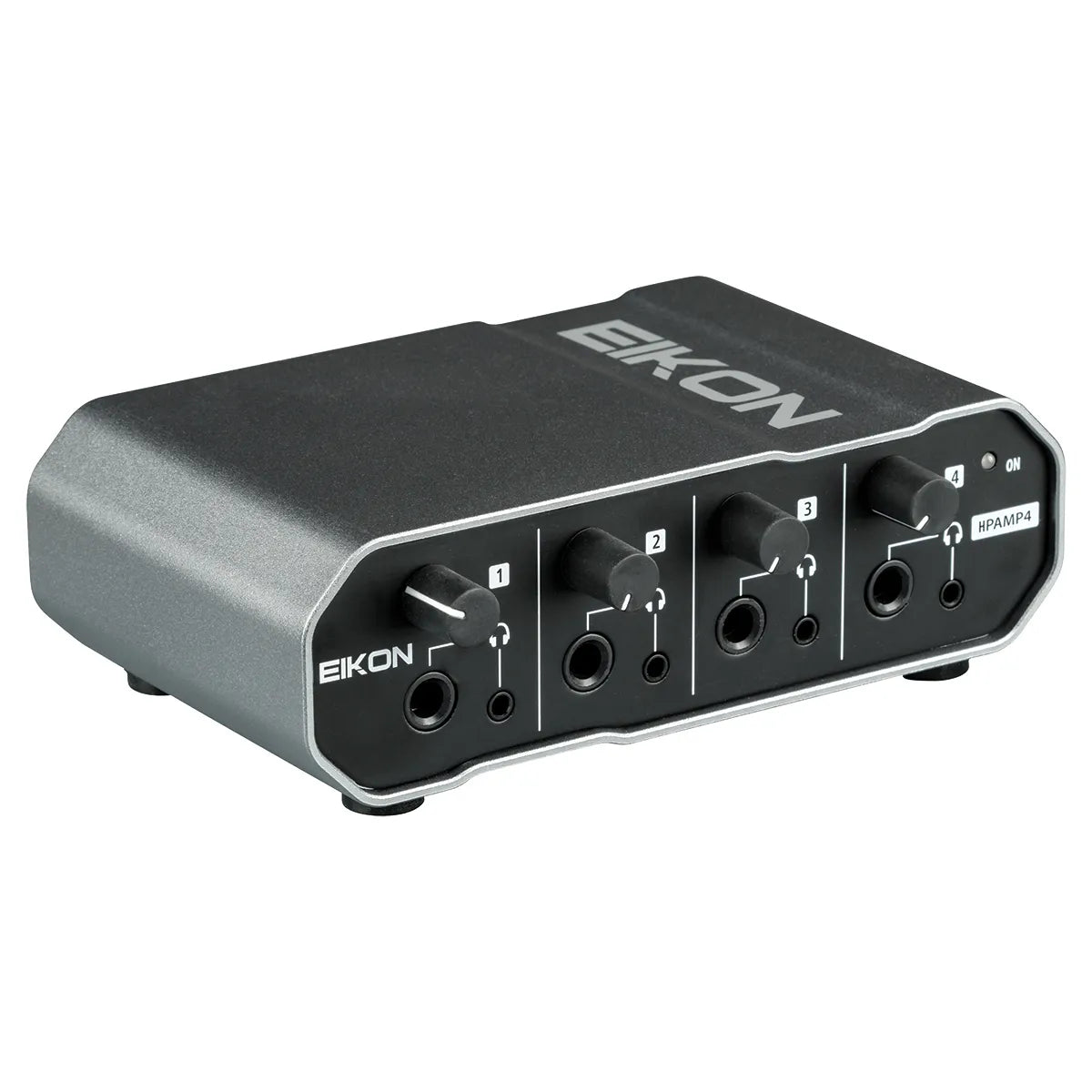

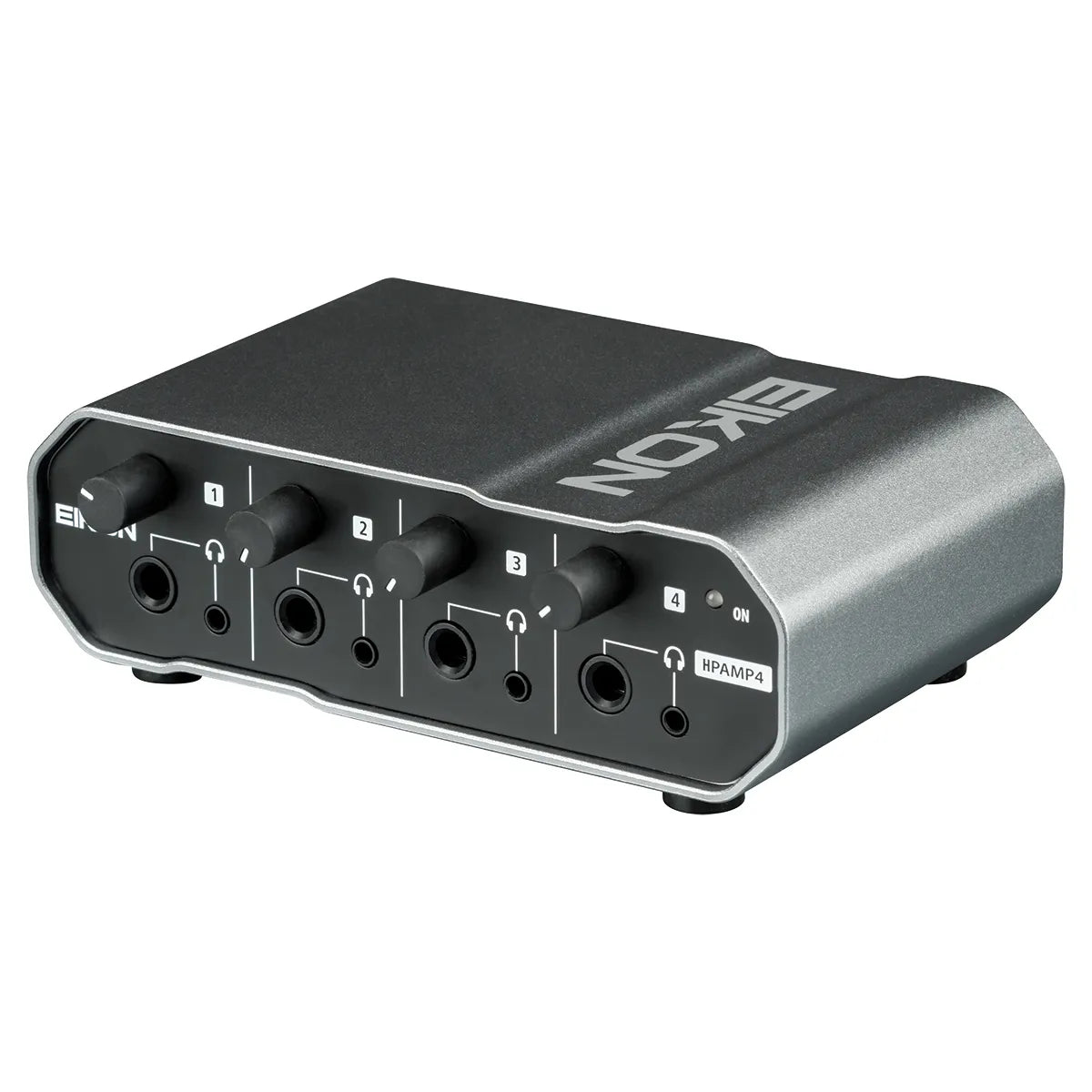

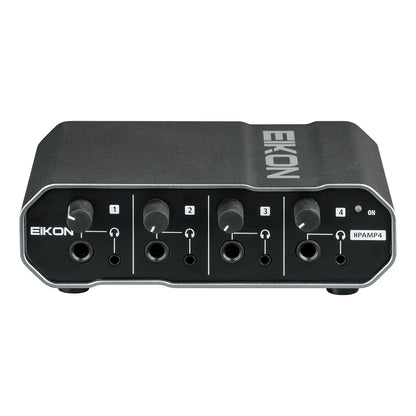

Eikon 4-Channel Headphone Amplifier The compact HPAMP4 Headphones Amplifier features a stereo input and four headphone outputs with individual level controls. It is very useful in small studios or stages when up to four people want to listen together. This 4-channel stereo headphone amplifier is designed for use with all types of headphones and therefore offers maximum flexibility. Its high-power stereo amplifiers with the low-noise 4580 OPAMP guarantee the highest sonic quality even at maximum volume. The input connections with 1/4” jack, mini-jack, RCA and mono/stereo switch together with output connections 1/4” jack and mini-jack allow the maximum flexibility without the need of special connection adapters. INPUT SECTION Connectors 2x RCA, 1x 1/4" JACK stereo, 1x 1/8" JACK stereo Inputs 1x stereo Input Impedance 20 Kohm Max Input Level +20 dBu OUTPUT SECTION Connectors 4x 1/4" JACK stereo or 1/8" JACK stereo Outputs 4x HEADPHONES stereo Max output 32ohm 2x 100mW (each channel) Max output 600ohm 2x 100mW (each channel) Load Impedance min 16 ohm per channel Max Gain +20 dB (each channel) SYSTEM PERFORMANCE Distortion (THD) 0.02% Noise < -98 dBu unweighted Frequency Response < 20 Hz - 20 KHz (-3dB) POWER SUPPLY Connector USB Type B AC/DC Adapter Input 100-240V ~ (±10%) 50/60Hz AC/DC Adapter Output 5V-1A (5W) Supplied Cable 1.2m USB Type A - Type B GENERAL Controls 4x OUTPUT LEVEL, INPUT STEREO/MONO SWITCH Indicators Power ON Dimensions (WxHxD) 160 x 52 x 106mm Weight 0.5kg (main w/out cable) Download User Manual Here
