• Eikon EKJ&H Wireless Headset Microphone System, UHF 512-541 MHz, 50 Channels, USB-C Charging, 20m Range, Built-in Lithium Battery
  • Eikon EKJ&H Wireless Headset Microphone System, UHF 512-541 MHz, 50 Channels, USB-C Charging, 20m Range, Built-in Lithium Battery — view 2
  • Eikon EKJ&H Wireless Headset Microphone System, UHF 512-541 MHz, 50 Channels, USB-C Charging, 20m Range, Built-in Lithium Battery — view 3
  • Eikon EKJ&H Wireless Headset Microphone System, UHF 512-541 MHz, 50 Channels, USB-C Charging, 20m Range, Built-in Lithium Battery — view 4
  • Eikon EKJ&H Wireless Headset Microphone System, UHF 512-541 MHz, 50 Channels, USB-C Charging, 20m Range, Built-in Lithium Battery — view 5
  • Eikon EKJ&H Wireless Headset Microphone System, UHF 512-541 MHz, 50 Channels, USB-C Charging, 20m Range, Built-in Lithium Battery — view 6
1 6
Eikon

Eikon EKJ&H Wireless Headset Microphone System, UHF 512-541 MHz, 50 Channels, USB-C Charging, 20m Range, Up to 4 Hours Autonomy

$142.95
$179.00 $142.95 Save $36.05
Sale Sold out

Includes GST

Sold out right now. We may be able to order it in. Call or message us and we’ll check with the supplier.
Call 03 4151 5751 Send us a message

Similar options in stock now

Make 4 interest-free payments of $35.74 with Afterpay
or pay nothing today with Zip

Delivery & collection

Standard shipping $7

Ships once we’ve sourced it. We’ll confirm exact timing with you first.

Free over $150.* Conditions apply.

Express shipping $15

1–3 business days depending on location.

Flat rate Australia-wide. Choose Express at checkout.

Click & Collect Free

From our Footscray showroom

Not sure it’s the right one? Talk to a player.

Call 03 4151 5751Send us a message
View full details

Description

SKU EKJH

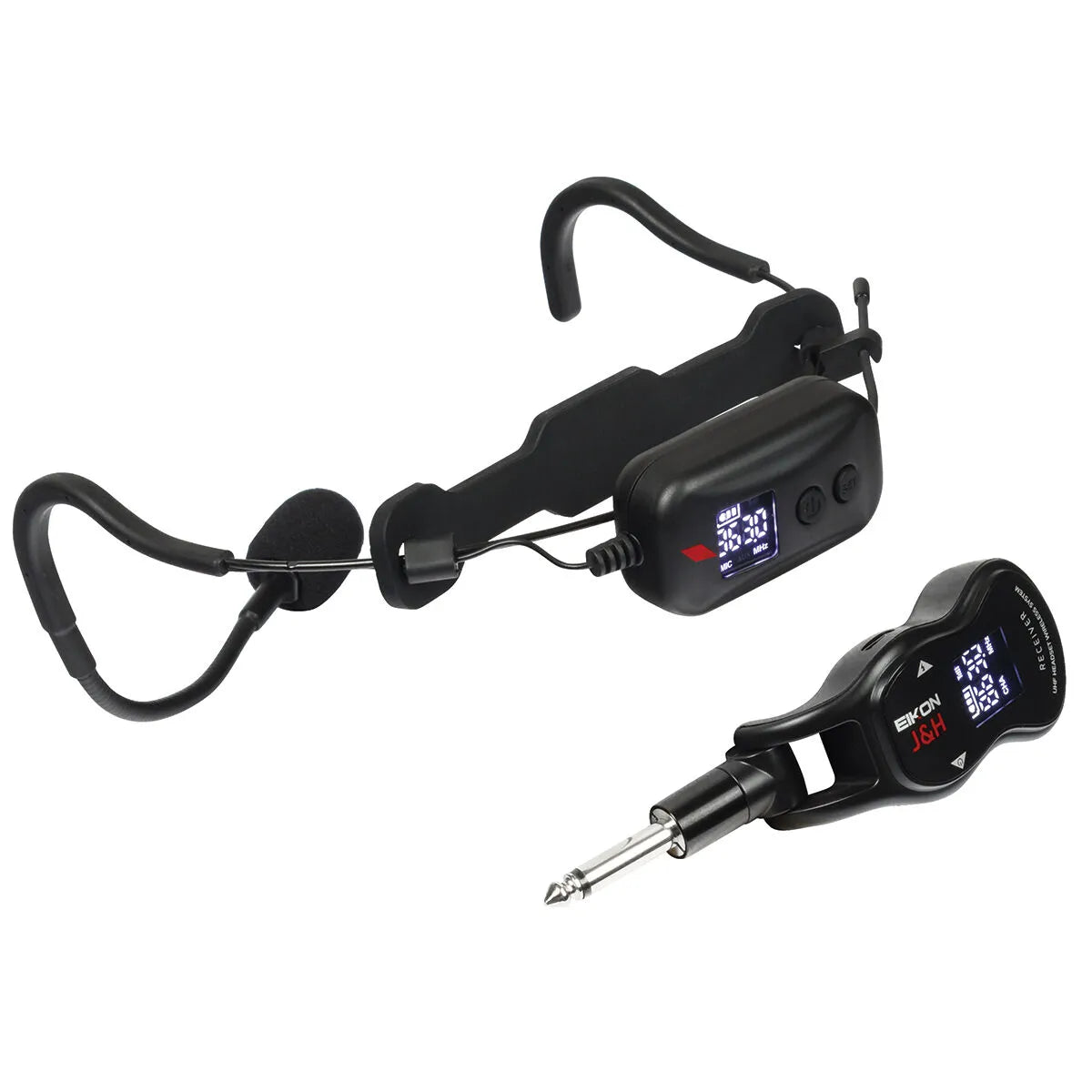

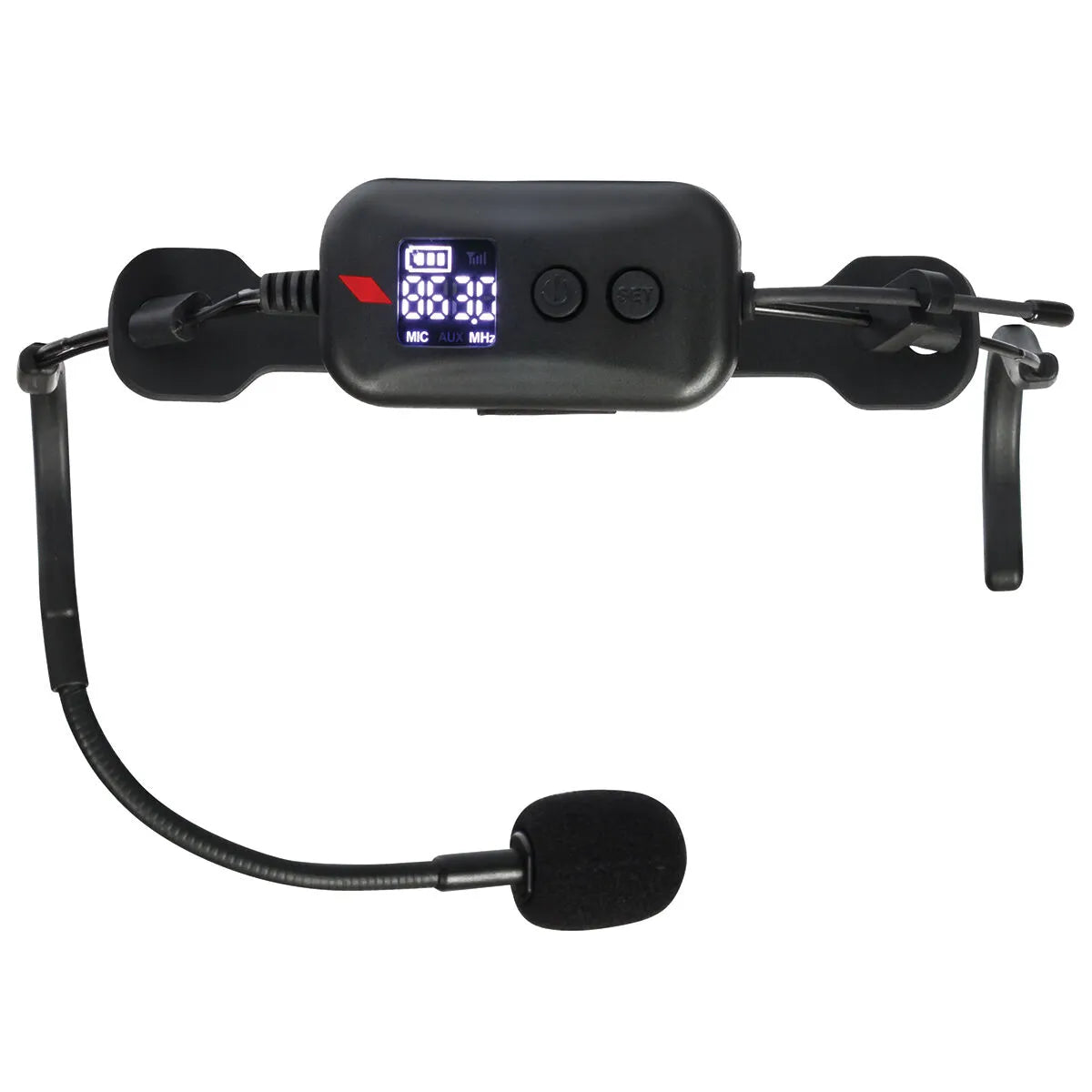

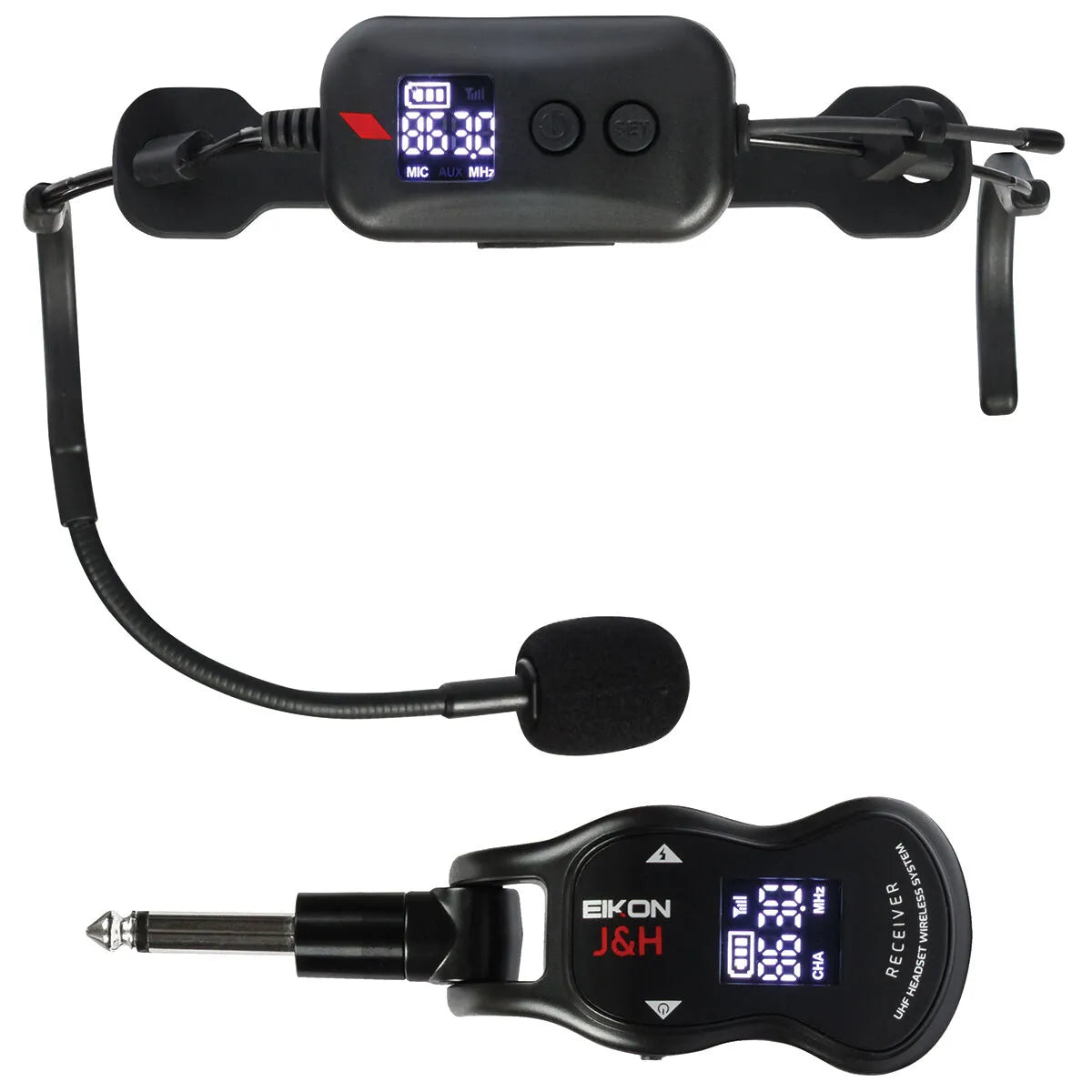

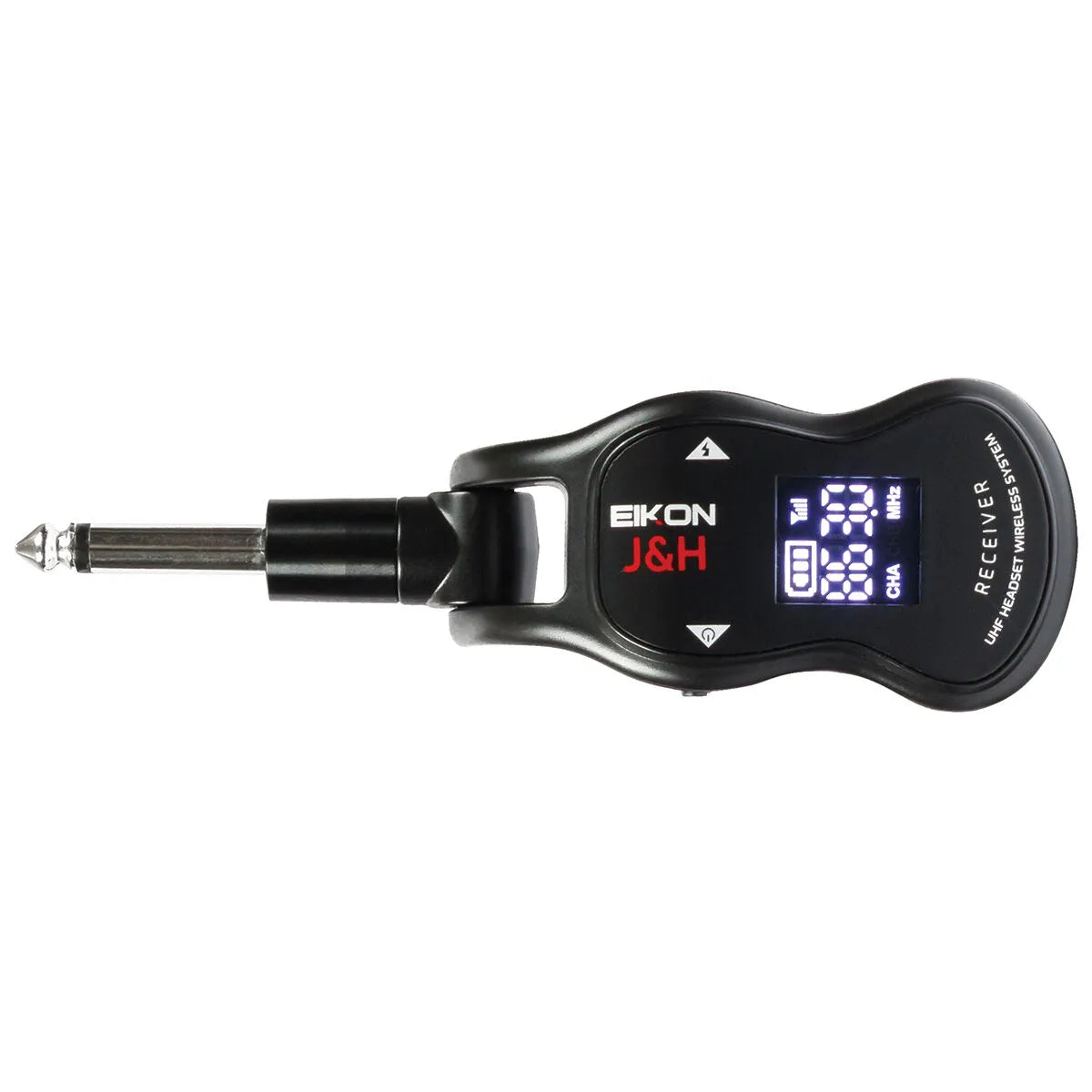

EIKON J&H Wireless Headset system The EKJ&H is a quartz-controlled UHF headset wireless microphone system that provides reliable, high-quality signal transmission. The EKJ&H comes with 3 units: the EKJ&H headset transmitter, the EKJ&H compact "connector-style" receiver, and a USB to USB-C charging cable. 50 frequency channels are available in 512 - 541 MHz, allowing the system to be used with other wireless equipment simultaneously. UHF 512 - 541 MHz frequency band Quartz locked modulation mode Up to 20 meters range Built in 3.7V/500mA lithium battery 5V USB-C charging cable included Up to 4 hours autonomy Up to 6 systems usable in the same location Download Manual HERE TECHNICAL SPECIFICATIONS EKJ&H – UHF PLL Headset Transmitter RF Channels 50 frequency presets RF Frequency Band UHF: 512 - 541 MHz RF Frequency Stability ±0,002% RF Oscillation Mode Quartz locked RF Modulation Type Wideband FM Stereo RF Output Power 10mW Sub-harmonic < 40 dB Operating current 130 mA Operating Time 3 to 5 hrs (depending on use conditions) Operating Power Supply 3.7 V / 500 mA - built-in Lithium battery Charging mode USB charging 5V – type USB-C connector Charging time 4 hours Weight 0.50 Kg EKJ&H –UHF PLL Receiver RF Channels 50 frequency presets RF Frequency Band UHF: 512 - 541 MHz RF Frequency Stability ±0,005% RF Oscillation Mode Quartz locked RF Modulation Type Wideband FM Stereo RF Receiving Sensitivity < -95 dBm RF Receiving range 20 meters depending on used band conditions Audio dynamic range 106 dBm THD Distortion < 0.5% S/N Ratio > 90 dBA Audio output connector 6.3 mm Mono Jack Output Power Max (continuous) 400 mW Operating current 80 mA Operating Time 5 hours Operating Power Supply 3.7 V / 500 mA - built-in Lithium battery Charging mode USB charging 5V – type USB mini connector Charging time 3 hours Weight 0.05 Kg

Details & dimensions

Brand
Eikon
Type
Wireless Systems
Weight
0.247 kg
