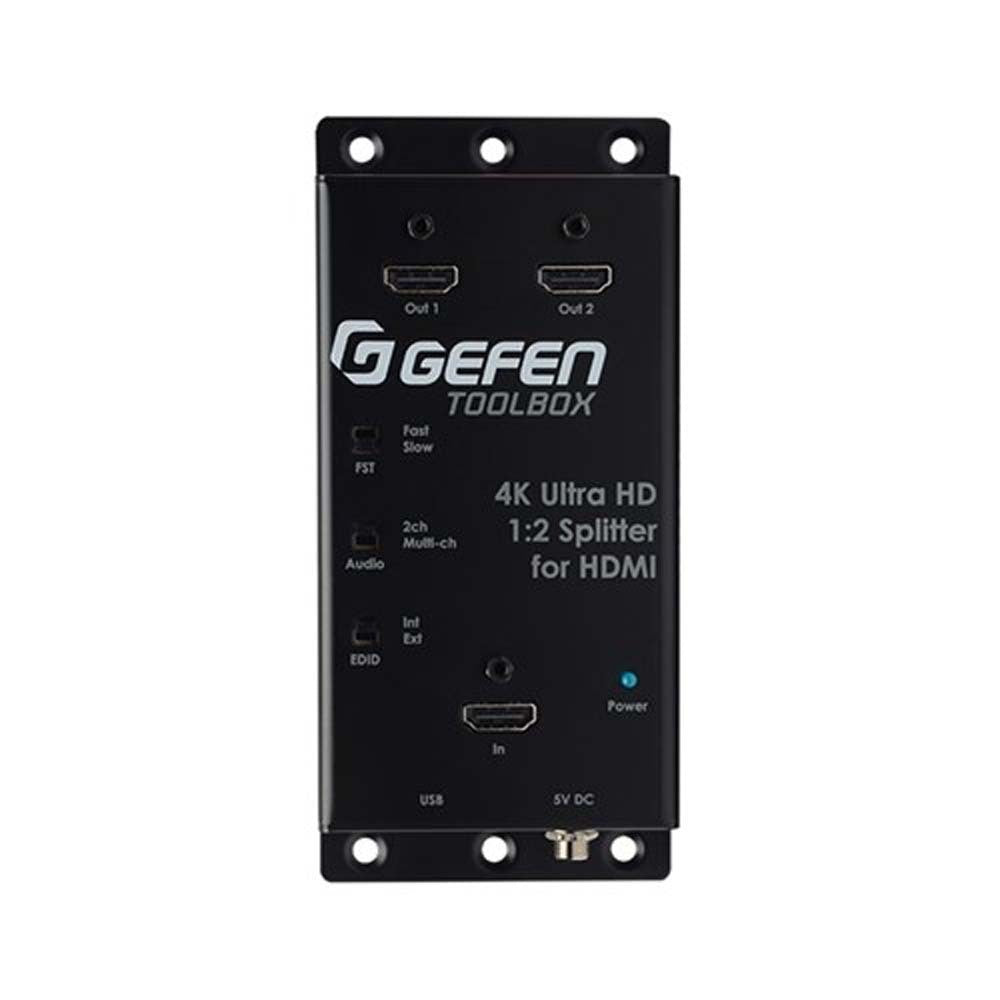

Gefen 4K Ultra HD 1:2 Splitter for HDMI with re-clocking function

THIS PRODUCT IS FOR ONLINE ORDER ONLY. Gefen 4K Ultra HD 1:2 Splitter for HDMIThe Gefen GTB-HD4K2K-142C routes one Ultra HD source to two 4K Ultra HD displays. This HDCP-compliant product has been specifically designed to support multiple layers of splitting/cascading for flawless performance in large video distribution and signage applications supporting hundreds of displays. Resolutions supported include 4K Ultra HD (3860 x 2160 at 60 Hz 4:2:0 color space) 4K DCI (4096 x 2160 at 24 and 30 Hz) 1080p Full HD and 1920x1200 (WUXGA). Deep Color 3D and multichannel digital audio including 7.1 channels of LPCM and HBR (High Bit Rate) lossless formats are also passed through. This product features Fast Switching Technology (FST). FST is a Gefen firmware implementation for HDMI products. It eliminates the lengthy HDMI authentication process and allows disconnecting reconnecting or powering down HDTV displays without any of these activities causing picture loss in other displays within the same distribution system. The choice between built-in and passed-through EDIDs and the ability to configure the EDID for 2-channel or multichannel operation help customize your AV system to meet its operational requirements . The Gefen 1:2 Splitter is a high performance and capable choice for any small or large 4K video distribution system. How It WorksThe Ultra HD 4K Splitter is connected between the Ultra Hi-Def source and two Ultra HD displays. One or both of its outputs can alternatively be connected to another Gefen splitter to create a cascaded system that distributes HDMI to a larger number of displays. Each splitter should also be connected to an AC outlet using the included power supply. Once the source and the displays are turned on and power is applied to the splitter(s) the 4K picture will appear on all connected screens without any further set-up. FeaturesSimultaneously displays an Ultra Hi-Def source on up to two Ultra HD displaysSpecifically designed to support 10 layers of splitting/cascading in large video distribution and signage applications supporting hundreds of displaysSupports resolutions up to 4K DCI (4096 x 2160 at 24 and 30 Hz) 4K Ultra HD (3860 x 2160 at 60Hz 4:2:0 color space)1080p Full HD and 1920x1200 WUXGASupports 12-bit Deep Color at 1080p3DTV pass-throughLip Sync pass-throughFST Technology speeds up HDCP authentication processEDID Management and Audio Mode selectors for rapid integration of source and displaysSupports LPCM 7.1 Dolby TrueHD Dolby Digital Plus and DTS-HD Master AudioSupports the use of DVI sources and DVI displays with HDMI-to-DVI adapters (not included)Field-upgradeable firmware using Mini-USB portLocking Power SupplySurface-mountable SpecificationsMaximum Pixel Clock: 300 MHzHDMI Input Connector: (1) Type A 19-pin female lockingHDMI Output Connectors: (2) Type A 19-pin female lockingUSB Port: (1) Mini-BPower Indicator: (1) LED blueFST Switch: (1) 2-position slide-typeAudio Switch: (1) 2-position slide-typeEDID Switch: (1) 2-position slide-typeDC Power Connector: (1) Locking typePower Supply: 5V DCPower Consumption: 4 Watts (max.)Operating Temperature: +32 to 104 °F (0 to +40 °C)Dimensions (W x H x D): 3.0 x 6.5 x 1.0 (76mm x 165mm x 26mm)Shipping Weight: 2.5 lbs. (1.1 kg)Package Includes:(1) 4K Ultra HD 1:2 Splitter for HDMI (GTB-HD4K2K-142C-BLK)(1) 6 ft. Locking HDMI Cable (CAB-HD-LCK-06MM)(1) 5V DC Power Supply (EXT-PS526AIP-LP)(1) Quick-Start Guide (QSG-GTB-HD4K2K-142C-BLK)
