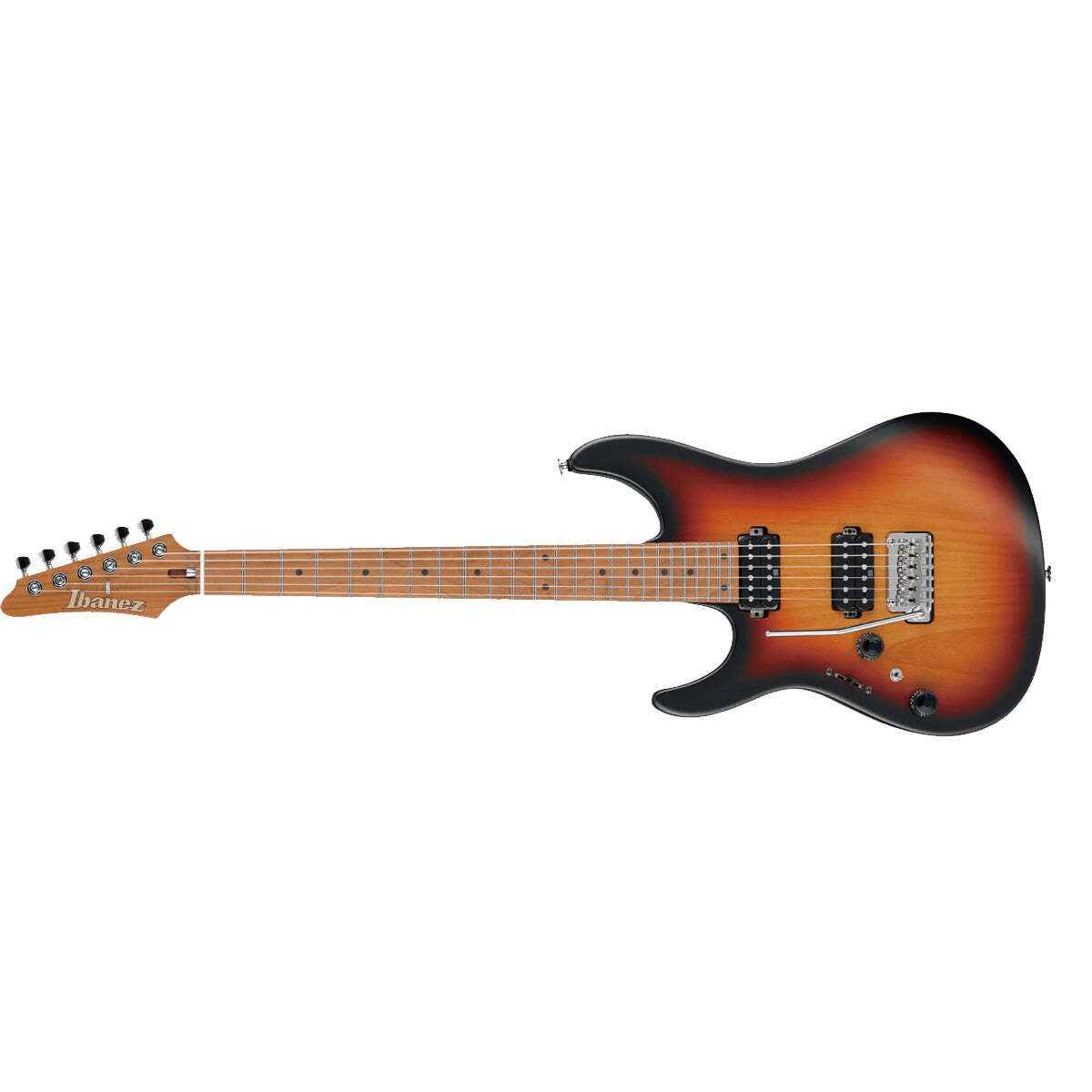

Ibanez AZ2402L Prestige Electric Guitar Left Handed Tri Fade Burst Flat w/ Case

Gotoh® T1802 tremolo bridge

The T1802 tremolo bridge features machined titanium saddles and a machined steel tremolo block for a quick response, thick lows and rich highs. The 10.5mm string spacing allows for easy picking across strings and its snap-in construction makes it easy to load a tremolo arm.

Seymour Duncan® Hyperion™ Pickups

Seymour Duncan® Hyperion™ Pickups feature a moderate output through Alnico-5 magnets to keep the clarity of the fundamental tone when using a distortion sound, and to deliver a clear pick attack. From treble to bass, the overall tonal balance is evenly adjusted., and works well with various effect pedals.

Oil-impregnated Bone nut /Stainless Steel Frets

The Oil-impregnated bone nut provides superior tuning stability and warm rich resonance. Stainless steel frets boast excellent corrosion resistance. The wide and tall fret-type offers a quick response, good articulation when playing chords and clear tone when playing single notes.

S-TECH WOOD Roasted Maple fretboard w/Black dot inlay

S-TECH special roasted treatment provides a superior attack and a well-balanced tone and a rich sustain. In order to achieve supreme neck grip comfort, the fretboard edge is finished with a smooth curve.

AZ Oval C S-TECH WOOD Roasted Maple neck

S-TECH special roasted treatment increases the wood's stability, durability, water resistance and tolerance of temperature changes. The neck is sealed with an oil finish which helps make it feel similar to a well-played guitar neck.

Ergonomic rear body contour

A shallow body back contour and a big forearm contour make the guitar body fit the player naturally, thus increasing playing comfort. The AZ body has a deep waist and different radii on each body edge curve, making it easier to play in both standing or sitting positions.

Gotoh® Magnum Lock machine heads w/H.A.P.(Height Adjustable Post)

The AZ comes with GOTOH® MAGNUM LOCK® machine heads, which have an established reputation for tuning stability. Its H. A. P® (Height Adjustable Post). system allows for the adjustment of string posts for the appropriate tension of each string.

Luminlay side dot inlays

The Luminlay side dot position marks make it easy for players to see fretboard position marks when performing on dark stages.

Specifications

neck type

AZ Oval CS-TECH WOOD Roasted Maple neck

top/back/body

Alder body

fretboard

S-TECH WOOD Roasted Maple fretboardBlack dot inlay

fret

Jumbo Stainless Steel fretsPrestige fret edge treatment

number of frets

24

bridge

Gotoh® T1802 tremolo bridge

string space

10.5mm

neck pickup

Seymour Duncan® Hyperion™ (H) neck pickupPassive/Alnico

bridge pickup

Seymour Duncan® Hyperion™ (H) bridge pickupPassive/Alnico

factory tuning

1E,2B,3G,4D,5A,6E

strings

D'Addario® EXL110

string gauge

.010/.013/.017/.026/.036/.046

nut

Bone nut

hardware color

Chrome

NECK DIMENSIONS

Scale :

648mm/25.5"

a : Width

42mm at NUT

b : Width

57mm at 24F

c : Thickness

20.5mm at 1F

d : Thickness

22.5mm at 12F

Radius :

305mmR
