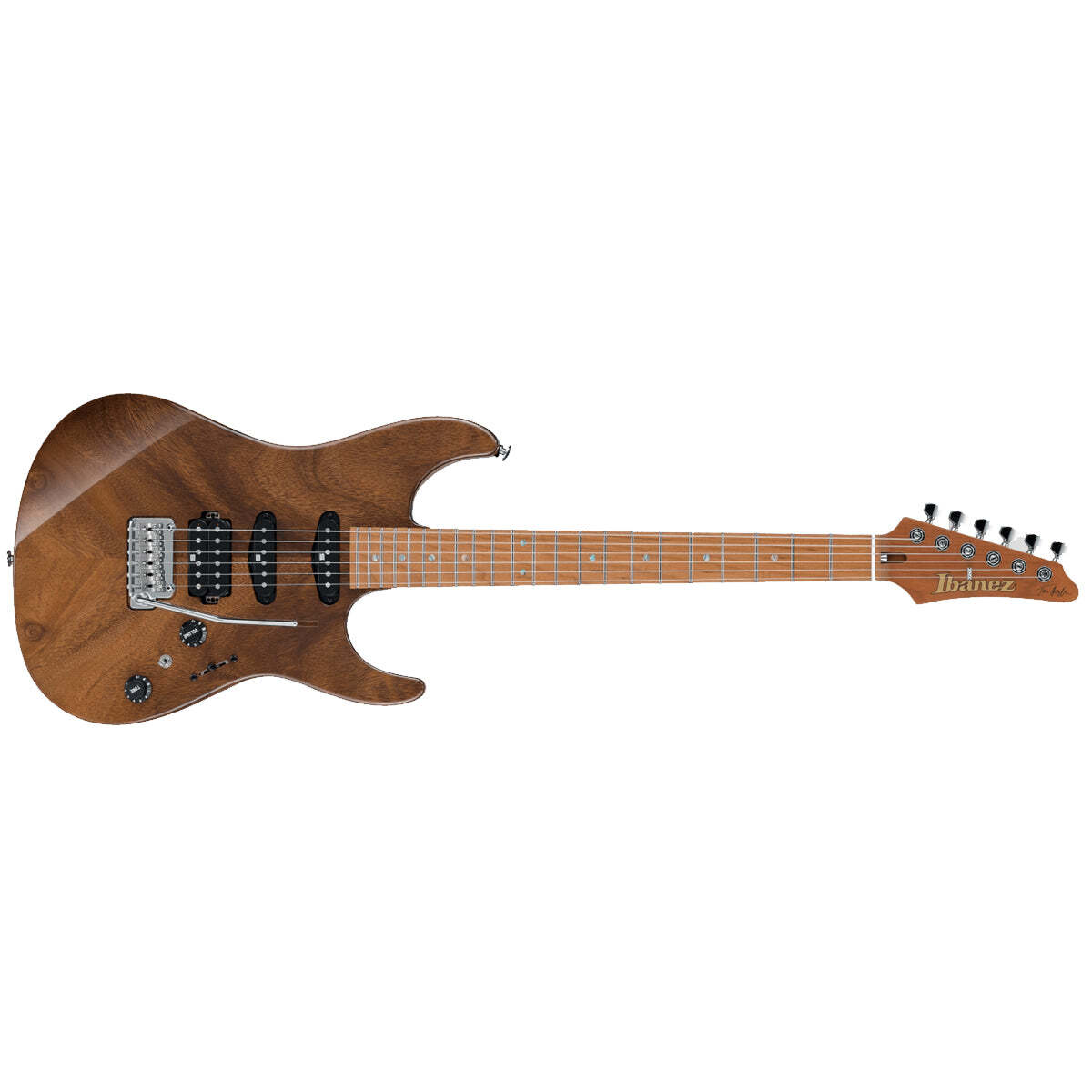

Ibanez TQM1 Tom Quayle Signature Electric Guitar Natural w/ Case

Seymour Duncan® Fortuna™ S-S-H pickups

Seymour Duncan® Fortuna™ Pickups feature a moderate output and natural clean voicing which accurately reflect subtle playing nuances. From treble to bass, the overall tonal balance is evenly adjusted and works well with various effect pedals.

Gotoh® T1802 tremolo bridge

The T1802 tremolo bridge features machined titanium saddles and a machined steel tremolo block for a quick response, thick lows and rich highs. The 10.5mm string spacing allows for easy picking across strings and its snap-in construction makes it easy to load a tremolo arm.

dyna-MIX 9 switching system w/Alter switch

dyna-MIX 9 offers nine sound variations, and can easily switch between humbucker and single coil modes with just the mini switch. One mode is even able to simulate a humbucker sound from the combination of the 2 single coil pickups.

Seymour Duncan® Hyperion™ Pickups

Seymour Duncan® Hyperion™ Pickups feature a moderate output through Alnico-5 magnets to keep the clarity of the fundamental tone when using a distortion sound, and to deliver a clear pick attack. From treble to bass, the overall tonal balance is evenly adjusted., and works well with various effect pedals.

Oil-impregnated Bone nut /Stainless Steel Frets

The Oil-impregnated bone nut provides superior tuning stability and warm rich resonance. Stainless steel frets boast excellent corrosion resistance. The wide and tall fret-type offers a quick response, good articulation when playing chords and clear tone when playing single notes.

AZ Oval C S-TECH WOOD Roasted Maple neck

S-TECH special roasted treatment increases the wood's stability, durability, water resistance and tolerance of temperature changes. The neck is sealed with an oil finish which helps make it feel similar to a well-played guitar neck.

Gotoh® Magnum Lock machine heads w/H.A.P.(Height Adjustable Post)

The AZ comes with GOTOH® MAGNUM LOCK® machine heads, which have an established reputation for tuning stability. Its H. A. P® (Height Adjustable Post). system allows for the adjustment of string posts for the appropriate tension of each string.

Luminlay side dot inlays

The Luminlay side dot position marks make it easy for players to see fretboard position marks when performing on dark stages.

Hardshell case included

Specifications

neck type

TQM S-TECH WOOD Roasted Maple neck

top/back/body

Monkeypod topAlder body

fretboard

S-TECH WOOD Roasted MapleAbalone dot inlay

fret

Jumbo Stainless Steel frets

bridge

Gotoh® T1802 tremolo bridge

string space

10.5mm

neck pickup

Seymour Duncan® Hyperion™ (S) neck pickupPassive/Alnico

middle pickup

Seymour Duncan® Hyperion™ (S) middle pickupPassive/Alnico

bridge pickup

Seymour Duncan® Hyperion™ (H) bridge pickupPassive/Alnico

factory tuning

1E, 2B, 3G, 4D, 5A, 6E

strings

D'Addario® EXL110

string gauge

.010/.013/.017/.026/.036/.046

nut

Bone nut

hardware color

Chrome

NECK DIMENSIONS

Scale :

648 mm/25.5"

a : Width

42mm at NUT

b : Width

56.4mm at 22F

c : Thickness

20.5mm at 1F

d : Thickness

22.5mm at 12F

Radius :

305mmR
