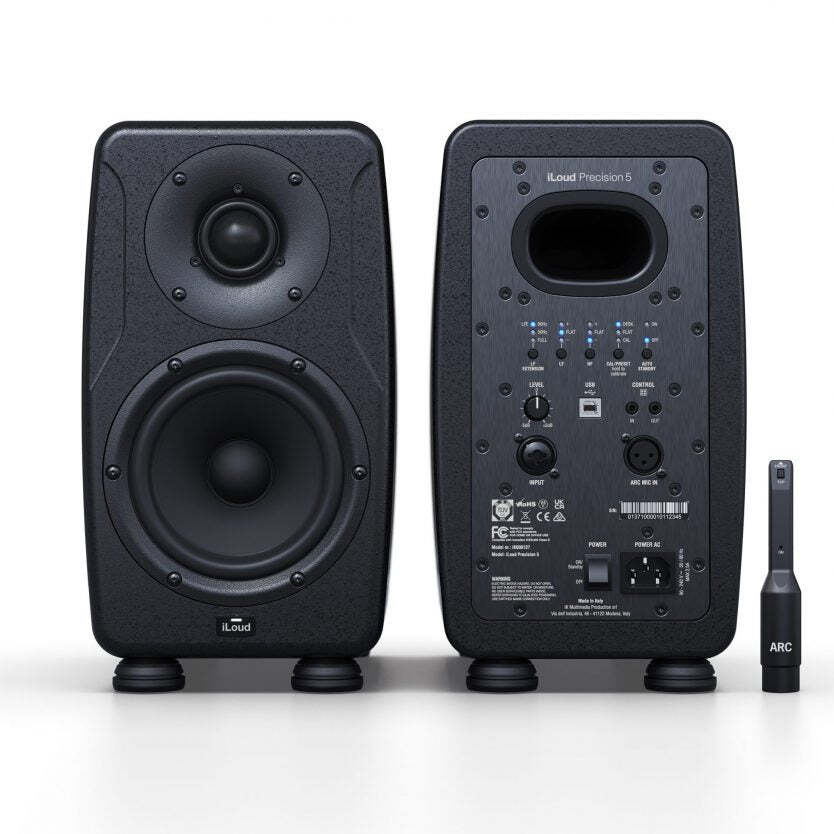

IK Multimedia iLoud Precision 5 Handcrafted 5" Digitally Controlled Studio Monitor (SINGLE)

iLoud Precision series represents another breakthrough in nearfield monitoring from the company that revolutionized compact monitors with iLoud Micro Monitor and iLoud MTM.

These handmade works of sonic art reflect IK’s twenty five ‘plus’ years of expertise in loudspeaker design and digital signal processing, delivering a level of sonic detail that beats speakers at three times the price, with unique DSP-based features and software workflow enhancements that can’t be found anywhere else.

Features

Truly class-defying audio performance beats monitors three times the price

Best-in-class frequency response with extended 36 Hz – 30 kHz range

Ultra-flat to ±1 dB across 45 Hz – 30 kHz spectrum

Unique linear phase response for unmatched clarity

Perfect time alignment that matches theoretical ideal speaker performance

Built in ARC™ calibration with included measurement microphone

Includes X-MONITOR software with 20+ iconic monitor emulations and extended voicing controls

Individually calibrated with ±0.5 dB unit-to-unit consistency

Developed and handcrafted in Italy

Rear panel control at your desktop

X-MONITOR gives you access to all the same controls as Precision’s rear panel from your desktop and lets you save their settings as user presets for easy recall. You can select individual speakers or linked pairs. From the software you can adjust the low-frequency extension, the low- and high-frequency contours, standby timer setting and more. No more struggling to experiment with back panels settings, it can all be adjusted within X-MONITOR.

Iconic speaker emulation

X-MONITOR controls Precision’s ability to emulate the frequency and phase response of the most famous studio monitors on the market, working in tandem with the ARC settings for the best possible sound in any listening environment. This is ideal for testing a mix on different reference systems quickly, without ever leaving the sweet spot and ARC’s calibration.

Choose the emulation you want to try from the Virtual Monitoring dropdown menu and X-MONITOR applies your selection to the Precisions. For immersive audio setups, X-MONITOR lets you choose the same or different monitor emulations for each Precision or pair of Precisions for maximum flexibility.

The speaker emulations are stored inside the Precision’s firmware and the one last used is recalled the next time the speakers are turned on. Using X-MONITOR, or the optional remote control, makes it incredibly easy to audition and load the over 20 iconic speaker emulations or return iLoud Precision to its own original, superior sound.

iLoud Precision 5 offers:

5? ultralight coated paper mid-woofer

1.5? high output, low distortion chambered textile dome tweeter

Audiophile, custom-designed Class-D power amplifiers

135 W total RMS power

Max SPL, peak, pair, music, 1 m: 114.5 dBA

Complete DSP controlled system, 96 kHz sampling rate

46 Hz to 30 kHz frequency response +/- 1 dB

39 Hz low frequency extension @-4 dB

Phase response: Coherent, 0/+20° max from 150 Hz up

Phase rotation at 100Hz (with high pass filter off): 50° max

Directivity (Vertical – all voices): +/-50°

Directivity (Vertical – Wide Dispersion mode): +70°/-50°

Continuous, long term SPL free field, 1 m distance, one speaker, fullband pink noise: 98.5 dB(A)

Peak SPL free field, 1 m distance, one speaker, fullband pink noise: 104.5 dB(A)

Peak SPL, half space, 1 m distance, one speaker, fullband pink noise: 106.5 dB(A)

Maximum peak SPL, per pair, 1 m distance, music program: 114.5 dB(A)

Crossover frequency: 2.1 kHz

Crossover type: 8th order, linear phase

LF Power amp (short term): 110 W

HF Power amp (short term): 25 W

Power amps distortion at nominal power: 0.005%

Total latency or TOF: 2.5 ms

Adjustable additional delay: 0-10 ms

High pass filter: off, 35, 50, 65, 80 Hz

LF contour: from -10 to +6 dB

Desk contour: from -10 to 0 dB

Mid contour: from -4 to +4 dB

HF contour: from -6 to +6 dB

Sentitivity: -4 dBu / 88 dBSPL

Input gain trim: +/-5 dB

Unit to unit consistency: +/-0.5 dB

Operating temperature (non condensing): from 0 to 35 °C

Coherent time response across the audio spectrum

High performance vented design

Built-in ARC room calibration

X-MONITOR technology

Remote control for X-MONITOR voice selection and measurement process control

X-MONITOR macOS and Windows control software

Handcrafted in Italy

Dimension and weight

(H x W x D): 296 mm x 177 mm x 223 mm

6.1 kg

Package includes

1 x iLoud Precision 5 monitor

Power cord

ARC Microphone

ARC Microphone clamp

USB-B to USB-A 2.5m cable

1 x kit of 4 iLoud Isolation Pods
