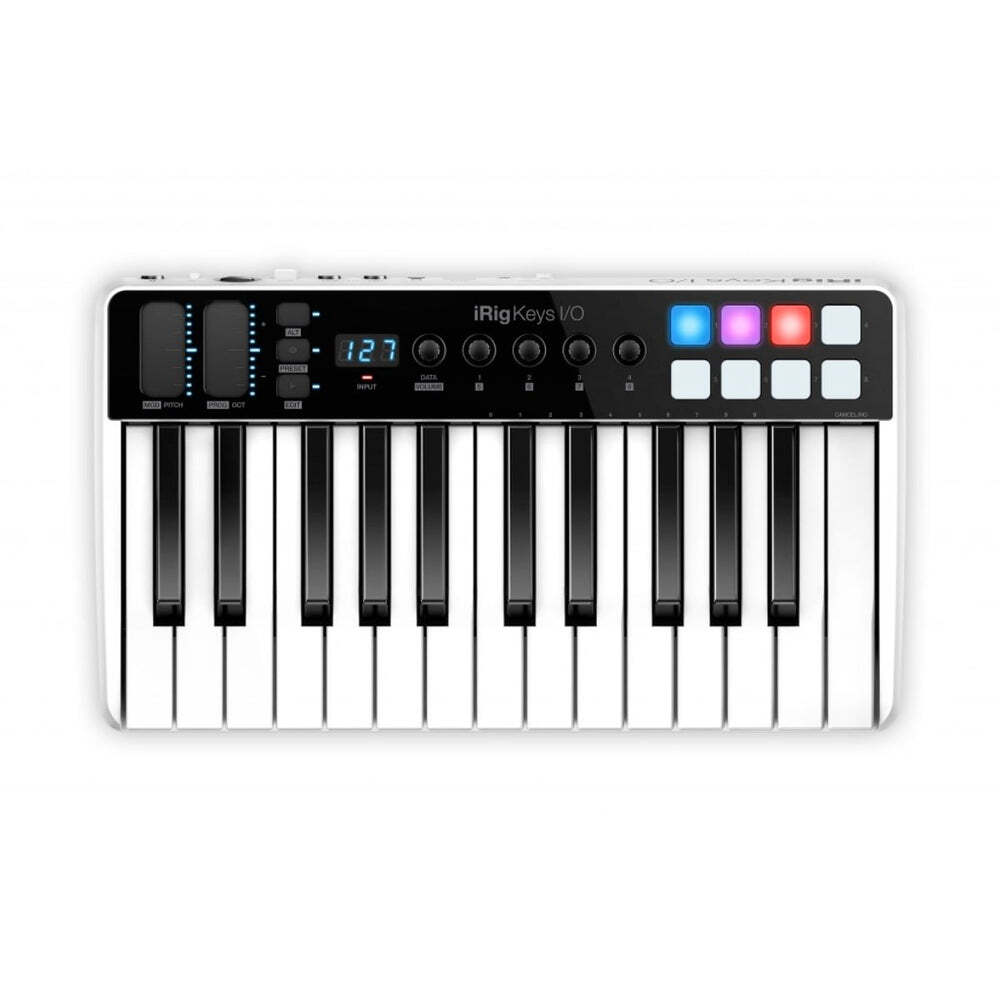

IK Multimedia iRig Keys I/O 25 Key MIDI Keyboard and Audio Interface

The IK Multimedia iRig Keys I/O series evolves the concept of traditional controllers as the only one available on the market that integrates 25 full-sized keys together with a fully-fledged professional audio interface featuring 24-bit audio up to 96kHz sampling rate, balanced stereo and headphone outputs, plus a combo input jack for line, instrument or mic input (with Phantom power.)

FEATURES:

A total music production system in a controller

Together with an audio interface, iRig Keys I/O also packs all the controls you would expect from a premium controller including velocity-sensitive multicoloured pads and programmable touch-sensitive sliders, buttons and knobs for unique expressiveness and fast workflow.

Both iRig Keys I/O 25 and 49 are also the smallest controllers with full sized keys on the market making them the best solution for working in small spaces and ideal when it comes to having a controller for traveling musicians, in addition to the consideration that they are the only truly mobile devices that can also work on AA batteries.

Being certified Apple MFi keyboard controllers (“Made for iPod, iPhone, iPad,”) iRig Keys I/O are guaranteed to work out of the box with all iOS devices including the latest generation of iPhone 7, that does not have an audio output, thanks to the on-board audio interface. The included Lighting cable allows for straight plug-and-play with Apple iOS devices, the USB cable connects Mac and PC computers.

The only controller with an audio interface

Having a professional 24-bit / 96kHz capable complete audio interface built-in with iRig Keys I/O presents many advantages versus regular controllers for today’s musicians. The system becomes self-contained taking up minimal space in any situation whether on a small studio desk or when playing live and traveling. The set-up is also kept to a minimum and is as fast and easy as just plug and play. The work environment becomes clean and tidy, without a bunch of extra cables.

In a recording studio, everything can be connected directly to the keyboard ensuring the best possible quality with a Class A preamp for dynamic and condenser mics (including those requiring 48V Phantom power, which works under battery power as well,) to line instruments and even Hi-Z guitars and basses. The built-in headphone output allows for convenient silent playing when studying or practising. Plus, when used in live performances the balanced stereo output allows for long cable runs directly from the keyboard to the PA or mixer which is useful for performing keyboard players or DJs.

All of this makes iRig Keys I/O controllers the ideal creative centre of your studio or live performances, in any situation, providing a convenient solution even more affordable than having to buy a controller and an audio interface separately, which is simply unrivalled in today’s market.

Take control with touch controls

Despite their ultra-compact dimension, iRIg Keys I/O include all the tactile controls you would expect from a fully-fledged controller and more. Starting with a fast synth-action key bed that improves on all preceding IK keyboards and it’s a joy to play. Both the models feature one volume/ data push knob, 4 touch-sensitive knobs on 2 banks (acting as 8 total controls) and 8 multicoloured, velocity-sensitive pads. Plus, there are 2 fully programmable touch control strips acting by default as Pitch and Mod controls allowing for dramatic performances in any genre and double as fully programmable sliders.

A complete touch-sensitive transport and button control section rounds out the controls available. All knobs, sliders and buttons are touch-sensitive using capacitive technology for ultra-fast action and immediate feedback, displaying the related parameter value just with a simple touch.

Features

All-in-one, fully portable, ultra-compact MIDI controller with 24-bit / 96kHz capable input/output audio interface for iPhone, iPad, Mac and PC

Full-size keys and smooth, velocity-sensitive, synth-action keyboard

Smart, ultra-compact, elegant design

Easily transportable and fits anywhere

MFi certified by Apple (“Made for iPhone and iPad”) includes Lightning Cable

Includes mobile device support stand

Comprehensive controls: 2 slider strips for pitch and modulation (user programmable,) octave, program change and transport controls, 5 programmable touch-sensitive knobs, 8 velocity-sensitive multi-coloured assignable pads

Neutrik® combo input jack for line, instrument or microphones

48V phantom power button

Balanced stereo and headphone outputs

Comes with the most comprehensive collection of software instruments and pro studio processors on the market.Powered by USB, 4 AA batteries or optional external power supply (charges your iOS device)

Microphone Input

SPECIFICATIONS:

Specs

iRig Keys I/O Specifications

Microphone Input

Microphone Type: balanced female 3-pin, XLR. Pin 2: hot / Pin 3: cold / Pin 1: ground

Microphone Input Level: from 6 mVpp to 1.4 Vpp

Microphone Input Impedance: 3.2 kOhms

Gain Range: 46 dB

Phantom Power: +48V ± 4V

Frequency Response: 20 Hz - 20 kHz +/-1.5dB

Input Noise: -100 dB RMS

Instrument Input

Instrument Input: unbalanced, Hi-Z, TS 1/4" Jack, Tip: signal / Shield: ground

Instrument Input Level: from 30 mVpp to 6.9 Vpp

Instrument Input Impedance: 1 ohms

Gain Range: 27 dB

Frequency Response: 20 Hz - 20 kHz +/-1.5dB

Input Noise: -100 dB RMS

Line Output

Line Outputs: 2x balanced, TRS 1/4” Jack, Tip: hot / Ring: cold / Shield: ground

Floating Balanced Outputs with automatic level compensation when working in an unbalanced mode

Maximum Output Level: +13 dBu into 600 Ohms balanced load

Frequency Response: from 10 Hz to 21 kHz (+/- 0.2dB)

Output Dynamic Range: 102 dB(A)

Output Impedance: 150 Ohms balanced

Stereo Headphone Output

Connector: 1/8" TRS Jack. Tip: right / Ring: left / Shield: ground

Headphone Level Power 100mW to 50 Ohms

Other Input/Output

DC barrel: 1x DC barrel. For power and device charging.

Device Connector: mini-DIN

External Pedal Input: 1/4" TRS Jack

Common

Conversion: 16 or 24-bit A/D - D/A

Sampling Rate: 44.1 kHz, 48 kHz, 88.2 kHz and 96 kHz

Power:• USB bus powered when used with a computer• Battery powered (4xAA included) when used with an iOS device• DC power supply (not included, iRig PSU 3A sold separately)**

Keyboard

Keys: 25 or 49 (depending on the version) full-size keys with velocity

Pads

8 velocity-sensitive multi-colour assignable pads

Controls

Slider strips for pitch and modulation (user programmable)

Octave, program change and transport

5 programmable touch-sensitive encoders

Package includes

iRig Keys I/O 49 or 25 keyboard (depending on the version)

Lightning to Mini-DIN connection cable with charging features (60cm/23.62")

USB-A to Mini-DIN connection cable (60cm/23.62")

USB-C to Mini-DIN connection cable (60cm/23.62")

iPhone/iPad stand

4 x 1.5V AA Battery

iRig Keys I/O 49 Dimensions

Size: 693mm/27.3" x 208mm/8.2" x 65mm/2.6"

Weight: 2.18kg/76.9oz (batteries excluded)

iRig Keys I/O 25 Dimensions

Size: 373mm/14.7" x 208mm/8.2" x 65mm/2.6"

Weight: 1.26kg/44.5oz (batteries excluded)

Compatibility

iOS Devices

Compatible with iPhone 7 Plus*, iPhone 7*, iPhone SE, iPhone 6s Plus, iPhone 6s, iPhone 6 Plus, iPhone 6, iPhone 5s, iPhone 5c, iPhone 5, iPod touch 6th generation, iPod touch 5th generation, iPad Pro (12.9-inch) 1st Generation, iPad Pro (9.7-inch), iPad mini 4, iPad Air 2, iPad mini 3, iPad Air, iPad mini 2, iPad mini, iPad 5th generation, iPad 4th generation. iOS 6 or later is required.

Also compatible with iPhone X, iPhone 8 Plus, iPhone 8, iPad 9.7-inch (6th generation 2018)*.

*Note for iPhone 7, iPhone 7 Plus, iPad 9.7-inch (6th generation 2018): iOS 12 or later is required.

Also compatible with all newer iPhone, iPad and iPod touch models.

Computers

Mac®: macOS® 10.6 or later. One free USB port.

Windows®: One free USB port. For low latency, the IK Multimedia's iRig audio driver must be installed. Download the iRig ASIO driver here.

Specifications

Microphone Input

Microphone Type: gooseneck

Capsule Type: condenser, electret

Polar Pattern: cardioid

Capsule Size: 0.55"

Frequency Response: 100 Hz - 15 kHz -3 dB

Maximum Sound Pressure: 130 dB SPL (1% THD @1kHz)

Sensitivity: -36dB (@1kHz, 0dB=1V/Pa)

S/N ratio: >75dB

Connector Type: male 3-pin XLR

Length: 47cm/18.5"

Weight: 140g/4.94oz
