KNA BZ-1A Bouzouki Active Pickup

$193.95
$229.00 $193.95 Save $35.05
Sale Sold out

Includes GST

Sold out right now. We may be able to order it in. Call or message us and we’ll check with the supplier.
Call 03 4151 5751 Send us a message

Similar options in stock now

Make 4 interest-free payments of $48.49 with Afterpay
or pay nothing today with Zip

Delivery & collection

Standard shipping Free

Ships once we’ve sourced it. We’ll confirm exact timing with you first.

Express shipping $15

1–3 business days depending on location.

Flat rate Australia-wide. Choose Express at checkout.

Click & Collect Free

From our Footscray showroom

Not sure it’s the right one? Talk to a player.

Call 03 4151 5751Send us a message
View full details

Description

SKU KNABZ1A

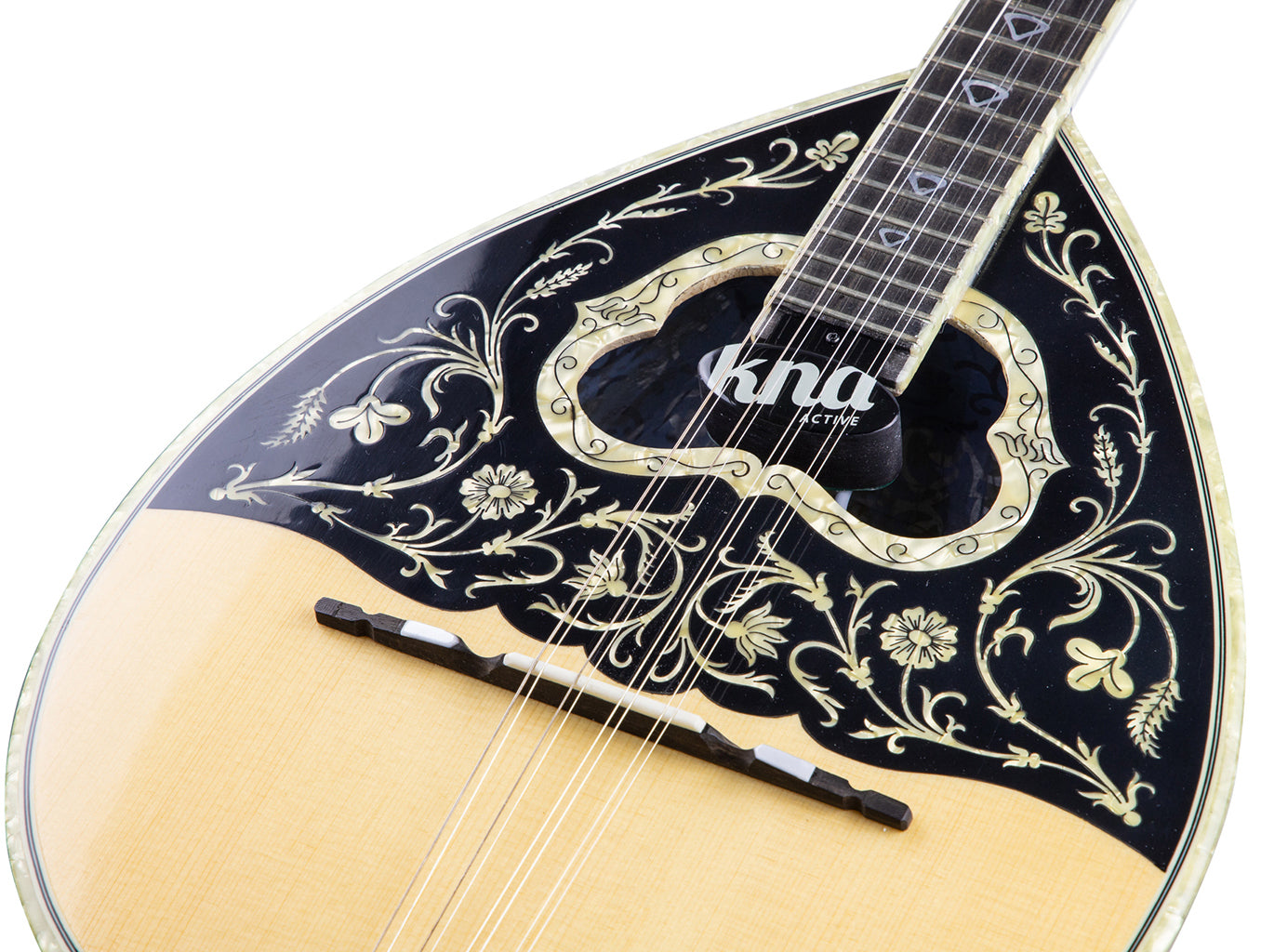

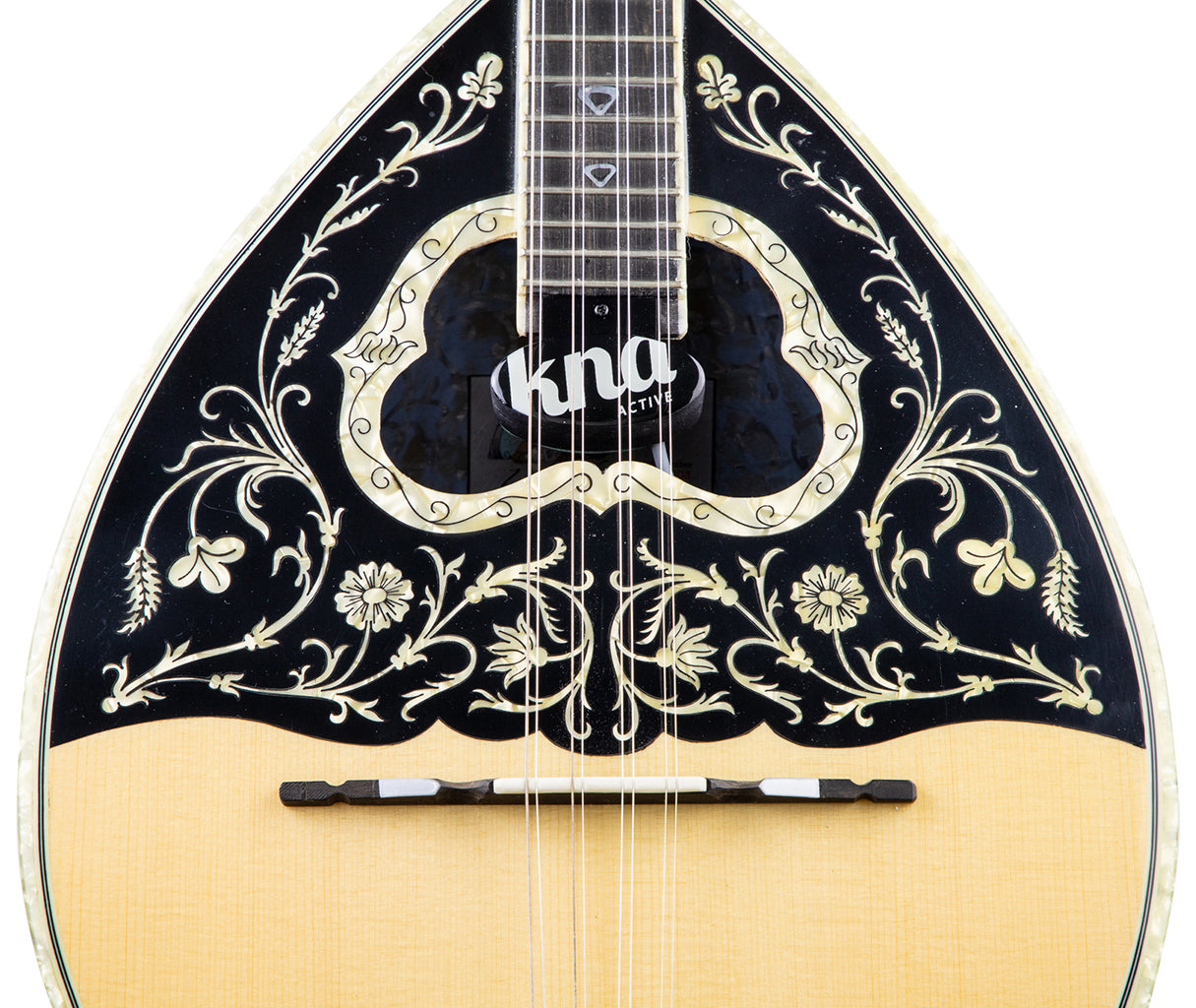

Humbucking, soundhole-mount design with active electronics for bouzouki BZ-1 converts your instrument's natural, resonant tone to a high-fidelity signal ready for an amp or audio mixer. Neodymium magnets in an active, humbucking design bring a warm, clear, and strong amplified tone with plenty of depth. BZ-1 offers a balanced output level between strings and installs without blocking the soundhole. Features: Universal fit to almost any stepped-fingerboard bouzouki The magnetic part of the pickup was developed to install in practically any bouzouki having a "step"—a flat surface at the end of the fingerboard. The clever design doesn’t block the soundhole of the bouzouki and doesn’t interfere with its resonance. Wooden housing The magnetic element is encased in laminated birch with an elegant and stylish black plastic cap. This lightweight assembly achieves maximum tonal sensitivity. Active design The built-in preamplifier reduces noise and eliminates string grounding. The pre-amp also shapes the tone of the pickup specifically for bouzouki. The pickup requires 2 CR2032 batteries for operation. Neodymium magnets BZ-1A utilizes the power of neodymium magnets to provide a warm, clear, and strong amplified tone with plenty of depth. Natural balanced sound BZ-1A offers a balanced output between strings, and captures and reproduces the natural, resonant tone of the bouzouki. Complete installation set The pickup features a single screw mount, a standard of many bouzouki pickups, and a pre-wired output jack. *NOTE: It is recommended that a professional technician installs thispickup DOWNLOAD INSTALLATION INSTRUCTIONS HERE

specifications

weight

45.35g. / 1.6oz

wood

Laminated birch

Pickup dimensions

Width

57.5mm / 2.26"

Length

27mm / 1.06"

Height (without battery compartment)

23mm / 0.91"

Height (with battery compartment)

35.5mm / 1.40"

Mounting plate dimensions

Width

32.2mm / 1.27"

Length

10.5mm / 0.41"

Height

1mm / 0.04"

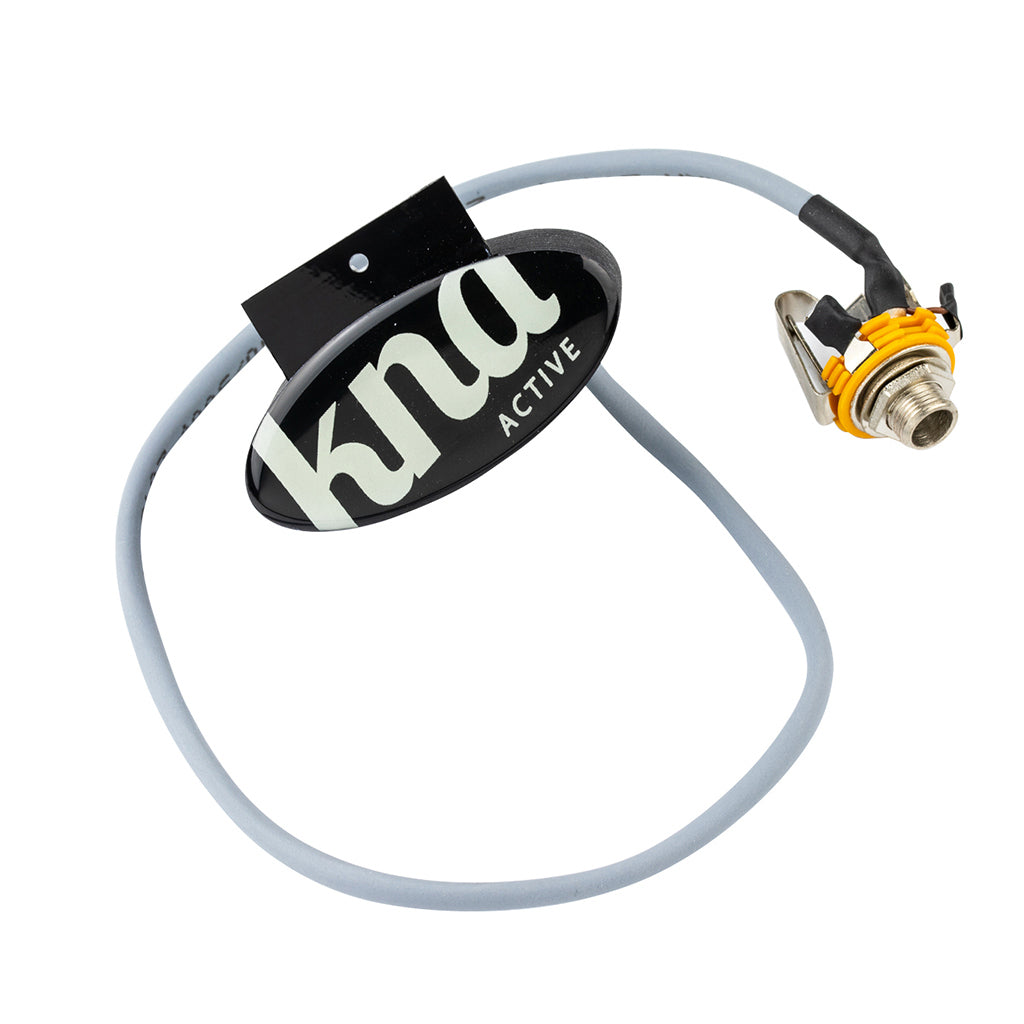

Lead wire cable

Length

33cm / 1.30"

Impedance

3k?
