• Korg ARP2600M Semi Modular Synthesizer Ltd Ed
  • Korg ARP2600M Semi Modular Synthesizer Ltd Ed — view 2
1 2
Korg

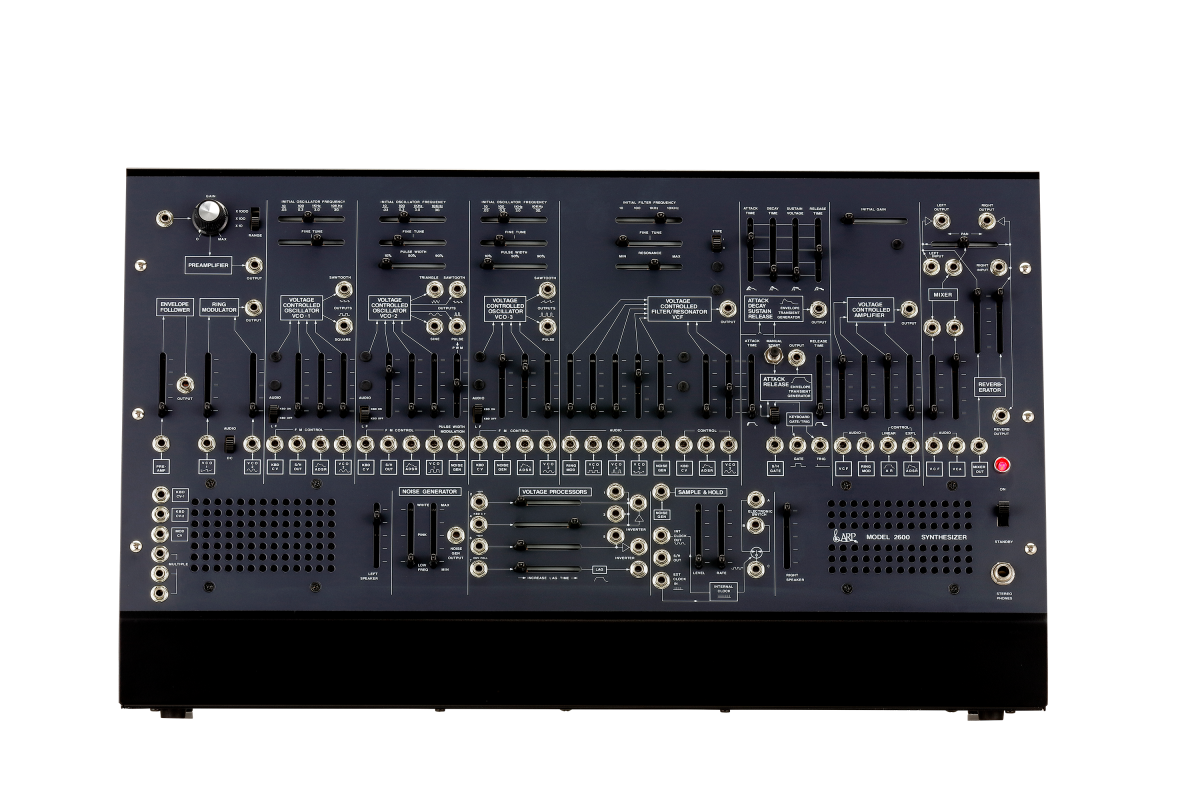

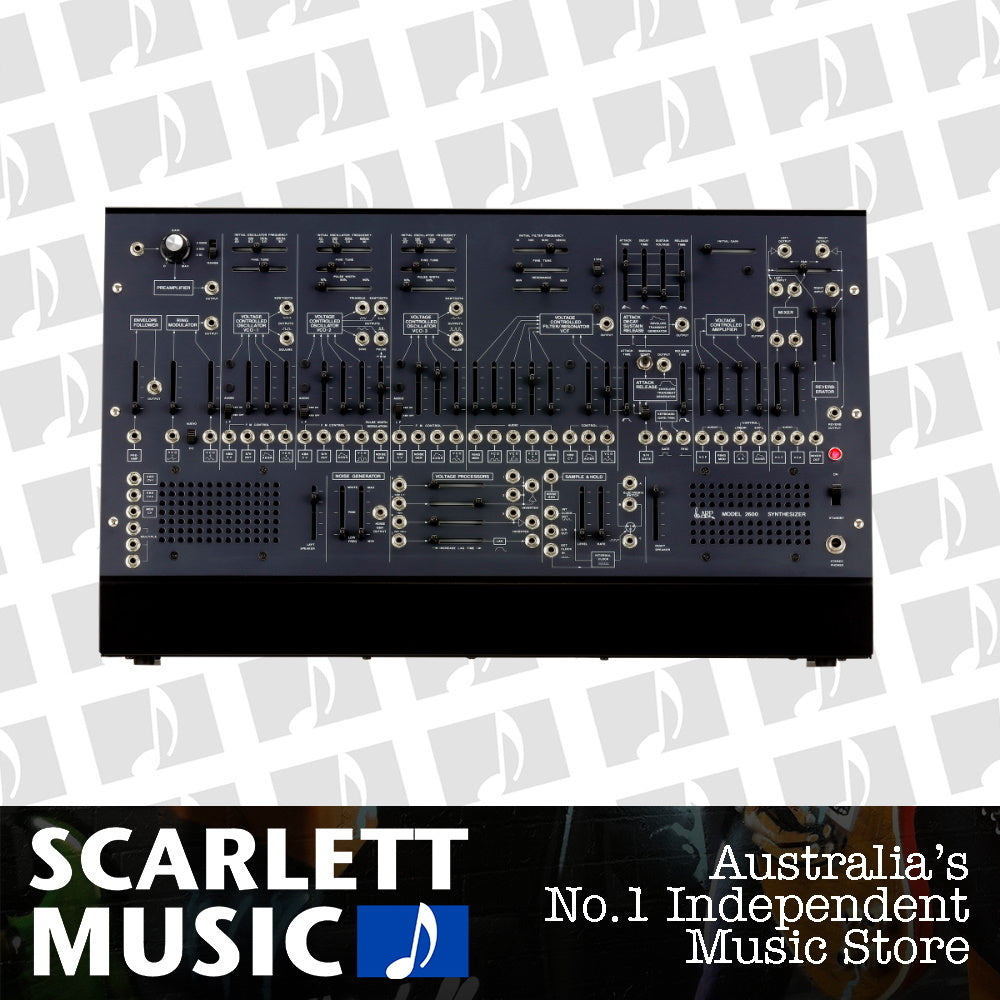

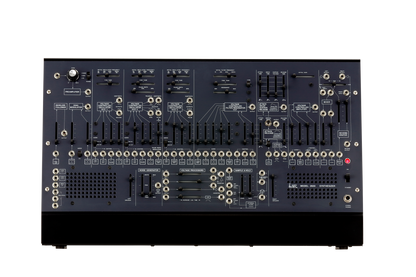

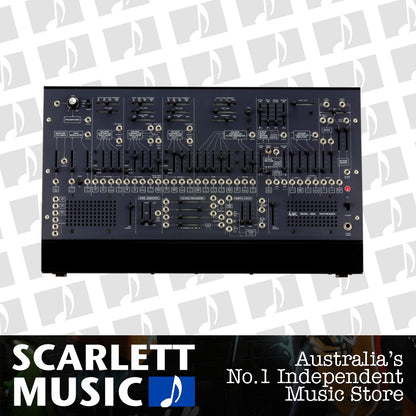

Korg ARP2600M Semi Modular Synthesizer Ltd Ed

$2,499.00
$3,199.00 $2,499.00 Save $700
Sale Sold out

Includes GST

Sold out right now. We may be able to order it in. Call or message us and we’ll check with the supplier.
Call 03 4151 5751 Send us a message

Similar options in stock now

Afterpay and Zip are available at checkout on orders $100–$2,000.

Delivery & collection

Standard shipping Free*

Ships once we’ve sourced it. We’ll confirm exact timing with you first.

Conditions apply.

Express shipping $15

1–3 business days depending on location.

Flat rate Australia-wide. Choose Express at checkout.

Click & Collect Free

From our Footscray showroom

Not sure it’s the right one? Talk to a player.

Call 03 4151 5751Send us a message
View full details

Description

SKU KO-ARP2600MLTD

The most iconic synth for the Modern musician



The genuine ARP 2600 in a more convenient size.

The ARP 2600 is arguably the most iconic and recognizable synthesizer of all time. Having been used in countless records, film scores, TV shows and game soundtracks since its appearance from the 70’s through to today, the ARP 2600’s sound remains an essential part of the music world.

The new ARP 2600 M delivers the sound admired around the world , in a more compact and portable format and including added features that make it the ideal incarnation of this historic synth.

Operating temperature range
0 – +40 °C (non‐condensing)
Maximum Polyphony
2 voices for duo phonic; normally monophonic
Waveforms
Sawtooth, square
Frequency range
Approx. 0.03 Hz – 30 Hz (low freq. mode)
Approx. 10 Hz - 10 kHz (audio mode)
Voltage controlled response
1V/oct.
VCO-1 (Voltage Controlled Oscilator 1)
Waveforms
Sawtooth, pulse (dynamic pulse), triangle, sine
Frequency range
Approx. 0.03 Hz – 30 Hz (low freq. mode)
Approx. 10 Hz - 10 kHz (audio mode)
Pulse width
10% – 90%
Voltage controlled response
1V/oct.
VCO-2 (Voltage Controlled Oscillator 2)
Waveforms
Sawtooth, pulse (dynamic pulse)
Frequency range
Approx. 0.03 Hz - 30 Hz (low freq. mode)
Approx. 10 Hz - 10 kHz (audio mode)
Pulse width
10% – 90%
Voltage controlled response
1V/oct.
VCO-3 (Voltage Controlled Oscilator 3)
Type
Low-pass (TYPE I : early 24 dB/oct., TYPE II: late 24 dB/oct.)
Frequency range
Approx. 10 Hz - 10 kHz
Resonance
1/2 - self oscillate
VCF (Voltage Controlled Filter)
Control voltage
AR type (internally connected)
ADSR type (internally connected)
VCA (Voltage Controlled Amplifier)
Noise generator
Noise spectrum types (white and pink)
Type
Analog multiplier
Input signal (Internally connected)
VCO-1 sawtooth wave, VCO-2 sine wave
RING MODULATOR
Sampled signal
Noise (internally connected)
SAMPLE & HOLD
Connector
φ3.5 mm monaural phone jack
Maximum output level
+9 dBu @ 10 kΩ load
Output impedance
1.2 kΩ
AUDIO OUTPUT JACKS
Front Panel (LEFT, RIGHT OUTPUT jacks
Connector
φ6.3 mm monaural phone jack
Maximum output level
+4 dBu @ 600 kΩ load
Output Impedance
1.2 kΩ
Side Panel
Connector
φ6.3 mm stereo phone jack
Maximum output level
50 mW + 50 mW @ 33Ω load
Output impedance
20Ω
HEADPHONES JACK
Connector
φ3.5 mm monaural phone jack
Maximum input level
+2dBu *RANGE x10, GAIN knob Max(
Input impedance
100kΩ
EXTERNAL AUDIO INPUT (PREAMPLIFIER INPUT) JACK
MIDI connector
IN
USB port
Type A, Type B

General

Power supply
AC power supply terminal (KA320)
Power consumption
13W
(W × D × H)
520 × 129 × 311 mm / 20.5 x 5 x 12.2 inches,
Weight
6.0 kg / 13 lbs.
Dimensions
Included Items
Road case, AC power cord (KA320), patch cables, Owner’s manual, ARP stickers, microKEY2-37
Accessories (Sold separately)
microKEY2 series, SQ-64 amongst others
