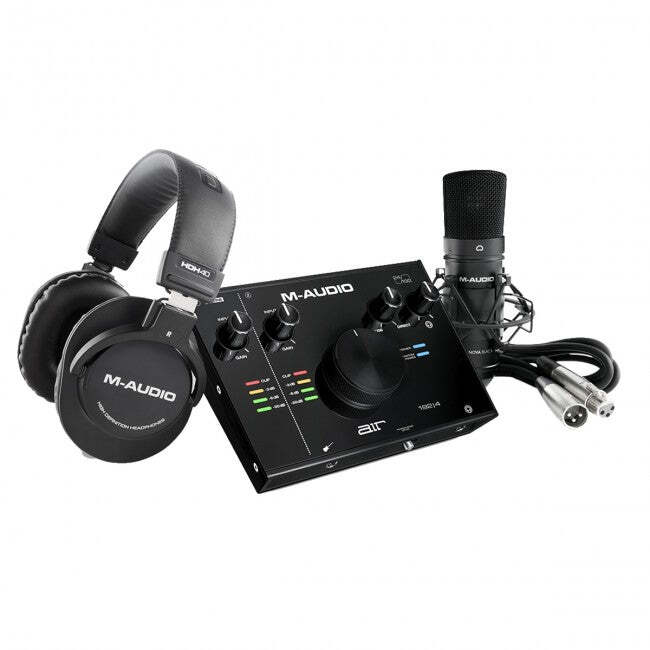

M-Audio AIR 192|4 Vocal Studio Pro USB Audio Interface w/ Microphone & Headphones

Studio Grade Production – Simplified!Enter the world of studio-based recording with the AIR 192|4 Vocal Studio Pro—the ultimate all-in-one solution for computer recording projects. Combining the critically acclaimed AIR 192|4 interface, HDH40 headphones, a Nova Black condenser microphone, XLR cable and the premium AIR Series Software Suite, laying down vocal tracks, recording electric and acoustic instruments and adding voice-overs to multimedia projects has never been easier. With the AIR 192|4 Vocal Studio Pro, the combination of high-performance hardware and easy-to-use software results in pro-grade audio capture for every recording scenario.

This is the creative center of your recording setup: The simple-to-use, style-infused AIR 192|4 audio interface is the perfect tool to record and produce natural-sounding 24-bit/192kHz studio-quality recordings. Combining one XLR+¼” balanced combo input and an all-new dedicated ¼” instrument input, the AIR 192|4 enables you to record two channels simultaneously.

Fusing an elegant pro-grade metal chassis, USB & USC-C connection cables, our exclusive Crystal™ low-noise pre-amps and pristine A/D converters that deliver the highest audio performance in their class, the AIR 192|4 provides all the tools you need to capture that initial idea and transform it into a finished masterpiece with ease. Take your music to the next level and start recording now!

Studio-grade recording demands the right tools for the job. M-Audio’s Nova Black large-diaphragm condenser microphone is perfect for podcasting applications or capturing high-quality audio from vocalists, instruments, percussion and more.

At the heart of the Nova Black microphone is an 18mm pure aluminum condenser capsule with a directional cardioid polar pattern. This delivers wide range frequency response (20–20kHz, resulting in a microphone that captures even the most subtle nuances.

Thanks to an included windscreen, a purpose-designed shock-mount for mounting to a traditional mic stand and an XLR cable, everything you need to get connected and start recording is included.

Software Included

Ableton Live Lite

Creative FX Collection

Xpand!2

Mini Grand

Touch Loops

Revalver - 2x Amps, 3x Cabs, 3x Mics, 3x Effects

MPC Beats

• 3 Virtual Instruments - TubeSynth, Electric, Bassline

• 80 FX Plugins - AIR Channel Strip, Half Time

• 2GB of factory content with bonus F9 instruments library

Specifications

Minimum System Requirements

macOS: 10.8 Class Compliant

PC: Windows 7, Windows Driver

Standard USB 2.0 or USB-C Port

NOVA Black Microphone

TYPE

Back Electret condenser microphone

ELEMENT

18 mm pure aluminum diaphragm capsule

POLAR PATTERN

Cardioid

FREQUENCY RESPONSE

20 Hz – 20 kHz

SENSITIVITY

-38 dB (0 dB = 1 V/Pa @ 1 kHz)

RATED IMPEDANCE

200?

MAXIMUM SPL

136 dB

PHANTOM POWER REQUIRED

+48 V

S/N RATIO

77 dB

CURRENT CONSUMPTION

3 mA

HDH40 Headphones

ACOUSTIC DESIGN

Dynamic, Closed

DRIVER

40 mm, neodymium

FREQUENCY RESPONSE

15 Hz – 22 kHz

SENSITIVITY

95 dB ±3 dB

RATED IMPEDANCE

32?

EARPAD

Leatherette

CABLE LENGTH

9.8 ft. / 3 m

Mic Input 1 (balanced XLR)

FREQUENCY RESPONSE

20 Hz – 20 kHz (+0.1 dB)

DYNAMIC RANGE

104 dB (A-weighted)

SIGNAL-TO-NOISE RATIO

104 dB (+1.0 dBu, A-weighted)

THD+N

0.003%

PREAMP EIN

-128 dBu (max gain, 150 ? source, A-weighted)

MAX INPUT LEVEL

+1.5 dBu

GAIN RANGE

55 dB

Line Input 1 (balanced 1/4" [6.35 mm] TRS)

FREQUENCY RESPONSE

20 Hz – 20 kHz (+0.05 dB)

SIGNAL-TO-NOISE RATIO

101 dB (1 kHz, +4 dBu, A-weighted)

THD+N

0.003%

MAX INPUT LEVEL

16 dBu

GAIN RANGE

55 dB

Inst Input 2 (unbalanced 1/4" [6.35 mm] TS)

FREQUENCY RESPONSE

20 Hz – 20 kHz (+0.05 dB)

DYNAMIC RANGE

100 dB (A-weighted)

SIGNAL-TO-NOISE RATIO

102 dB (+ 4 dBu, A-weighted)

THD+N

0.004%

MAX INPUT LEVEL

6 dBu

INPUT IMPEDANCE

1 M?

GAIN RANGE

24 dB

Main Outputs, L and R (impedance-balanced 1/4" [6.35 mm] TRS)

FREQUENCY RESPONSE

20 Hz – 20 kHz (+0.06 dB)

DYNAMIC RANGE / SIGNAL-TO-NOISE RATIO

102 dB (A-weighted)

THD+N

0.005%

MAX OUTPUT LEVEL

+7 dBu (1 kHz, -1 dBFS)

Headphone Output (impedance-balanced 1/4” [6.35 mm] TRS)

THD+N

0.005%

OUTPUT IMPEDANCE

10 ?

General

POWER

USB-bus-powered

DIMENSIONS (WIDTH X DEPTH X HEIGHT)

8.0” x 6.0” x 2.76” (20.42 cm x 15.24 cm x 7.0 cm)

WEIGHT

2.0 lbs. 0.9 kg
