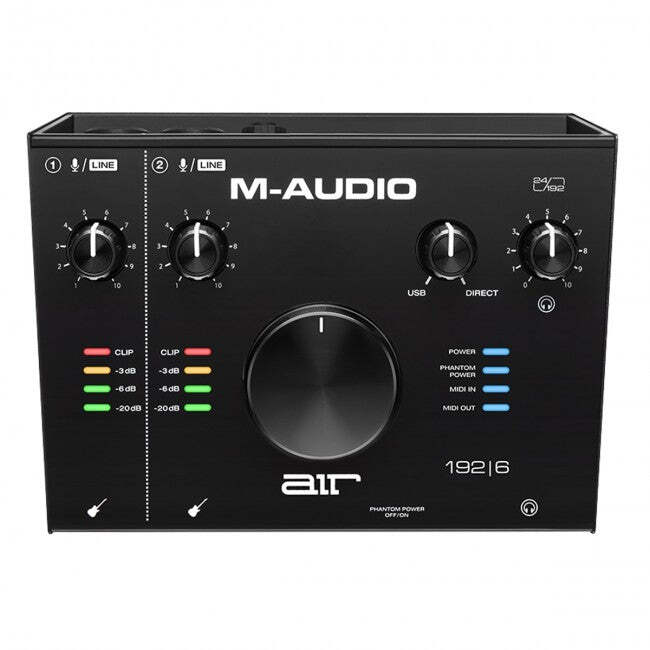

M-Audio AIR 192|6 USB Audio/Midi Interface 2-In/2-Out 24/192 Input/Output

Sets the new standard with professional studio-quality and features!With the AIR 192|6, you can create 24-bit/192kHz studio-quality recordings with an intuitive and easy-to-use audio interface. The AIR 192|6 enables you to record up to 2 channels at once with its 2 dedicated XLR+¼” balanced combo inputs, and 2 all-new ¼” instrument inputs that have a specially designed gain and impedance stage to provide the most accurate representation of a guitar or bass plugged directly into the interface. 5-pin MIDI In and Out connections are included for connecting synths, sequencers and other external MIDI gear.

Our engineers designed the Crystal™ Preamps to provide you with a transparent, low-noise preamp that guarantees the best sound from your microphones and captures your performance exactly the way you intended. The AIR 192|6 incorporates pristine A/D converters to provide 24-bit resolution digital audio for explosive dynamic range that captures every nuance and subtlety of your performance.

When recording, you want to focus on capturing that perfect moment, and getting the best performance out of your artist and talent. You don’t want to be bogged down by “clicks,” “pops” or latency. The AIR 192|6 not only features a high-speed USB connection for providing the lowest round trip latency (2.59ms*) between your machine and your hardware, but it also features monitor mix control for listening directly to the source inputs, providing you with zero-latency technology.

Software Included

Ableton Live Lite

Creative FX Collection

Xpand!2

Mini Grand

Touch Loops

Revalver - 2x Amps, 3x Cabs, 3x Mics, 3x Effects

MPC Beats

• 3 Virtual Instruments - TubeSynth, Electric, Bassline

• 80 FX Plugins - AIR Channel Strip, Half Time

• 2GB of factory content with bonus F9 instruments library

Specifications

Minimum System Requirements

macOS: 10.8 Class Compliant

PC: Windows 7, Windows Driver

Standard USB 2.0 or USB-C Port

Mic Inputs 1-2 (balanced XLR)

FREQUENCY RESPONSE

20 Hz – 20 kHz (+0.1 dB)

DYNAMIC RANGE

104 dB (A-weighted)

SIGNAL-TO-NOISE RATIO

104 dB (+1.0 dBu, A-weighted)

THD+N

0.002%

PREAMP EIN

-128 dBu (max gain, 150 ? source, A-weighted)

MAX INPUT LEVEL

+1.5 dBu

GAIN RANGE

55 dB

Line Input 1-2 (balanced 1/4" [6.35 mm] TRS)

FREQUENCY RESPONSE

20 Hz – 20 kHz (+0.05 dB)

SIGNAL-TO-NOISE RATIO

101 dB (1 kHz, +4 dBu, A-weighted)

THD+N

0.002%

MAX INPUT LEVEL

16 dBu

GAIN RANGE

55 dB

Inst Input 1-2 (unbalanced 1/4" [6.35 mm] TS)

FREQUENCY RESPONSE

20 Hz – 20 kHz (+0.05 dB)

DYNAMIC RANGE

100 dB (A-weighted)

SIGNAL-TO-NOISE RATIO

98 dB (+ 4 dBu, A-weighted)

THD+N

0.005%

MAX INPUT LEVEL

6 dBu

INPUT IMPEDANCE

1 M?

GAIN RANGE

24 dB

Main Outputs, L and R (balanced 1/4" [6.35 mm] TRS)

FREQUENCY RESPONSE

20 Hz – 20 kHz (+0.05 dB)

DYNAMIC RANGE / SIGNAL-TO-NOISE RATIO

106 dB (A-weighted)

THD+N

0.005%

MAX OUTPUT LEVEL

+13 dBu (1 kHz, -1 dBFS)

Headphone Output (1/4” [6.35 mm] TRS)

THD+N

0.005%

OUTPUT IMPEDANCE

10 ?

General

POWER

USB-bus-powered

DIMENSIONS (WIDTH X DEPTH X HEIGHT)

8.0” x 6.0” x 2.76” (20.42 cm x 15.24 cm x 7.0 cm)

WEIGHT

2.1 lbs. 0.95 kg
