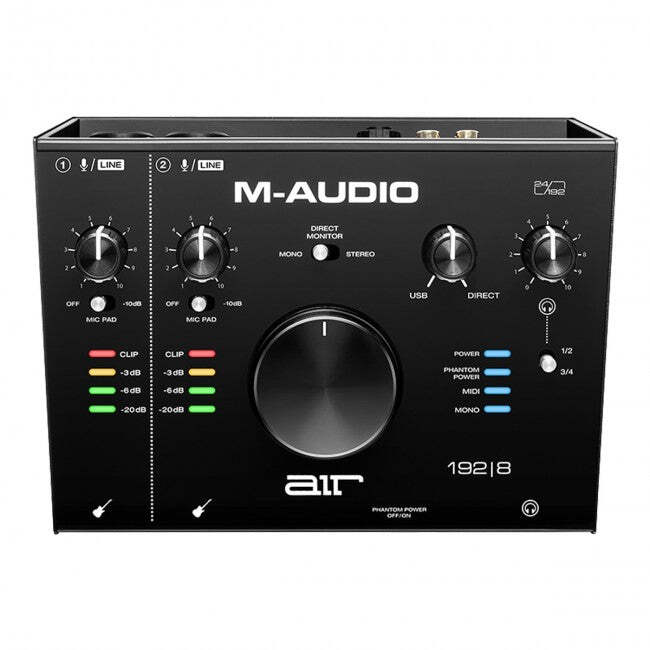

M-Audio AIR 192|8 Audio Midi Interface 2-In/4-Out 24/192 Input/Output

No-compromise professional studio quality and features at an amazing value!With the AIR 192|8, you can create 24-bit/192kHz studio-quality recordings with an intuitive and easy-to-use audio interface. The AIR 192|8’s flexible inputs enable you to record up to 2 channels at once with its 2 dedicated XLR+¼” balanced combo inputs with switchable -10dB mic pad, and 2 all-new ¼” instrument inputs that have a specially designed gain and impedance stage to provide the most accurate representation of a guitar or bass plugged directly into the interface. The (2) ¼” and (4) RCA outputs with USB/Direct control, and Direct Mono/Stereo switch provide multiple output options for connecting to outboard gear, DJ mixers, or studio monitors. The headphone output with independent level, USB/Direct, and switchable 1/2 or 3/4 audio stream controls are perfect for discretely listening to a cue mix, sub mix, or main mix. MIDI In and Out connections are included for connecting synths, sequencers and external MIDI gear.

Our engineers designed the Crystal Preamps to provide engineers, producers and musicians with a transparent, low-noise preamp that guarantees the best sound from your microphones and captures your performance exactly the way you intended. The AIR 192|8 incorporates pristine A/D converters to provide 24-bit resolution digital audio for explosive dynamic range that captures every nuance and subtlety of your performance.

When recording, you want to focus on capturing that perfect moment, and getting the best performance out of your artist and talent. You don’t want to be bogged down by “clicks,” “pops” or latency. The AIR 192|8 not only features a high-speed USB connection for providing the lowest round trip latency (2.59ms*) between your machine and your hardware, but it also features monitor mix control for listening directly to the source inputs, providing you with zero-latency technology.

Software Included

Ableton Live Lite

Creative FX Collection

Xpand!2

Mini Grand

Touch Loops

Revalver - 2x Amps, 3x Cabs, 3x Mics, 3x Effects

MPC Beats

• 3 Virtual Instruments - TubeSynth, Electric, Bassline

• 80 FX Plugins - AIR Channel Strip, Half Time

• 2GB of factory content with bonus F9 instruments library

Specifications

Minimum System Requirements

macOS: 10.8 Class Compliant

PC: Windows 7, Windows Driver

Standard USB 2.0 or USB-C Port

Mic Inputs 1-2 (balanced XLR)

FREQUENCY RESPONSE

20Hz – 20kHz (+/-0.1 dB)

DYNAMIC RANGE

104dB (A-weighted)

SIGNAL-TO-NOISE RATIO

104dB (+1.0dBu, A-weighted)

THD+N

0.001% (1kHz, +0.8dBu, -1dBFS)

PREAMP EIN

-126dBu (150?, unweighted)

MAX INPUT LEVEL

+1.8dBu

GAIN RANGE

60dB

Line Input 1-2 (balanced 1/4" TRS)

FREQUENCY RESPONSE

20Hz – 20kHz (+/-0.1dB)

SIGNAL-TO-NOISE RATIO

101dB (1kHz, +4dBu, A-weighted)

THD+N

0.002% (1kHz, +19.7dBu, -1dBFS)

MAX INPUT LEVEL

+20.7dBu

DYNAMIC RANGE

106dB (A-weighted)

Inst Input 1-2 (unbalanced 1/4" TS)

FREQUENCY RESPONSE

20Hz – 20kHz (+/-0.1dB)

DYNAMIC RANGE

106dB (A-weighted)

SIGNAL-TO-NOISE RATIO

98dB (+4dBu, A-weighted)

THD+N

0.001% (1kHz, +5.8dBu, -1dBFS)

MAX INPUT LEVEL

+6.8dBu

INPUT IMPEDANCE

~1M?

GAIN RANGE

24dB

Main TRS Outputs, 1/L & 2/R (balanced 1/4" TRS)

FREQUENCY RESPONSE

20Hz – 20kHz (+/-0.1dB)

DYNAMIC RANGE

109dB (A-weighted)

THD+N

0.003% (1kHz, -1dBFS)

MAX OUTPUT LEVEL

+13dBu

Main & Aux RCA Outputs 1 - 4 (Unbalanced RCA)

FREQUENCY RESPONSE

20Hz - 20kHz (+/-0.1dB)

DYNAMIC RANGE

109dB (A-weighted)

THD+N

0.003% (1kHz, -1dBFS)

MAX OUTPUT

+7dBu

Headphone Outputs (Stereo 1/4" TRS)

DYNAMIC RANGE

101dB

THD+N

0.008% (1kHz, -1dBFS, 36mW)

MAX POWER

36mW (32-ohm load)

MIN IMPEDANCE

32-ohm
