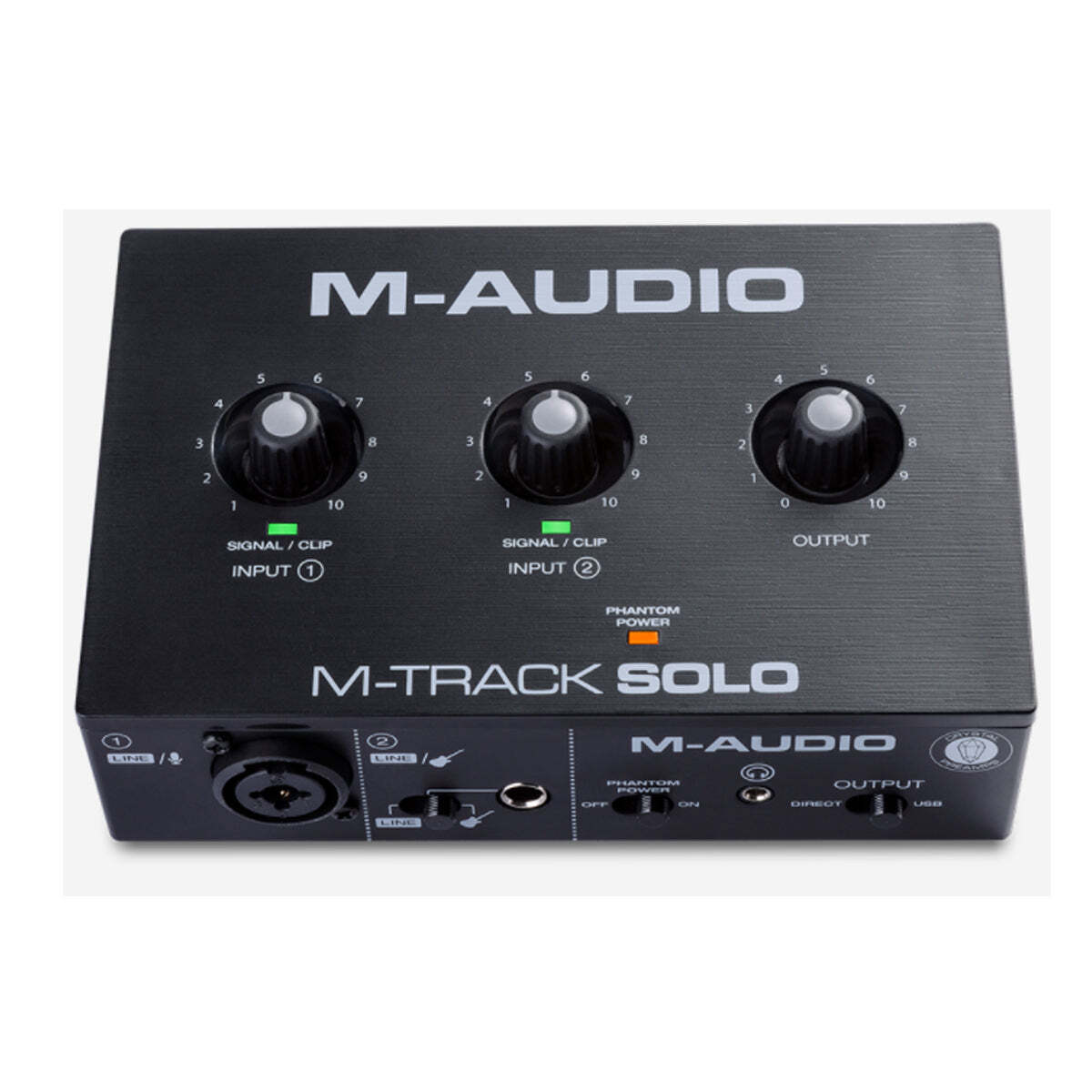

M-Audio M-Track Solo USB Audio Interface

M-Track Solo

48-KHz, 2-channel USB Audio Interface with 1 Crystal Preamp, Phantom Power and Instrument Input

The M-Track Solo is the best, most portable recording interface in its class. It delivers 24-bit/48 kHz audio resolution in a compact and easy to use format that is ideal for creating music on any Mac, PC or iOS device. This versatile interface works great for recording any type of sound source and features a single Combo Crystal Preamp with phantom power, plus a switchable Line / Instrument input making it compatible with any guitar or microphone. Plus, with M-Track Solo's 2-channel recording you can use both line inputs simultaneously to capture digital pianos, drum machines or any other stereo 1/4" device. M-track Solo is completely powered by USB, removing the need for an external power supply and making it perfectly portable for recording on-the-go. Throw it into your bag, grab a laptop, and create your next podcast, song, or mix anywhere you want!

Direct Monitoring & Headphone Connection

M-Track Solo offers zero-latency monitoring of the input signal through both the main RCA outputs and 1/8” headphone outputs. The USB/Direct switch adjusts the balance between the direct inputs and the playback from your computer software. This makes it easy to record new parts or add parts to an existing composition.

Start Recording Immediately

The M-Track Solo comes with a complete software package that has everything you need to get started right out of the box. Included are 2 great digital audio workstations (DAW)–Pro Tools | First M-Audio Edition and MPC Beats. These DAWs make it easy and fun to create professional sounding podcasts, music, or beat productions on any Mac or PC.

Software Included

MPC Beats

• 3 Virtual Instruments - TubeSynth, Electric, Bassline

• 80 FX Plugins - AIR Channel Strip, Half Time

• 2GB of factory content with bonus F9 instruments library

Revalver - 2x Amps, 3x Cabs, 3x Mics, 3x Effects

Specifications

Mic Input (balanced XLR)

Frequency Response

20 Hz – 20 kHz (+0.1 dB)

Signal-to-Noise Ratio

109 dB (A-weighted)

THD+N

0.003% (min. gain, 0 dBu out, A-weighted)

Preamp EIN

-128 dBu (max. gain, 40 ? source, A-weighted)

Gain Range

0 dB to +54 dB

Line Input (balanced 1/4" [6.35 mm] TRS)

Frequency Response

20 Hz – 20 kHz (+0.1 dB)

Sensitivity

-43 dBu

THD+N

0.002% (min. gain, 0 dBu out, A-weighted)

Gain Range

-10 dB to +44 dB

Instrument Input (unbalanced 1/4" [6.35 mm] TS)

Frequency Response

20 Hz – 20 kHz (+0.1 dB)

THD+N

0.005% (min. gain, 0 dBu output, A-weighted)

Input Impedance

1 M?

Gain Range

-10 dB to +44 dB

RCA Outputs

Frequency Response

20 Hz – 20 kHz (+0.1 dB)

Signal-to-Noise Ratio

109 dB (A-weighted)

THD+N

0.002% ( 0 dBu output, A-weighted)

Max Output Level

+4 dBu

Headphone Output (1/8” [3.5 mm] TRS)

Power

60 mW/Ch, 32 ?

Frequency Response

20 Hz – 20 kHz (+0.5 dB)

THD+N

0.02% (A-weighted)

Signal-to-Noise Ratio

100 dB (A-weighted)

What’s In The Box

M-Track Solo

USB-B–to–USB-A Cable

Software Download Cards

User Guide

Safety & Warranty Manual
