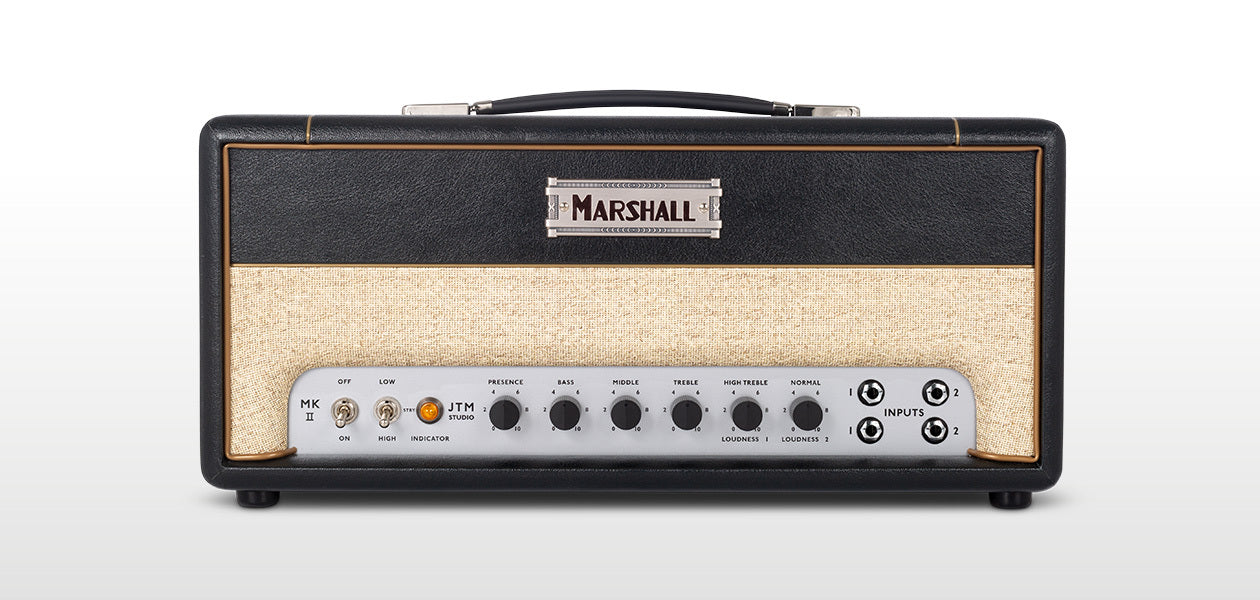

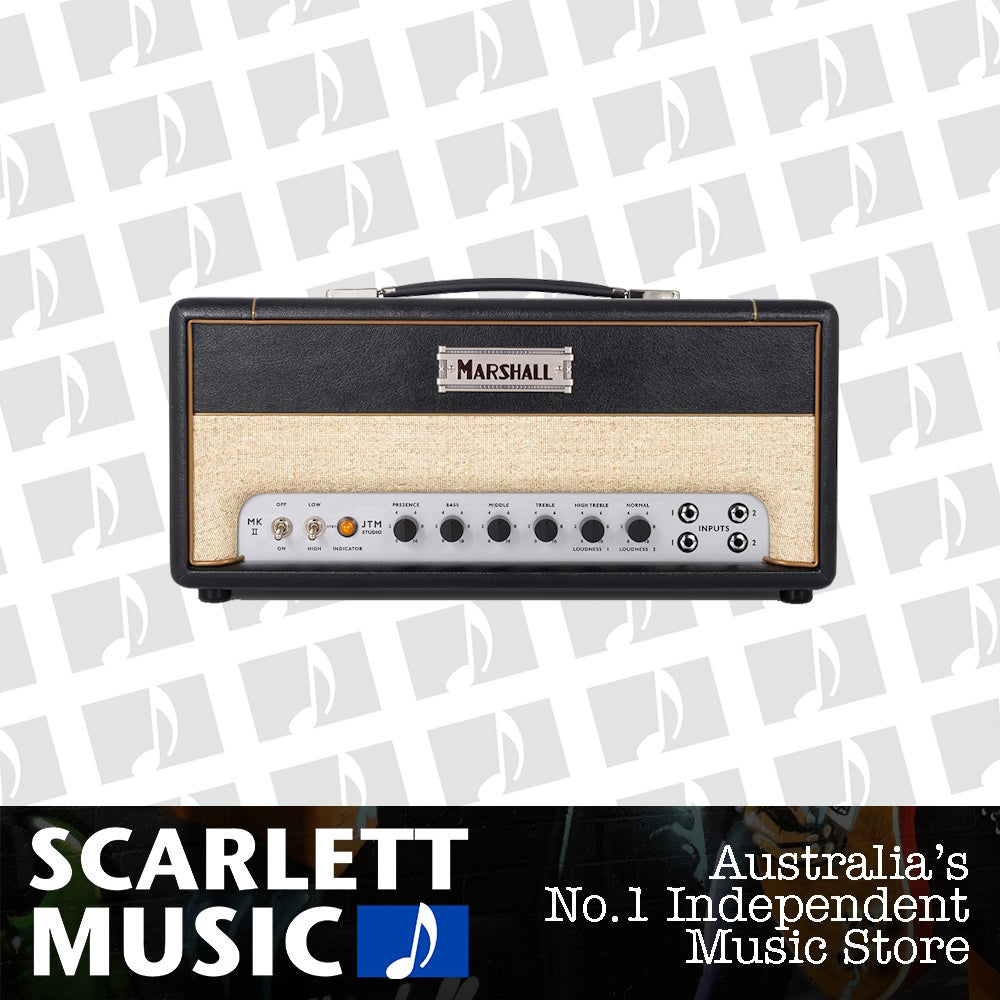

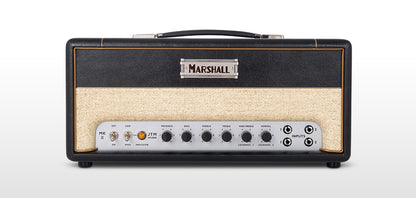

ST20H
The unrivalled number one is here, just smaller. Reproducing the legendary, warm and smooth tones of the original Marshall JTM, the Studio JTM packs a punch. Swap between 20W and 5W at the flick of a switch and let the era-defining sound of the JTM steal the show, whether it’s playing at home, or on stage. Make sure to pair the ST20H with one of our Studio cabinets for a small but perfectly formed Marshall rig.
Technical specification
General
Model
ST20H
Range
Studio
Technology
Valve
Channels
1 with 2 voicings
Electronics
Output wattage
20W (with power reduction option to 5W)
Outputs
5 x 1/4” jack sockets (16Ω load / 8Ω load / 4Ω load)
Inputs
4 x 1/4" jack instrument inputs (high/low sensitivity)
Controls
Treble, Middle, Bass and Presence
Effects
None
Effects loop
Yes, send/return
Valves
Preamp valves
2 x ECC83, 1 x ECC83 (phase splitter)
Power amp valves
2 x 5881
Accessories
Cable
Detachable power cable included
Cable
Speaker cable included
Dimensions (including feet and handle)
Weight
9.25kg / 20.4lbs
Width
500mm / 19.7"
Height
240mm / 9.4"
Depth
230mm / 9.1"
