• Mooer 'Tube Engine' 20 Watt Class A/B Tube Power Amp
1 1
Mooer

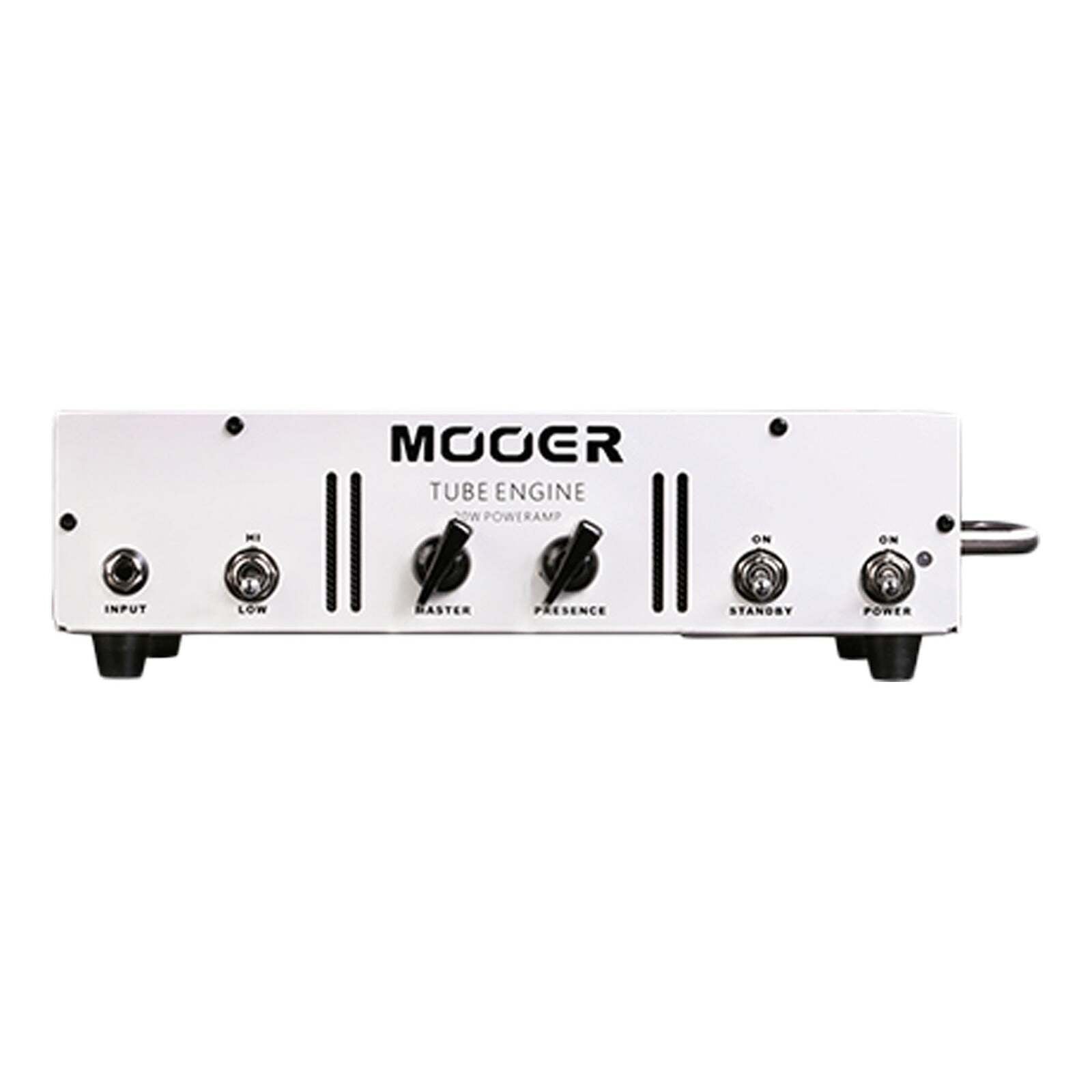

Mooer 'Tube Engine' 20 Watt Class A/B Tube Power Amp

$638.95
$799.00 $638.95 Save $160.05
Sale Sold out

Includes GST

Sold out right now. We may be able to order it in. Call or message us and we’ll check with the supplier.
Call 03 4151 5751 Send us a message

In stock now in Amplification

Make 4 interest-free payments of $159.74 with Afterpay
or pay nothing today with Zip

Delivery & collection

Standard shipping Free*

Ships once we’ve sourced it. We’ll confirm exact timing with you first.

Conditions apply.

Express shipping $15

1–3 business days depending on location.

Flat rate Australia-wide. Choose Express at checkout.

Click & Collect Free

From our Footscray showroom

Not sure it’s the right one? Talk to a player.

Call 03 4151 5751Send us a message
View full details

Description

SKU MEP-TEJD

The Mooer MEP-TE Tube Engine is a 20 Watt, all tube power amp. This Class A/B tube circuit utilizes hand-picked and matched sets of EL84 tubes to provide the perfect platform for use with your preamp pedals, amp modellers and effects units.

The Tube Engine is fairly transparent, allowing the real tone of your other units to shine through whilst adding just enough warmth and colour to make this a viable and different choice over solid-state alternatives.

The Tube Engine is housed in a light-weight metal chassis and comes complete with a carry handle and rack mounting lugs.

Features:

20 Watt class A/B tube power amp

Hi/Low gain input

Strong, light-weight metal chassis

Supplied with carry handle and rack mounting lugs

1 x 12AX7 (ECC83), 1 x 12AT7 (ECC81), 2 x EL84 (6BQ5)

Outputs for 1 x 16 , 1 x 8X EL84 (6BQ5)

Outputs for 1 x 16? , 1 x 8? or 2 x 16?

Specs:

Power Output: 20 Watts

Preamp Tube: 12AT7 (ECC81) x 1; 12AX7 (ECC83) x 1

Power Tube: EL84 (6BQ5) x 2

Power Requirements:

100~120V 50/60Hz; FUSE: T1AL/250V

220~240V 50/60Hz; FUSE: T0.5AL/250V

Dimensions: 335 mm (D) x 203 mm (W) x 91 mm (H)

Weight: 5.252 kg

Accessories: AC Power Cord, Owner’s Manual, Rack mounting lugs
