Nady Systems

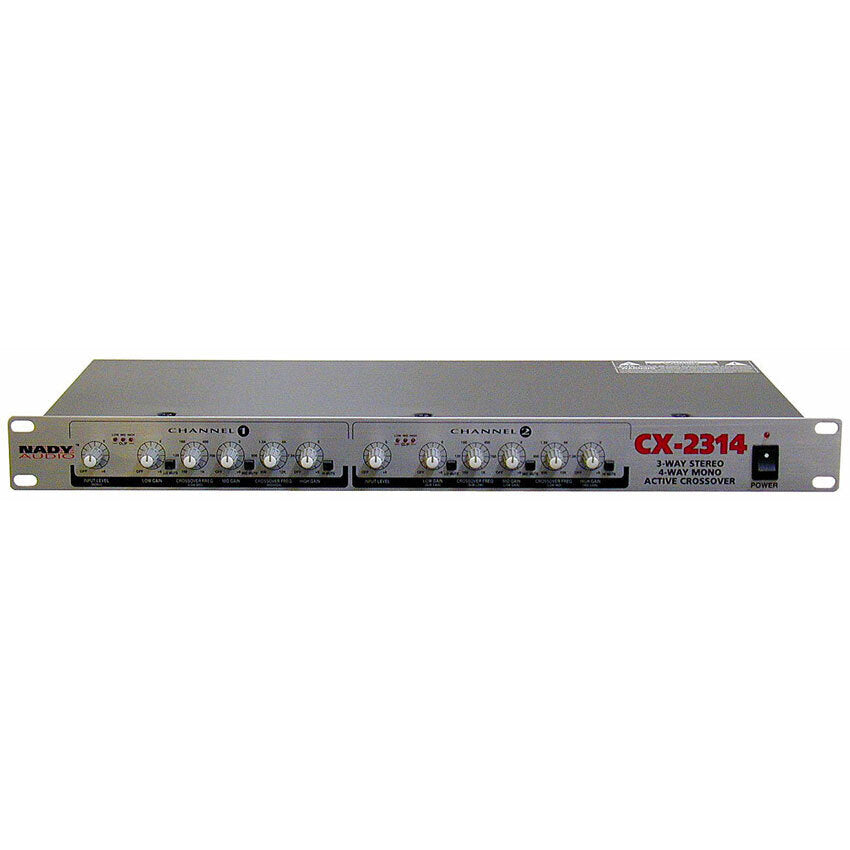

Nady CX-2314 Active 3-Way Stereo 4-Way Mono Crossover

$469.00
$469.00

Includes GST

In stock at our warehouse. Order now and it ships in 1–3 business days with tracking.
Not on the Footscray shop floor. We’ll bring it in for you to collect in 1–3 business days.
Make 4 interest-free payments of $117.25 with Afterpay
or pay nothing today with Zip

Delivery & collection

Standard shipping Free

Dispatched in 1–3 business days with tracking, then 4–9 business days depending on location.

Express shipping $15

1–3 business days depending on location.

Flat rate Australia-wide. Choose Express at checkout.

Click & Collect Free

From our Footscray showroom

It’s not on the shop floor yet, so we’ll bring it in and email you when it’s ready (usually 1–3 business days).

Not sure it’s the right one? Talk to a player.

Call 03 4151 5751Send us a message
View full details

Description

SKU NACX2314

The Nady CX-2314 Active, 3-way stereo, 4-way mono crossover. Nady offers a variety of options for virtually all live sound reinforcement amplifier configurations, the CX Series makes state-of-the-art crossover technology affordable. FEATURES: Single rack space (1U) metal housing Top audio performance with high slew rate circuitry and over 115dB dynamic range for clear transparent sound Designed for the most precise accurate control Phase inversion switches Low-cut subsonic filters for low frequency driver protection Servo-balanced XLR inputs Switchable constant directivity horn equalization circuit for use with horns requiring a high frequency boost State-variable Linkwitz Riley 24dB/ octave filters Shielded internal power supply with AC voltage select switch (~115V/60Hz or ~230V/50Hz) SPECIFICATIONS: Frequency Response Low Frequency Output: 10HZ +/- 0.5dB High Frequency Output: 20KHz +/-1.0dB Total Harmonic Distortion RL: >2k? Low Frequency Output: < 0.01% THD High Frequency Output: <0.02% THD Maximum Output Level RL: >2k? +21 dBu (6.2 volts) @ < .05% THD 20Hz - 20kHz Maximum Voltage Gain : 6dB Constant-Directivity Correction : +3dB @ 3.5kHz rising at 6 dB/octave to 22.5kHz Power Supply: 115V(60Hz) / 230V(50Hz) selectable Fuse : 0.5A/250V, 5x20 mm Frequency Range Low Mid (X1): 100Hz to 920Hz Mid-High (X10): 800Hz to 9.2kHz Hum and Noise (20Hz- 20kHz) : Av=0 dB. fc=230.2.3kHz Low Frequency Section Output @0dB: <-98dBu Mid Frequency Section Output @ 0dB: <-95dBu High Frequency Section Output @ 0dB: <-93dBu Signal-To-Noise Ratio : 114dB Controls Input Level: Continuously variable Output Level: Low, High cont. Variable Phase: Rear panel switch Mute: Low. Mid, High front panel switches CDBoost: Rear panel switch Channel link: Rear panel switch Dimensions: 19" x 7.7" x 1.7" (483 x 194.5 x 44 mm) Weight: 5.5 lbs (2.5 Kg)
