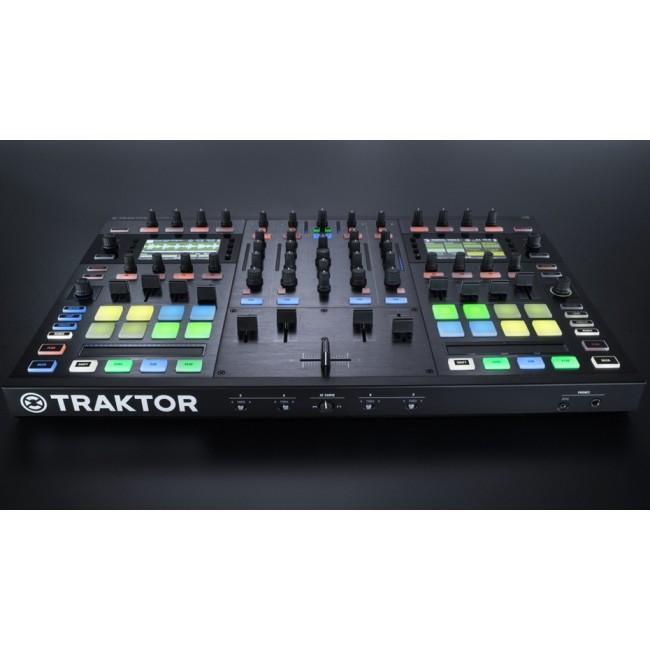

Native Instruments Traktor Kontrol S8 DJ Surface Controller

Product Information:

FLAGSHIP ALL-IN-ONE DJ SYSTEM

Cutting-edge DJ controller, decks, and stand-alone mixer

Stunning high-res displays react to touch-sensitive controls

Plug-and-play with included TRAKTOR SCRATCH PRO software

Introducing TRAKTOR KONTROL S8: The flagship all-in-one DJ controller

THE FUTURE OF DJING

Experience a new way to mix and perform with TRAKTOR KONTROL S8 – a 4-channel

stand-alone mixer, professional audio interface, and enhanced performance decks

for ultimate control over the included TRAKTOR SCRATCH PRO software.

Touch-sensitive controls and high-res displays deliver DJ workflow that is truly

cutting-edge.

CONNECT WITH YOUR CROWD

Get physical with the music. Touch-sensitive knobs, faders, and LED-guided touch

strips bring TRAKTOR software to life on vivid full-color displays, keeping you

focused on performance – not on your laptop. The S8’s touch-and-see workflow

means you connect with your music – and with your crowd.

MORE ON WORKFLOW ENHANCEMENTS

HIGH-RESOLUTION DISPLAYS

Two high-res color displays put TRAKTOR software in plain sight. Browsing, track

info, effect, and filter values come into view directly in front of you. Keep an

eye on the running track’s ultra-crisp vector waveform. Or access Remix Decks in

full view.

REMIX IN THE MOMENT

Create your signature sound with responsive Remix Deck controls. Intuitively mix

in sounds with 4+4 channel Remix Deck faders. Plus, live capture and trigger

your own samples and loops using 16 color-coded performance pads.

Your style. Your sound. This is enhanced DJ performance.

BUILT FOR PERFORMANCE

Connect anything your setup needs – TRAKTOR KONTROL S8 boasts the most expansive

connectivity on a DJ controller yet. The on-board 4-channel mixer features

unique wear-resistant faders that offer unprecedented durability.

Plus, TRAKTOR Mode buttons on every mixer channel switch between TRAKTOR and

stand-alone mode – ideal for handing the night over to the next DJ.

VIEW HARDWARE DETAILS

DESIGNED FOR TRAKTOR PRO SOFTWARE

TRAKTOR KONTROL S8 is built for seamless control of the included TRAKTOR SCRATCH

PRO 2* – the choice DJ software of countless professionals worldwide. Get

in-depth control of your music with up to four software decks, customizable

interface, timecode media, and advanced track library management.

Specifications:

SYSTEM REQUIREMENTS

Mac OS X 10.8 or 10.9 (latest update), Intel® Core™ i5, 4 GB RAM

Windows 7 or 8 (latest Service Pack, 32/64 Bit), 2.0 GHz Intel® Core™ i5 or AMD

A-Series, 4 GB RAM

SUPPORTED AUDIO FORMATS

MP3, WAV, AIFF, Audio-CD, FLAC, Ogg Vorbis, non-DRM WMA**, non-DRM AAC

** WMA playback supported only on Windows

GENERAL

Monitor with 1024 x 768 screen resolution, USB 2.0 or higher, OpenGL version 2.1

or higher, 1.5 GB free disc space, high-speed internet connection (for

installation)

DIMENSIONS

Depth: 38.7 cm, Height: 6,6 cm, Width: 58,5 cm, Weight: 5 kg

HARDWARE SPECIFICATIONS

Audio Inputs (A/D)

Channels 4 Stereo

Sample Rate 48kHz

Bit Resolution 24-bit

Converter Cirrus Logic

Line Inputs

Full Scale Level +13 dBu

DNR (a-weighted) 113 dB

THD+N 0.001%

Frequency Response 20 Hz - 20 kHz, +/- 0.1 dB

Cross Talk @ 1kHz -116 dB

Mic Input

Full Scale Level @ 1 kHz -7.2 dBu

DNR (a-weighted) @ 1 kHz 104 dB

THD+N @ 1KHz 0.006%

Frequency response 20 Hz - 20 kHz, +/- 0.6 dB

Phono Inputs

Input Impedance 47 KOhm

Full Scale Level @ 1 kHz - 23.8 dBu

DNR (a-weighted) @ 1 kHz 84 dB

THD+N @ 1KHz 0.002%

Crosstalk @ 1kHz -105 dB

Audio Outputs (D/A)

Channels 2 Stereo

Sample Rate 48 kHz

Bit Resolution 24-bit

Converter Cirrus Logic

Line Outputs (XLR & 1/4" Booth)

Maximum Output Level +20 dBu

DNR (a-weighted) 108 dB

THD+N 0,001%

Frequency Response 20 Hz - 20 kHz, +/- 0.2 dB

Crosstalk @ 1kHz -115 dB

Line Outputs (RCA)

Maximum Output Level +14 dBu

DNR (a-weighted) 108 dB

THD+N 0,001%

Frequency Response 20 Hz - 20 kHz, +/- 0.1dB

Crosstalk @ 1kHz -117 dB

Headphone Output

Load Impedance 16 Ohms – 600 Ohms

Maximum Output Level (32 Ohm load) +7.2 dBu

DNR (a-weighted) 109 dB

THD+N 0.07%

Frequency Response 20 Hz - 20 kHz, +/- 0.2 dB

Crosstalk @ 1kHz -63 dB
