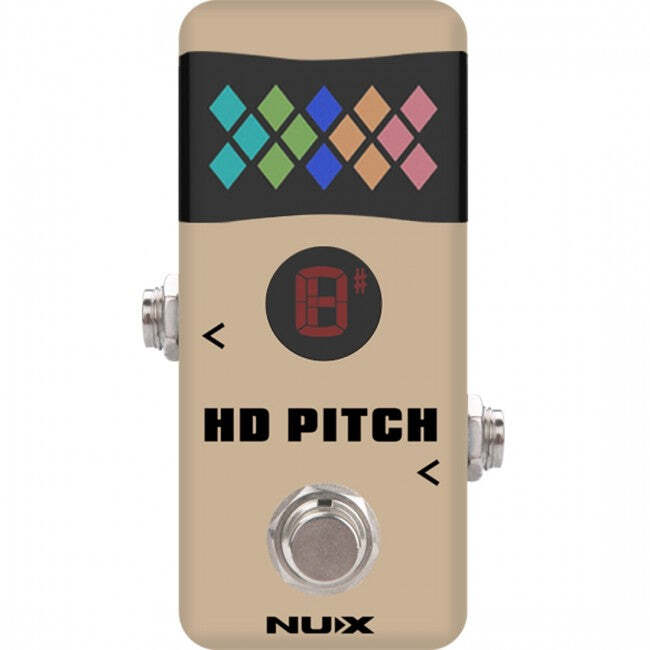

NU-X HD PITCH Mini Tuner Pedal

Precise Tuning / Signal Correction

NUX HD PITCH Mini Pedal Tuner is a precise tuner with full colored

LED screen and HD visuals. And it is perfect to be "first" in a

signal chain.

When you engage the pedal, it's an accurate tuner.

When you disengage the pedal, it's a signal buffer (in Buffer Bypass

mode).

This Mini-Pedal Tuner is a whole new breed, created and developed

with our latest technology yielding an ultra-fast response time, and

unmatched precision tuning. It has 2 bright LED screens that

display: notes, tuning, calibration, and bypass mode.

Tuning Visual 1 Arrow Mode

Tune your instrument until the LED indicator at the center is lit.

If the LED is on “left” the pitch is flat, LED is on ‘’right” the

pitch is sharp.

Tuning Visual 2 Strobe Mode

Tune your instrument until the LED indicator stops running. The LED

indicators will be running from “right to left” if the pitch is

SHARP, and “left to right” if the pitch is FLAT.

Bypass Mode

HD pitch mini pedal tuner offers selectable True Bypass and Buffer

Bypass modes to deliver your signals according to your needs in the

effect pedal chain.

Switching the Bypass Mode: Before you plug the power cable, hold the

foot-switch then connect the power. Note display screen will show

the selected mode.

True Bypass mode: Pedal will MUTE the sound during the tuning.

Buffer Bypass mode: When tuning, you can switch between SILENT and

AUDIO-ASSIST modes. And when you switch between Silent Mode and

Audio-Assist, tuning screen displays the mode as shown below.

Besides audio-assist or silent tuning, HD PITCH Tuner’s Bypass mode

selection is designed to be more efficient in any case of signal

chain needs.

True Bypass, which is preferred the most, you can think of HD PITCH

Tuner's Input directly wired to the Output. When the pedal is in

bypass mode, the guitar signal is routed to the next pedal without

any interference.

But HD PITCH Tuner's Buffer Bypass mode allows you to avoid some

true bypass circumstances and your guitar signal will reach the end

of your chain without any tone loss.

Altered Signal

HD PITCH Tuner is perfect to be the first pedal in the chain.

Optional Buffer Bypass

Modern musicians are usually connecting more than 5 pedals on the

pedalboard. According to the guitar, the pickup is high impedance,

while you connected with many pedals OR with long cables, and with

tone sucking pedals, you need to change the guitar signal from High

Z (high impedance) to Low Z (low impedance) to solve Tone Loss

situation (capacitance & inductance effect). And each pedal will

carry the buffered signal which is very convenient if you already

added some modulation effects into the signal path. And the best

position for the buffer is the first place. That's also where the

tuner placed, and we combine the tuner and the buffer into a mini

size to save your pedalboard space.

Why Relay Buffer?

There are 3 typical buffer circuit designs: OP-AMP, BJT, and FET.

The FET buffer circuit could generate Even Harmonics. This is quite

similar to tube amplifiers, which almost every musician loves.

And Relay Buffer has the same performance as FET buffer, we add the

optional buffer bypass function as FET buffer works for your guitar

signal. Specifications:

?Tuning Range A0 (27.5 Hz) to C8 (4186 Hz)

?Tuning Accuracy ±0.1 cent

?Reference Pitch A4 = 436-445 Hz

?Input Impedance 1M ohm

?Output Impedance 1K ohm

?Power Input Standard 9V DC, center negative >100mA (power supply not included)

?Weight 174g/ 6 oz

?Dimensions 94(L)×51?w?×53?H?mm | 3.7(L)×2.0?W?×2.08?H?inches
