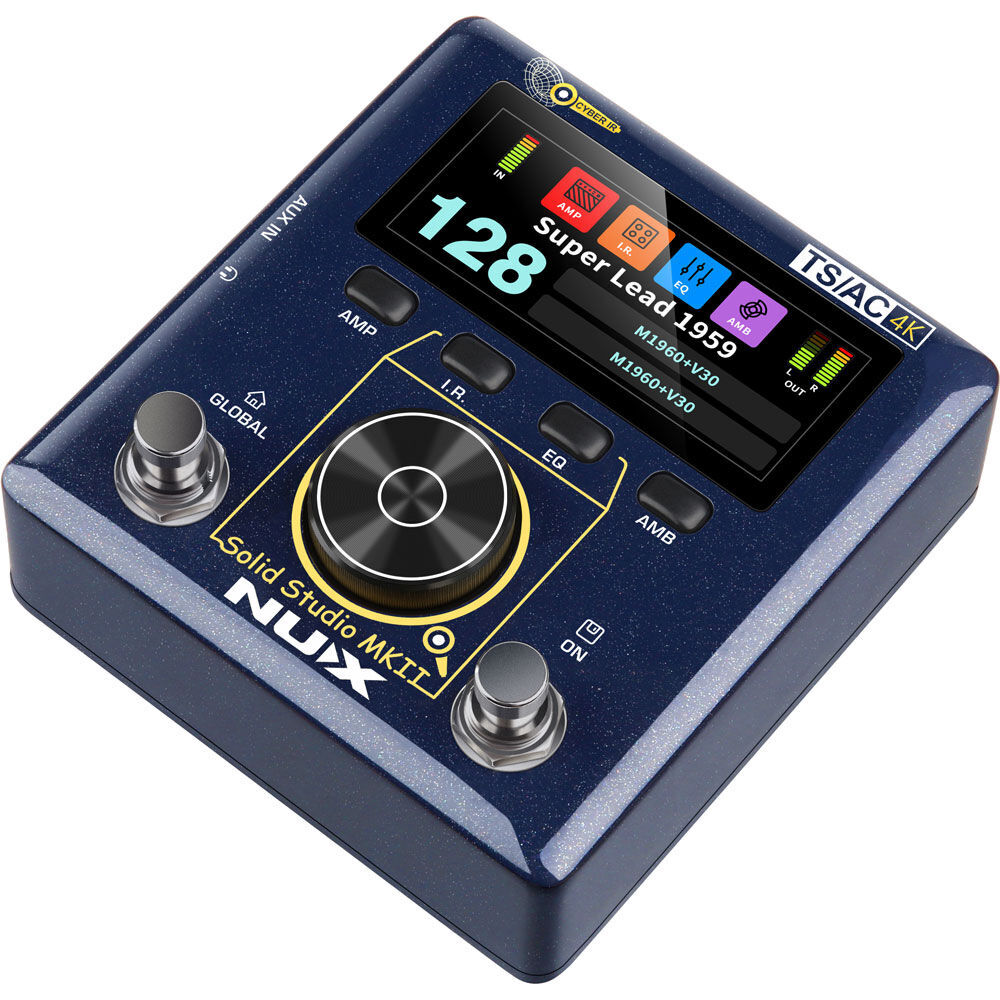

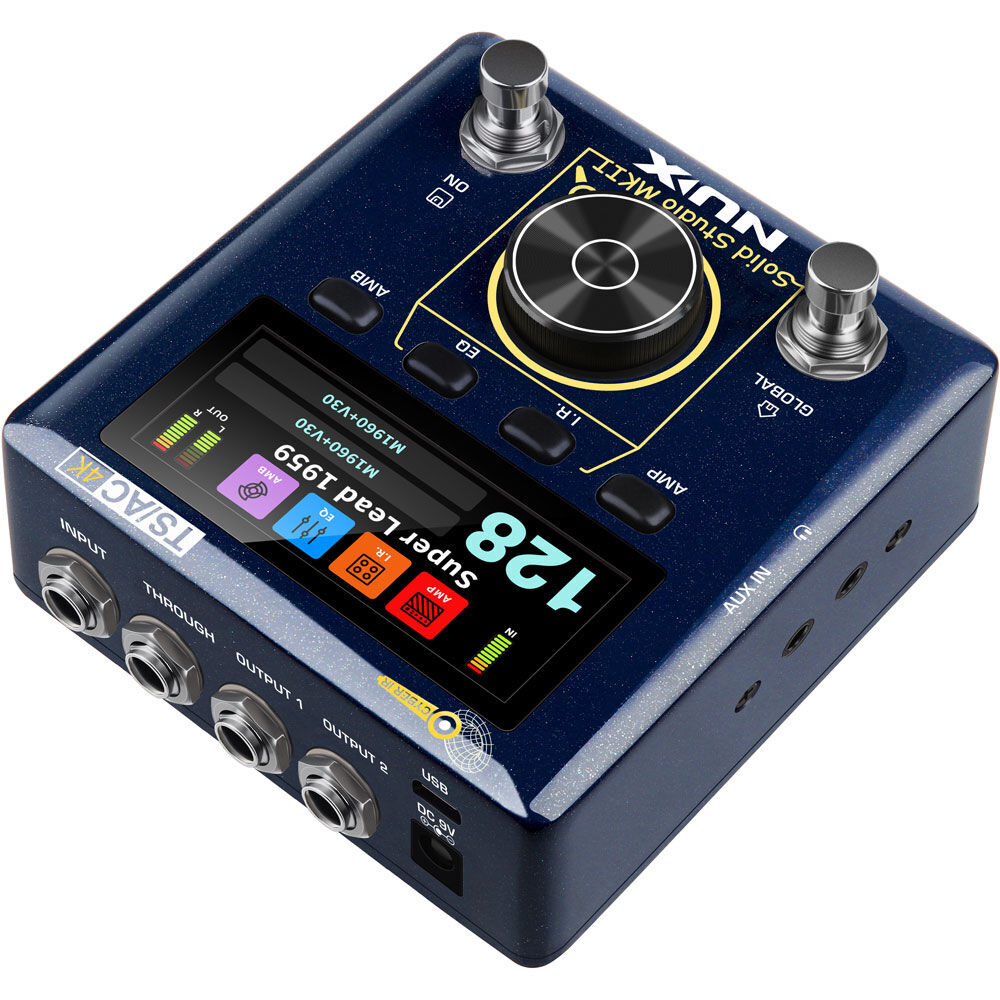

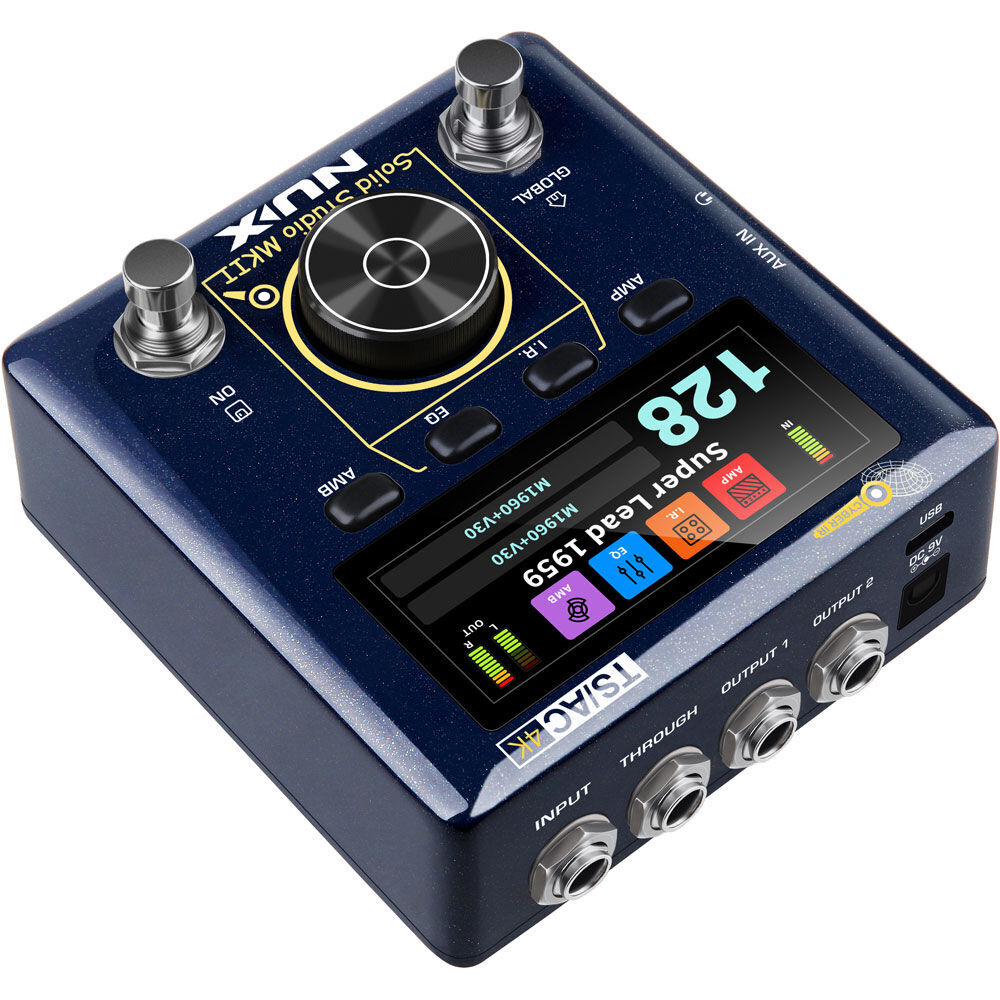

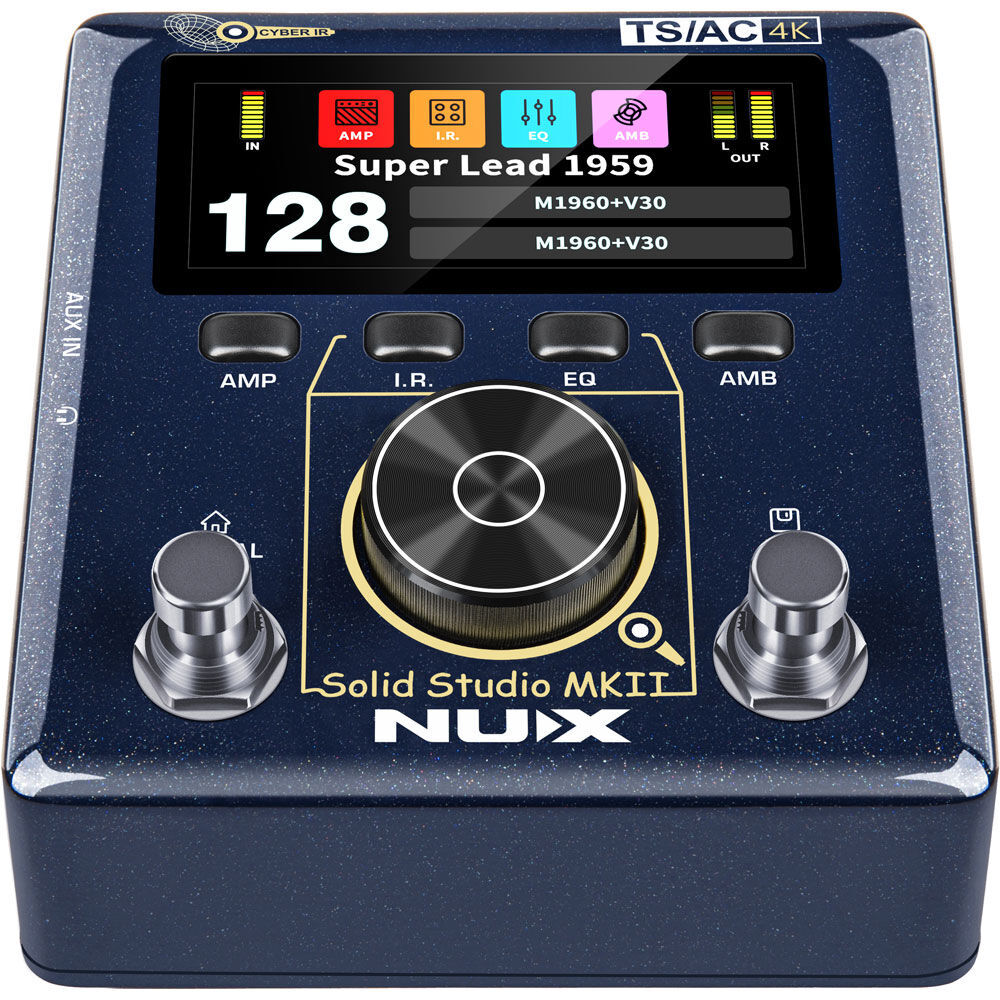

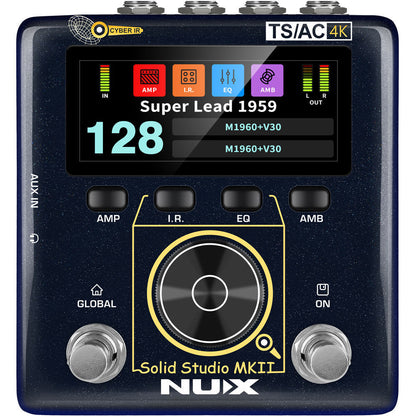

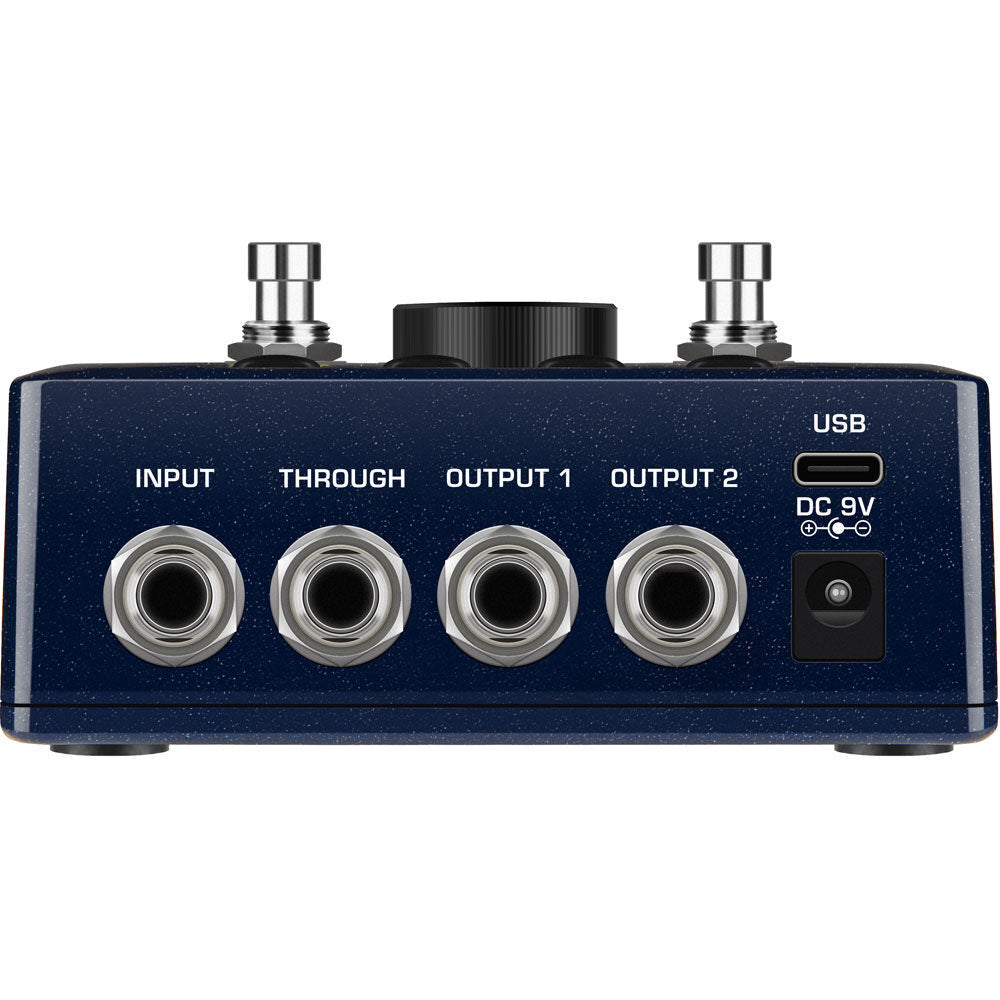

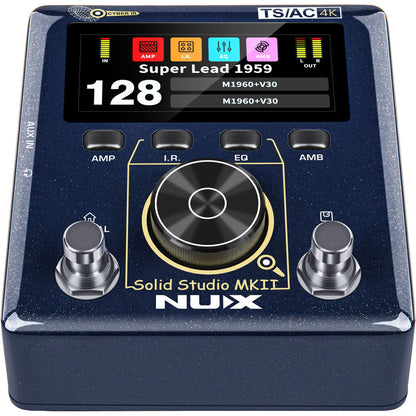

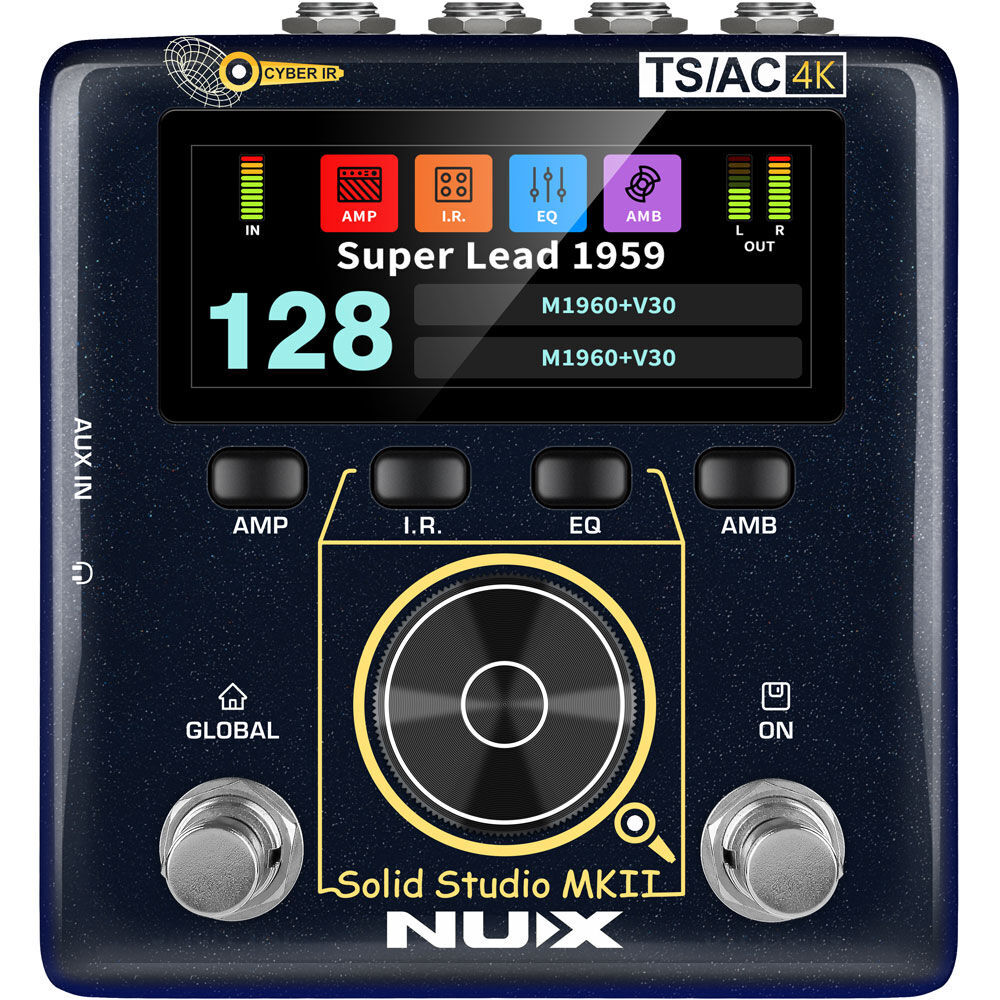

NU-X Verdugo Series Solid Studio MKII Preamp and Power Amp Simulator with IR Loader

The Solid Studio MKII (NSS-6) has the most iconic Physical Amp Modeling algorithm: TSAC-4K with an independent Preamp and Power Amp combination. TSAC-4K (White-box) algorithm brings realistic playability and the tube amp’s negative feedback response. This groundbreaking technology will offer you the best performance, and you can experience that ANALOG FEELING. FEATURES: Stereo CYBER IR™ Engine with dual 1024 samples resolution. Independent Pre & Power amp simulation with TSAC-4K white-box amp modeling algorithm. World-class amp modeling algorithm with full functions. (Like 4 inputs for patch cable jumping). *Currently 8 classic AMP models. One-piece die-cast aluminum chassis. AMP, 1.R., EQ, AMB effect blocks with free routing order. 2.86" colour LCD display (960*376) with intuitive operations. 128 preset slots, independent L/R 60 IR slots. Built-in NOISE GATE, EQ, PHONES LEVEL, AUX IN LEVEL, OUT LEVEL in global setting. NORMAL, INJECT input modes. (INJECT to parallel the power amp signal.) USB audio interface, firmware update, SOLID STUDIO editor™ edit software. USB-C MIDI, THROUGH jack (parallel the Power Amp signal), stereo balanced 1/4" outs with GND lift, Phones Out for silent practice. Great Dynamic Range: 110dB. Ultra-low latency: 0.85ms (bypass), 1.9ms (efx engaged). SPECIFICATIONS: INPUT Impedance: 1MOhms AUX IN Impedance: 10kOhms OUTPUT 1, OUTPUT 2 Impedance: 100Ohms Phone Impedance: 10Ohms Dynamic Range: 110dB Sampling Rate: 48kHz/32bit System Latency: 0.85ms (Bypass); 1.9ms (Effect On) Power: 9V DC (Negative Tip) Current Draw: < 600mA Dimensions (L x W x H): 105 x 115 x 58mm Weight: 450g World Class Amp Modeling & True Stereo IR Reproduction. (1024 Samples) Cyber IR Our Brand New Cyber IR™ Technology is a real impulse Response reproduction with a premium algorithm that offers Microphone, Position, and Distance tweaking. Solid Studio MKII gives you Stereo IR Capabilities with ultra-low latency. (Bypass: 0.85ms; Efx Engaged: 1.9ms) *NUX collaborated with CHOPTONES IRs. Pedal Platform: Overdrive Signal Compatibility The Solid Studio MKII is a great pedal-friendly platform for Amp-less applications. The unique TSAC-4K algorithm replicates the Tube Amp’s response without unnatural compression. Its 110dB dynamic range and great headroom allow it to be used with most compressors and overdrive pedals. Balanced 1/4" Outputs, and Through Out For Amp-less application, Solid Studio MKII features balanced 1/4” outputs. You can connect with PA system (mixer) directly. You can even use Solid Studio MKII with an amp head through the amp output with a cabinet. Headphone Output & AUX-In For home practice, this pedal is a great solution for the Silent Guitar Rig. Recording USB Audio Stream (48KHz / 24bits) Recording, Re-Amping, OTG(On-The-Go) Record Dry Sound & Play Processed Sound Simultaneously As a modern musician, recording ideas immediately is essential. The Solid Studio MKII’s premium A/D (TI PCM1840) and D/A (AKM AK4454VN) promises great sound quality. It’s a good USB interface for recording your compositions. Versatile IR Loader with Flexible Block Routing 60 L + 60 R user IR slots You Can Change the Signal Block Route Freely Solid Studio MKII has 8 ambience effects: Spring Reverb, Plate Reverb, Hall Reverb, Room Reverb, Phi Delay (Digital Delay), Tape Echo, Analog Delay, and Pan Delay. *All the brand and model names mentioned on this page are Trademarks of their respective owners, which are in no way associated or affiliated with NUX Effects and Cherub Technology CO. LTD ** Free Firmware Updates and Manuals are available by clicking here then selecting "Support"
