Samson Wireless GO Mobile Lapel System

Where Will You Go?®

Samson's Go Mic Mobile is the world's first professional wireless microphone

system for smartphones, allowing mobile filmmakers/journalists to capture

incredible audio anywhere. Go Mic Mobile connects directly to iOS and Android*

devices so can you start filming with high-quality audio almost immediately.

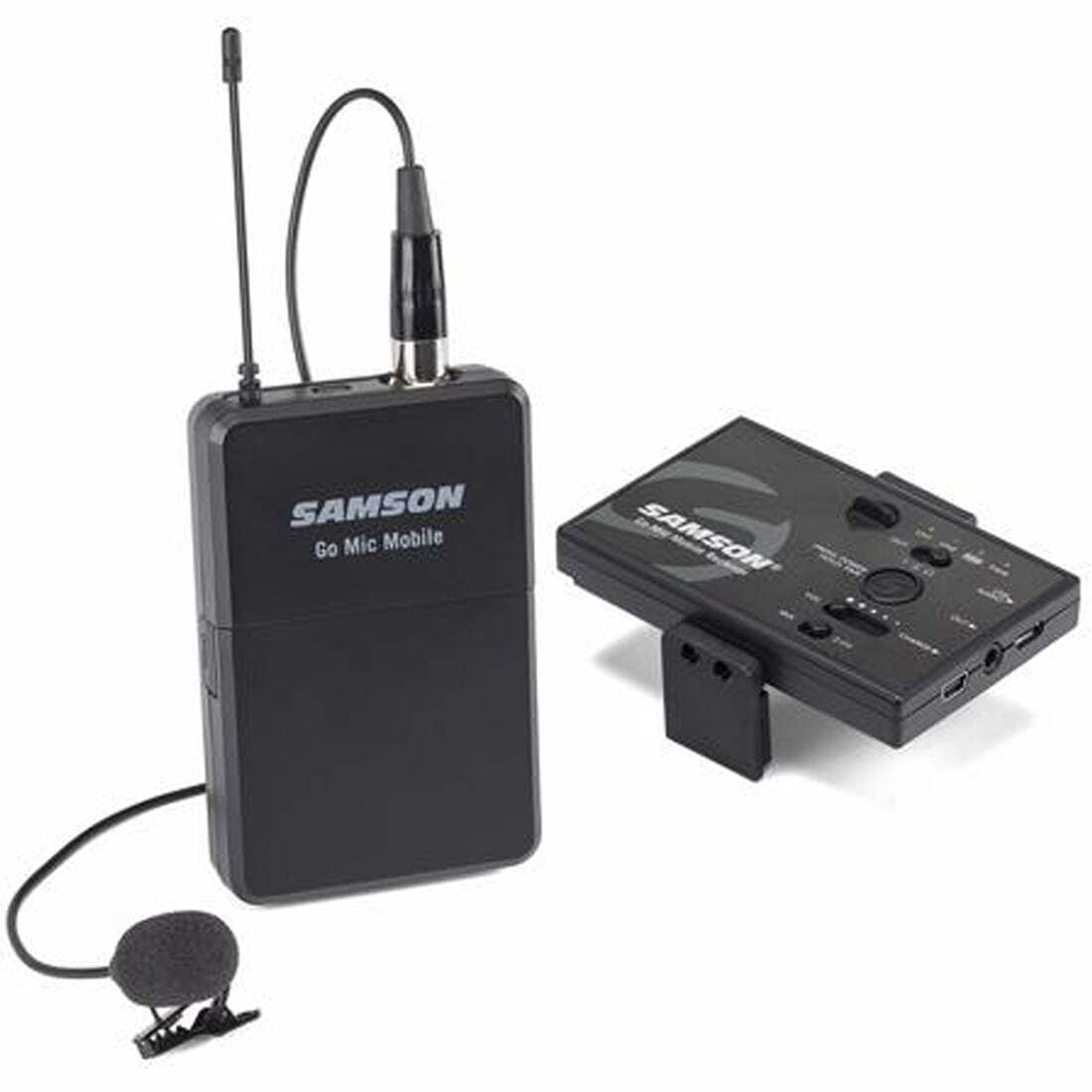

Go Mic Mobile Lavalier Wireless System

In addition to the Go Mic Mobile (GMM) Receiver, the uniquely configured Go Mic

Mobile Lavalier Wireless System features Samson's PXD2 Beltpack Transmitter and

LM8 Omnidirectional Lavalier Microphone for up to 100' of uncompressed digital

wireless operation.

The low latency transmission to your mobile device eliminates any sync issues,

so you can capture, edit and share videos right from your smartphone. An

additional transmitter can be added to the system for dual-channel operation.

The system also includes a Lighting cable to connect to iPhone/iOS devices, USB

Micro B and USB-C cables to connect to Android devices and an 1/8" (3.5mm) cable

to connect to any analog audio input, as well as a varity of receiver mounting

accessories (bracket arms, hook-and-loop fasteners, 1/4"–20 adapter, shoe mount

adapter).

*Go Mic Mobile offers digital audio

compatibility with Android devices running Android 5.0 (Lollipop) or later that

allow USB digital audio connectivity. Not all Android applications support USB

audio, and you may need to download a third party app to use this feature.

Analog connectivity via the included 1/8" (3.5mm) cable is offered as an

alternative solution. Specifications:

2.4GHz digital wireless system

Low latency audio transmission with no video sync issues

Dual-channel receiver mounts directly to smartphones, tablets, digital cameras

and tripods via included bracket arms, hook-and-loop fasteners, 1/4"–20 adapter,

shoe mount adapter

Plugs directly into iPhone and other iOS devices via included Lightning cable

Plugs directly into Android devices via USB Micro B or USB-C cables (both

included)

Receiver offers up to 13 hours of battery life via rechargeable lithium-ion

battery

Switchable 1/8" headphone/line and USB audio outputs with volume control

PXD2 Beltpack Transmitter with LM8 Omnidirectional Lavalier Microphone

Transmitter offers up to 20 hours of battery life using two AA batteries

Up to 100' operating range (line-of-sight)

1/8" (3.5mm) audio cable, USB charge cable and power adapter also included

Specifications

Go Mic Mobile Wireless System

Working Range: 100' (30m) line-of-sight

Working Frequency: 2.406~2.478GHz

Frequency Response: 10Hz–22kHz

Operating Temperature: -10~+50°C

Signal To Noise: 90dB (A) mic at minimum gain, 78dB (A) mic at maximum gain

GMM Receiver

Max. Analog Audio Output Level: +6 dBu, =4.4 Vpp, =70 mW per side into 32?

USB Audio Sample Rate: 48kHz

USB Audio Support: Windows, Mac OS, iOS, Android, Linux

Battery Life: 7–13 hours depending on use

Power: Internal rechargeable lithium-ion battery

Operating Voltage: 5V DC 500mA

PXD2 Beltpack Transmitter

Input Connector: Mini XLR (P3)

RF Power: <10 mW EIRP

Power Requirements: Two AA (LR6) alkaline batteries

Battery Life: 20 hours
