Small Area Infrared System 2 IRSY2 Williams AV

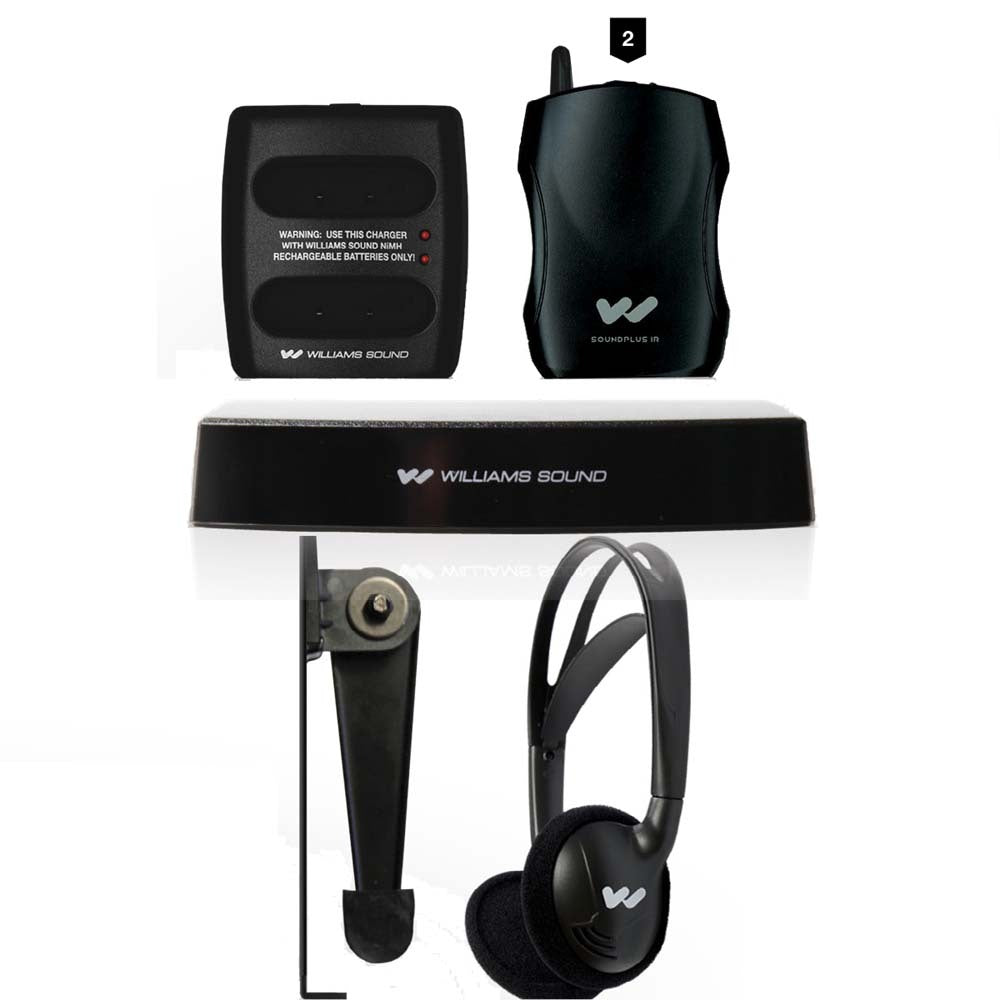

THIS PRODUCT IS FOR ONLINE ORDER ONLY. IR SY2SMALL AREA INFRARED SYSTEM 2Small-area infrared system ideal for use as a small-area assistive listening system or for private TV listening in small conference rooms hospital rooms assisted living facilities medical treatment centers and/or jury deliberation rooms. High-efficiency LEDs display power status and audio input. Power with A/C power supply or standard USB port on a TV. Plug-and-play install with 3.5MM audio input. One- or two-channel operation (2.3 and 2.8 MHz). Provides coverage area of up to 1300 square feet. System includes(1) IR T1 small-area infrared transmitter(1) TFP 055 power supply(1) WCA 106 USB micro cable 6 ft. (USB 2.0 to USB micro)(1) WCA 124 adapter cable (3.5mm F to RCA)(2) WIR RX22-4N infrared receivers(1) STD 008 flat-panel TV mounting bracket(2) HED 027 heavy-duty folding mono headphones(1) NKL 001 Neckloop(1) CHG 3502 two-bay body-pack charger(2) BAT 026-2 AA NiMH batteriesfeaturesHigh-efficiency LEDs display power status and audio inputPower with A/C power supply or standard USB port on a TVPlug-and-play install with 3.5MM audio inputOne- or two-channel operation (2.3 and 2.8 MHz)Provides coverage area of up to 1300 square feetspecificationsbat 026-2NiMH 1.2 Volt 1500 mAhchg 3502Dimensions: 4-7/8 L x 3-7/8 W x 2 H (12.4 cm L x 9.8 cm W x 5.1 cm)Shipping Weight: 1.1 lbs (0.5 kg)Enclosure: Black ABS plasticCharger Power:Input: 6 VDC 300mA Center Positive.Output: 100mA per bay.Power Supply:Williams Sound TFP 041 (US) or TFP 030 (International).Input: 100-240 VAC 50-60Hz 0.5-0.3 AOutput: 6 VDC 1.5 A.Charging Time: 16 hours nominal *Unit Capacity: 2Ë€ UnitsIndicators: 2 Red LEDs - one for each bay. LEDs are lit when charging.Warranty: 90 daysApprovals: CE FCC RoHShed 027Style: Heavy-duty folding mono headphonesPlug: 3.5mm monoCord: 39 Driver Size: 40 mmNominal Impedance: 16ÃŽ©Freq. Response: 20 - 20kHzWeight: 102gMax Power Input: 100 mWSensitivity: 96 dB @ 1kHzReplacement Pads: EAR 035 (one pair)std 008Weight: 0.6 lb (272 g)Dimensions: 6 W x 4.75 D (15 cm W x 12 cm D)Material: Painted SteelColor: Flat BlackShelf support: Front padded lip rests on TV. Adjustable arm with swivel lock supports rear of shelf.wca 1060.05 lbs.wir rx22-4n architectural and engineering specificationsThe receiver shall be a body-pack type with IR detector lens behind face of the unit.The unit shall have a lanyard for hands-free operation.The receiver shall have a rotary-type volume control.The receiver shall operate for 60 hours with two AA alkaline batteries and for 30 hours per charge with NiMH AA batteries.The receiver shall be charged without battery removal via charger contacts in the case. A drop-in charger accessory shall recharge the batteries in 16 hours when used with CHG 3512 charger.The receiver shall be housed in an impact resistant plastic case with a hinged battery door that does not separate from the receiver.The receiver shall receive 2.3 MHz 2.8 MHz 3.3 MHz or 3.8 MHz modulated IR signals with 50 µS de-emphasis.The receiver shall have a 3.5 mm stereo phone jack and accommodate low-impedance mono or stereo earphones and headphones.The receiver shall accommodate neckloop telecoil couplers.The receiver shall provide 125 dB SSPL90 output with HED 021 headphone and 110 dB SSPL90 with EAR 013 earbud-type earphone.The system electrical frequency response shall be 25 Hz to 16 kHz +1 -3 dB and the S/N ratio shall be 60 dB.The receiver shall have CE FCC RoHS and WEEE approval.The receiver shall be covered by a five-year parts and labor warranty excluding earphones headphones batteries and chargers.The receiver shall be the Williams Sound model WIR RX22-4.wir rx22-4nReceiver Style: Body-Pack dual-lens detector lanyardSize: 4.1 L x 2.85 W x 1.2 H (104.1 mm x 72.4 mm x 30.4 mm)Weight: 4.5 oz (127 g) with batteriesColor and Material: BlackLanyard: 3 ft (0.91 m) allows receiver to be worn around the neckOperating Temperature: -10° C to +50° CBattery Type: 2 x AA alkaline (BAT 001-2) or NiMH (BAT 026-2)Battery Life: Alkaline: 60 hours NiMH: 30 hours/chargeBattery Drain: 25 mA nominalCharging Contacts: For use only with CHG 3512Carrier Frequency:Channel 1: 2.3 MHz Channel 2: 2.8 MHzChannel 3: 3.3 MHz Channel 4: 3.8 MHzDe-Emphasis: 50 uSFM Deviation: ±50 kHzSignal-to-Noise Ratio: 60 dB min. Squelch: Receiver squelches (mutes) at 28 dB S/N ratioFrequency Response: 25 Hz to 16 KHz +1 dB -3 dB electrical responseTotal Harmonic Distortion: Less than 1% electrical responseControls:ON/OFF/VOLUME: combination thumbwheel knobChannel Selector: four-position rotary switchIndicators: Red LED ON indicator flashes to indicate Low batteryAudio Output Jacks: 3.5 mm stereo mini phone jack Accepts 3.5 mm mono or stereo phone plugAudio Output Power: 15 mW max at 32 ÃŽ©Acoustic Output: 125 dB SSPL90 with HED 021; 110 dB SSPL90 w/ EAR 013Sensitivity: Better than 1 nW/cm2 for 40 dB signal-to-noise ratioApprovals: CE FCC RoHS WEEEWarranty: 5 years on receiver 90 days on accessoriesCompatible Headphones/Earphones: Mono or stereo 8-32 ohms 3.5 mm mini phone plug HED 021 HED 026 EAR 013 EAR 014 EAR 022 NKL 001
