Smart Acoustic

Smart Acoustic Swm360Htbp Mic+Bp V1 (655-679)

$779.00
$779.00
Sold out

Includes GST

Sold out right now. We may be able to order it in. Call or message us and we’ll check with the supplier.
Call 03 4151 5751 Send us a message

Similar options in stock now

Make 4 interest-free payments of $194.75 with Afterpay
or pay nothing today with Zip

Delivery & collection

Standard shipping Free

Ships once we’ve sourced it. We’ll confirm exact timing with you first.

Express shipping $15

1–3 business days depending on location.

Flat rate Australia-wide. Choose Express at checkout.

Click & Collect Free

From our Footscray showroom

Not sure it’s the right one? Talk to a player.

Call 03 4151 5751Send us a message
View full details

Description

SKU 358177AUSTRALIS

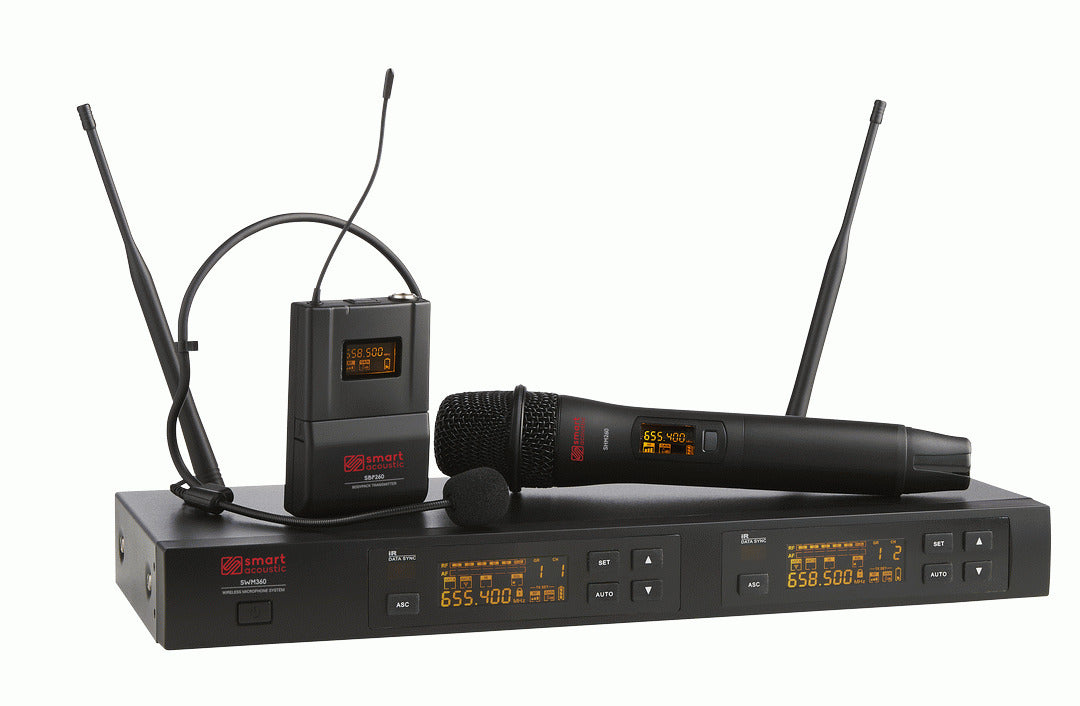

This great sounding, easy to operate Wireless Microphone System comes with 1x Dual Channel Wireless Receiver (SWM360), 1x Handheld Wireless Microphone (SHM260) and 1x Bodypack (SBP260). FREQUENCY BAND (655-679 MHz)

True diversity design ensures rock-solid performance

LCD shows all working status

Up to 160 selectable frequencies

Automatic frequency selection

Adjustable gain level

6-segment audio meters

6-segment RF meters

3-segment transmitter battery fuel gauges

Squelch adjustment

Infrared data synchronization

Rugged metal chassis

Receivers

RF Carrier Frequency Range: 500 ~ 937.5MHz

Working Range: 100M

Modulation: FM

Pilot Tone: 32.768KHz

Max Channel Number: 192

System Compatibility: 8 channels

Audio Frequency Range: 50Hz ~ 15KHz(±3dB)

Dynamic Range: > 105dB

System Distortion: THD< 0.5%

S/N Ratio: > 102dB(A)

RF Sensitivity: < -95dbm for 30dB S/N ratio

Image Rejection: > 60dB

Output Connectors: (XLR×1) /(1/4-inch connector×1 )

Audio Output Level: (XLR:+10dBV) / (1/4-inch connector(+8dBV)

Output Impedance: (XLR:3K?)/(1/4-inch connector:3K?)

Display: LCD×1

Power Requirement: 12V/0.5A DC

Operating Temperature Range: 0-50 ?

Dimensions: 160*212*44mm

Weight: 880g/1750g

Handheld Transmitter

Gain Adjustment Range: 0/3/6dB

Input Impedance: (Mic:5K?)/(Guitar: 760K?)

RF Power Output: 2mW/10mW/30mW

Spurious Rejection: > 50dB

Pilot Tone: 32.768KHz

Display: LCD

Power Requirements: 1.5V×2(AA)

Battery Life: > 8hours/ 1300mAH

Dimensions: 250*50mm

Weight: 360g

Bodypack Transmitter

Gain Adjustment Range: 0/3/6dB

Input Impedance: 5K?

RF Power Output: 2mW/10mW/30mW

Spurious Rejection: > 50dB

Pilot Tone: 32.768KHz

Display: LCD

Power Requirement:1.5V×2(AA)

Battery Life: > 8hours/ 1300mAH

Dimensions:165*65*23mm

Weight: 130g

Wireless Hand Held Microphone and Body Pack System

120 Channels

True Diversity System

FREQUENCY BAND (655-679 MHz)
