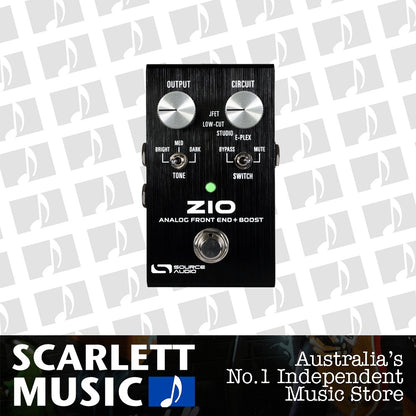

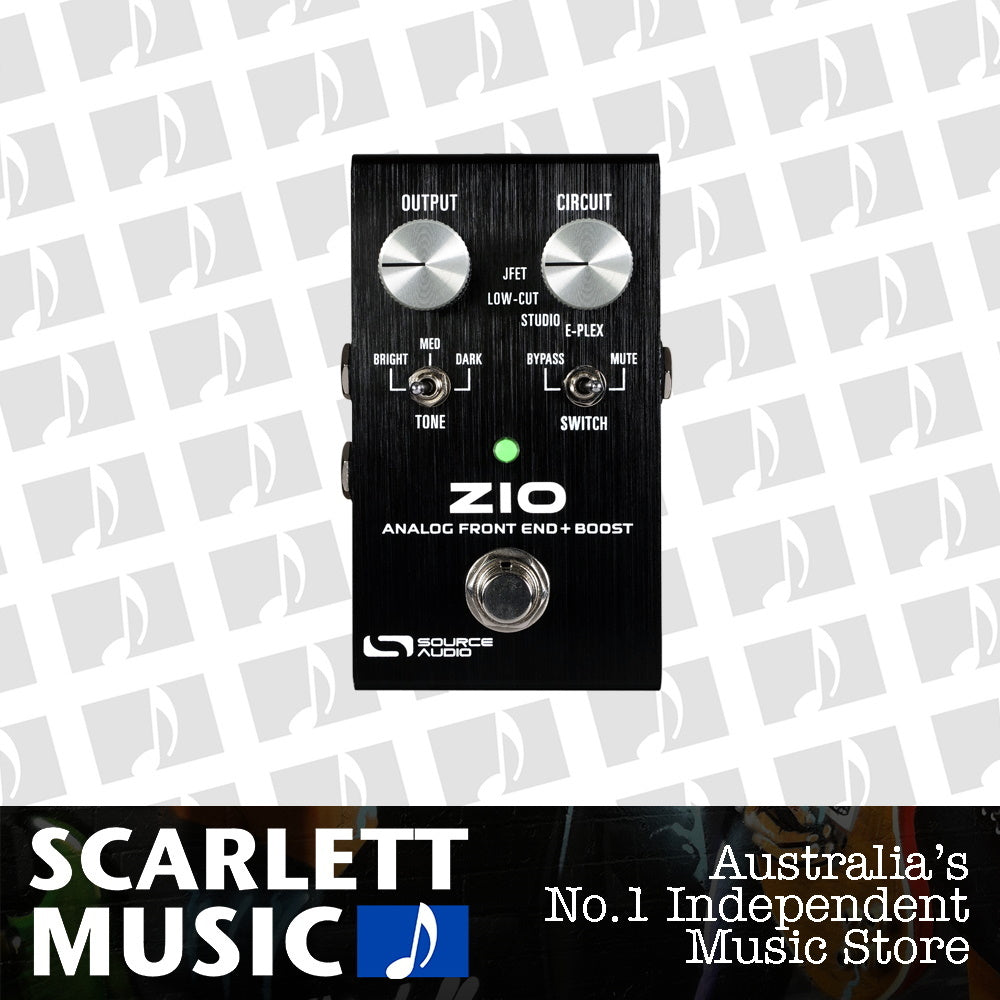

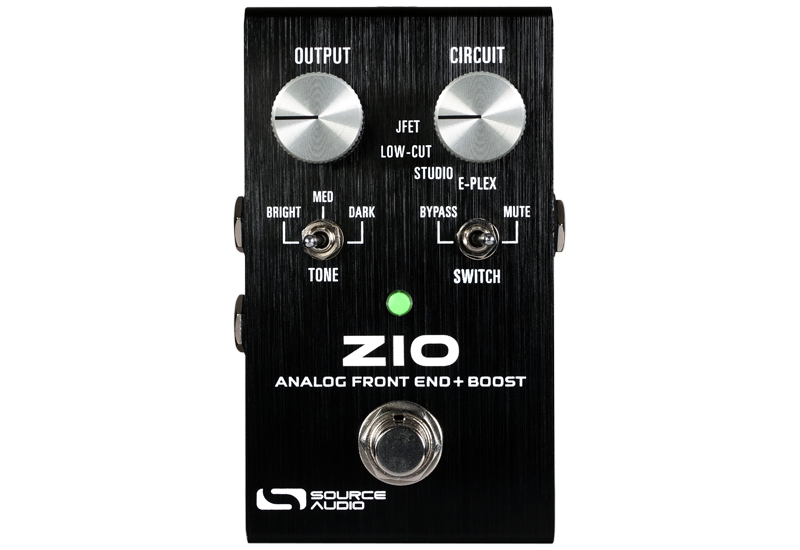

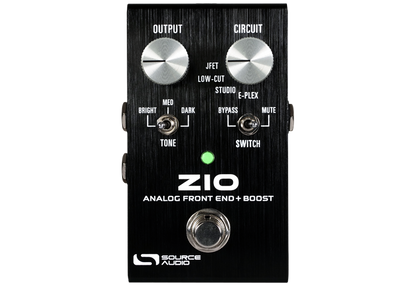

Source Audio Zio Analog Front End Boost Effect Pedal

$319.00
$319.00
Sold out

Includes GST

Sold out right now. We may be able to order it in. Call or message us and we’ll check with the supplier.
Call 03 4151 5751 Send us a message

Similar options in stock now

Make 4 interest-free payments of $79.75 with Afterpay
or pay nothing today with Zip

Delivery & collection

Standard shipping Free*

Ships once we’ve sourced it. We’ll confirm exact timing with you first.

Conditions apply.

Express shipping $15

1–3 business days depending on location.

Flat rate Australia-wide. Choose Express at checkout.

Click & Collect Free

From our Footscray showroom

Not sure it’s the right one? Talk to a player.

Call 03 4151 5751Send us a message
View full details

Description

SKU SA-ZIO

The word "ZIO" is an acronym for Impedance (“Z” is the electrical symbol for impedance), Input (“I”), and Output (“O”). The pedal is designed to take a guitar’s high impedance signal, sweeten the tone with any of its four preamp circuits, and output a strong, low impedance signal that won’t be altered by the buffered dry tones of effect pedals further down the signal chain. High fidelity, noise-free Burr-Brown op amps help give ZIO extreme clarity and responsive pick dynamics, while maintaining ideal body and warmth. ZIO has four distinct preamp circuits. JFET offers a completely transparent signal boost with zero coloring or distortion. LOW-CUT reduces “tubby” bottom-end for a tighter sound with added headroom. STUDIO finds inspiration from the time-honored “Pultec Trick,” a studio technique that adds clarity by cutting the “mud frequencies” and adding mid-range articulation. E-PLEX captures the focused and subtle grit of the preamps found in vintage Echoplex Tape Delay units. The ZIO’s TONE toggle offers three different levels of capacitance (or simulated cable length) to brighten or darken the tone.

  • Circuit knob with four distinct preamp circuits: JFET (transparent, flat frequency curve), LOW-CUT (cuts lows without affecting mid to high frequencies), STUDIO (replicates “Pultec Trick” equalization), E-PLEX (inspired by the preamp in an vintage Echoplex Tape Delay unit)
  • High quality components and Burr Brown JFET op-amps
  • Output control with up to +20dB of signal boost
  • 3-way Tone toggle switch with bright/medium/dark cable capacitance voicing
  • 2-way Footswitch Action toggle switch (with always-on “Mute” option)
  • Extra Tuner/Line Output
  • True Bypass
  • Input Impedance: 1 Mega Ohm (1 MΩ)
  • Output Impedance: 150 Ohm (150 Ω)
  • Power Consumption: 9V DC center negative @ 20mA
  • Brushed anodized aluminum housing
  • Dimensions: L: 4.1 in./10.5cm x W: 2.36 in./6cm x H: 2.22 in./5.65cm (including knobs)
