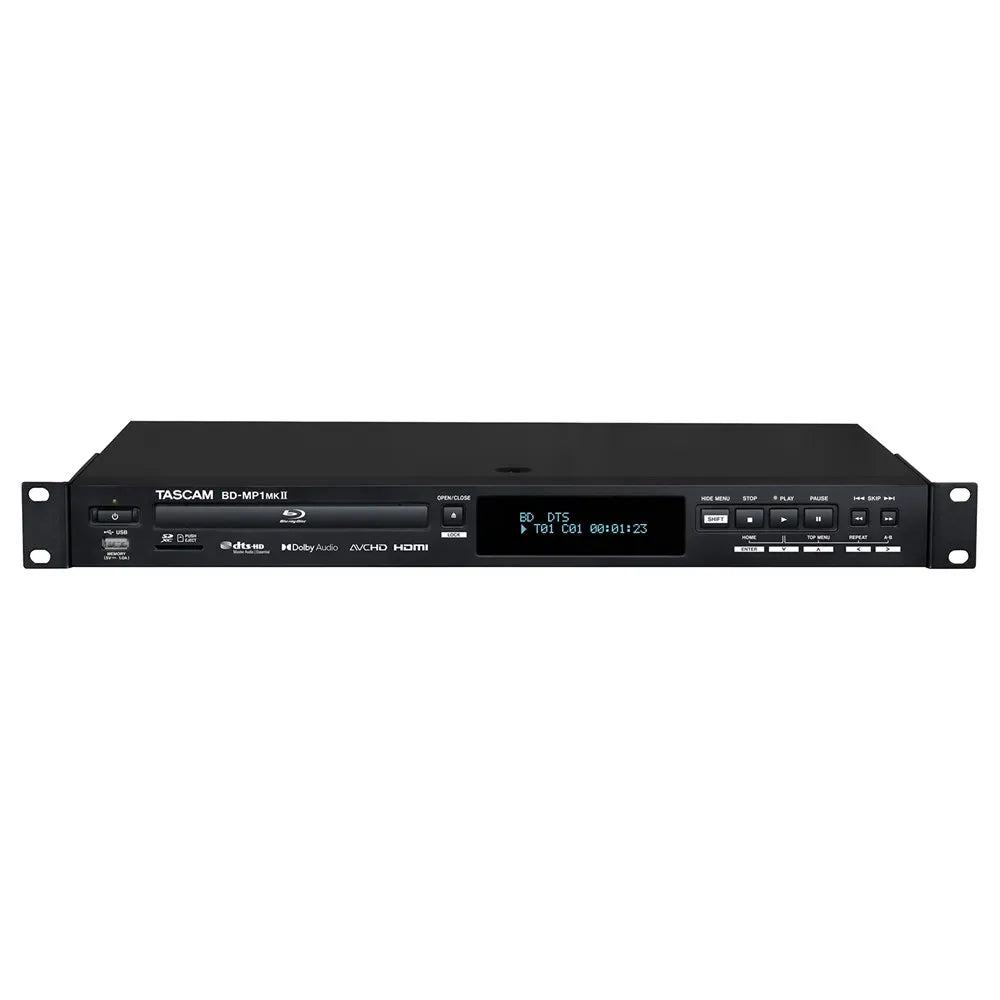

Tascam BD-MP1MK2 Professional Blu-ray Player

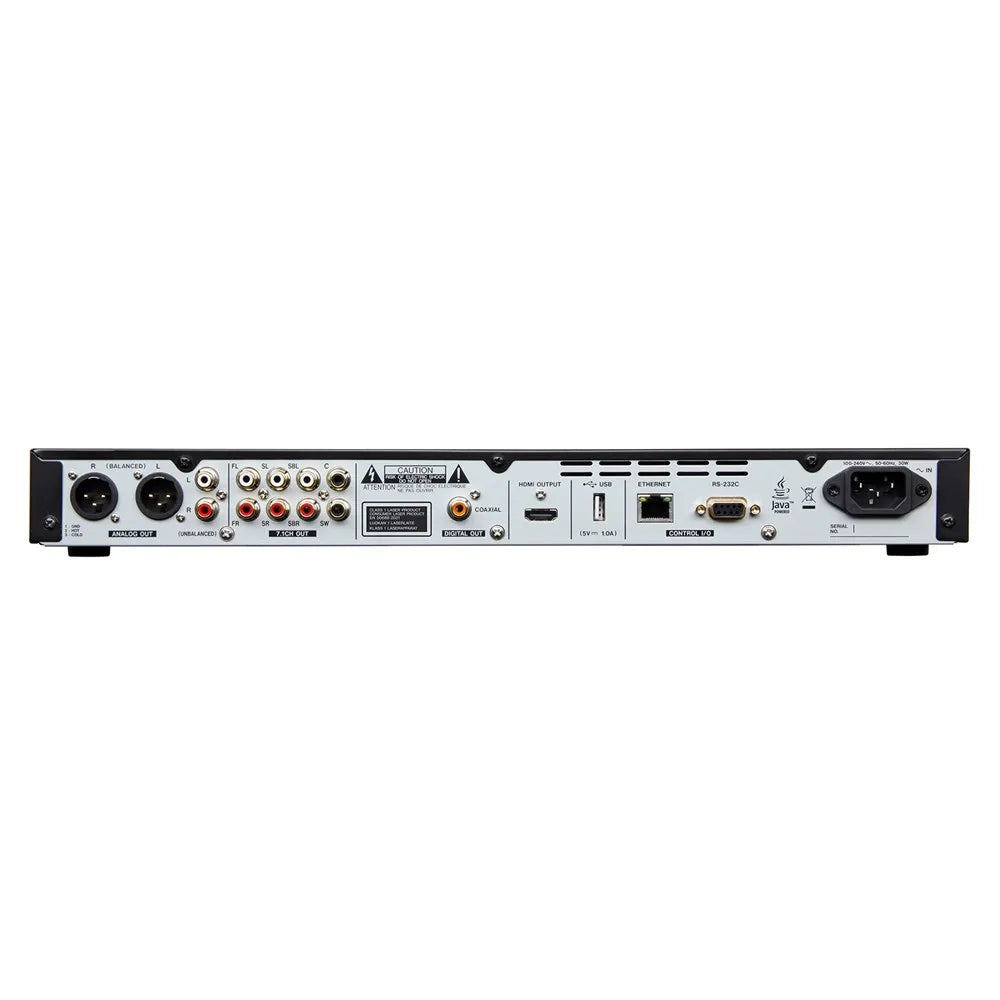

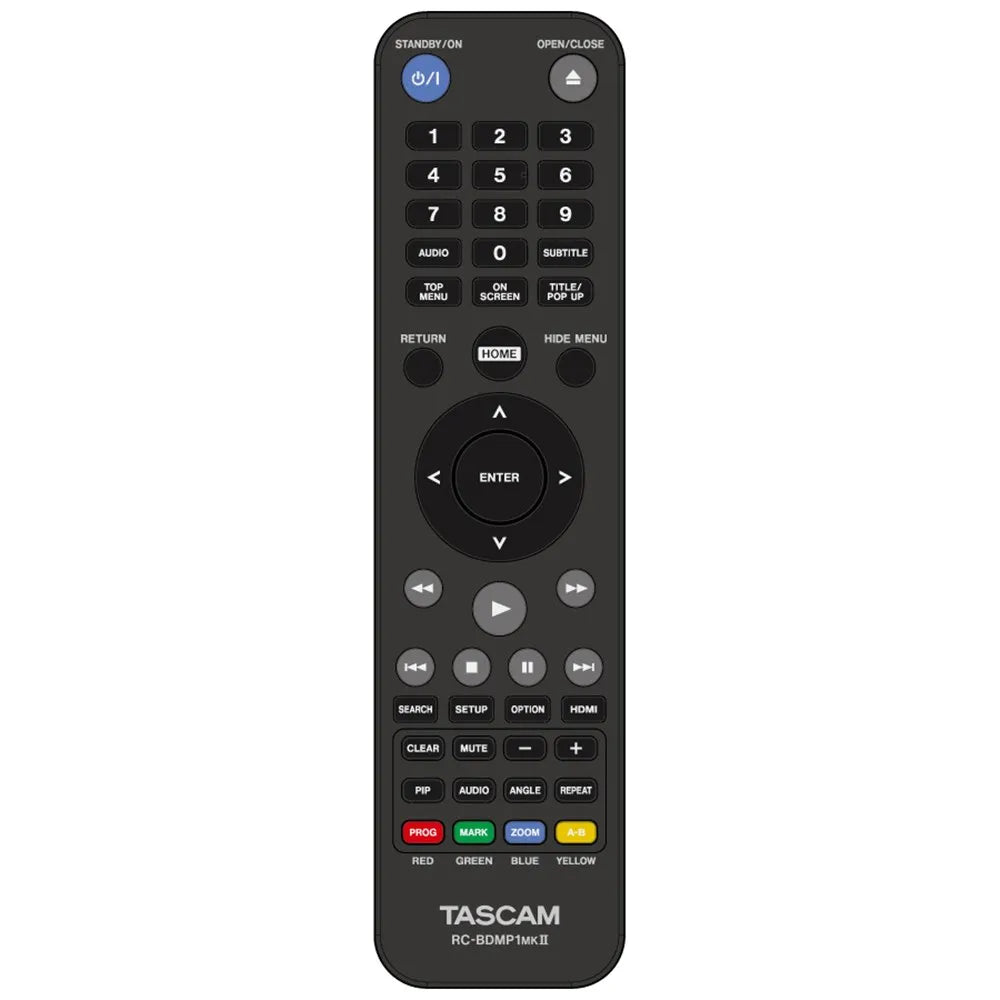

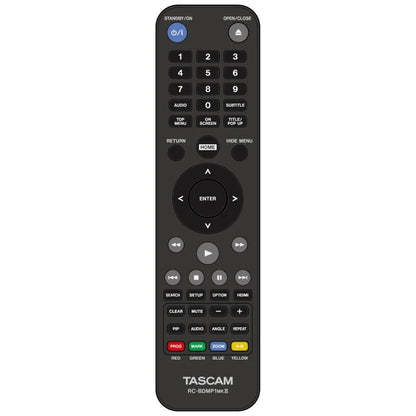

Key Features Supports playback of various formats of Blu-ray, DVD, and CD discs Supports playback of various video, still image, and audio formats from SD cards (SD/SDHC/SDXC up to 512G) and USB memory Power on play function (Disc media only) Seamless repeat function: by chapter, title, or A-B repetition Hide MENU function to display only the main contents on the screen Lock functions: panel, IR, and tray lock HDMI output that can pass through audio formats such as Dolby Atmos and DTS-HD to an AV amplifier Dual XLR balanced and RCA unbalanced outputs RCA 7.1ch audio outputs External remote control via LAN or RS-232C 1U rackmount size Other Features Resume function Coaxial digital audio output supports Dolby Audio, DTS and other professional grade digital audio output formats. Audio output level volume adjust function (0dB to -40dB) IR remote control included (RC-BDMP1MKII) Supported media Disc Media *SL indicates single-layer discs and DL indicates doublelayer discs *This unit can play only BD and DVD-VIDEO that has the same region code as shown on the label on its chassis. It can also play DVD-VIDEO that is ALL. Blu-ray BD25, BD50, BD-ROM, BD-R(SL,DL), BD-RE(SL,DL) DVD DVD-ROM, DVD-R (SL, DL), DVD-RW, DVD+R (SL, DL), DVD+RW CD CD-DA, CD-R, CD-RW Disc formats *Blu-ray 3D supported Blu-ray BDMV, BDAV DVD DVD-Video, DVD-VR, AVCHD File formats *USB flash drive and SD card formats must use FAT16,FAT32, exFAT or NTFS file systems. Video ASF, MPG, AVI, 3GP, DAT, MKV, MOV, M2TS, OGM, TP, TS, MP4, WMV Audio WAV, MP3, WMA, AAC, FLAC, APE Picture JPEG, GIF, PNG Supported subtitle file format .sub, .ass, idx+sub (.idx+.sub) Audio BD/DVD/USB/SD Sampling frequency 44.1k/ 48k/ 64k/ 88.2k/ 96k/176.4k/ 192k Hz Bit length 16/24 bit CD Sampling frequency 44.1k/48k Hz Bit length 16/24bit MP3/WMA Sampling frequency 32k/44.1k/48k Hz Bitrate MP3 112k to 320k bps WMA 48k to 192k bps HDMI Output Connector HDMI 19pin Type A Resolution 480i/576i, 480p/576p, 720p, 1080i, 1080p Aspect ratio 16:9 Full, 16:9 Normal, 4:3 Pan & Scan, 4:3 Letterbox Video format NTSC, PAL, Multi HDMI signal system RGB PC level, RGB Video level, YCbCr(4:4:4), YCbCr(4:2:2) Digital Audio output COAXIAL Connector RCA pin jacks Format IEC60958-3(S/PDIF) Output impedance 75 Ω or lower Analog audio outputs Balanced Connectors XLR-3-32(1 : GND, 2 : HOT, 3 : COLD) × 2 (Stereo) Normal output level +4dBu (1.23 Vrms) Maximum output level +20dBu (7.75 Vrms) Output impedance 200Ω or lower Unbalanced Connector RCA pin jack × 1 pair Normal output level -10dBV (0.316 Vrms) Maximum output level +6dBV (2.0 Vrms) Output impedance 210Ω or lower 7.1ch Audio outputs Connector RCA x8 (FL/FR/SL/SR/SBL/SBR/C/SW) Connector Color FL/SL/SBL: White FR/SR/SBR: Red C/SW: Black Normal output level -10dBV (0.316 Vrms) Maximum output level +6dBV (2.0 Vrms) Output impedance 210Ω or lower RS-232C Connector D-sub 9pin Format RS-232C compliant ETHERNET Connector RJ-45 Protocol 10BASE-T/100BASE-TX Cable Category 5e or faster USB Connector USB type-A ×2 (front ×1, back ×1) Protocol USB2.0 compliant Rated supply voltage DC 5V, 1A Mass storage class Less than 2 TB File format FAT16/FAT32/exFAT/NTFS USB device class Mass storage class SD slot Supported media SD (512 MB-2 GB), SDHC (4 GB-32 GB), SDXC (64GB - 512GB) File format FAT16/FAT32/exFAT/NTFS Power AC100 - 240V, 50 - 60Hz Power consumption 30W Dimensions 482.6(W) × 44(H) × 280.7(D) mm Weight 2.64kg Operating temperature range 5 to 35°C (41°F - 95°F) Included items BD-MP1MKII × 1 Power cord × 1 Wireless remote control (TASCAM RC-BDMP1MKII) × 1 AAA batteries × 2 Rackmount screw kit - Rackmount ears (left and right) × 2 - Screws for ear attachment × 6 - Screws for attachment to rack × 4 - Washers (for rack) × 4 Owner's manual (including warranty) × 1 *0dBu = 0.775 Vrms,0dBV = 1 Vrms Audio performance Frequency response 20 Hz- 20 kHz +/-0.5 dB (Fs = 44.1 KHz/48 KHz, JEITA) S/N 96dB or higher (during playback, JEITA) THD (Total Harmonic Distortion) 0.03%or less (1kHz, JEITA) Dynamic range 96dB or higher (JEITA) Channel separation 89dB or higher (JEITA)
