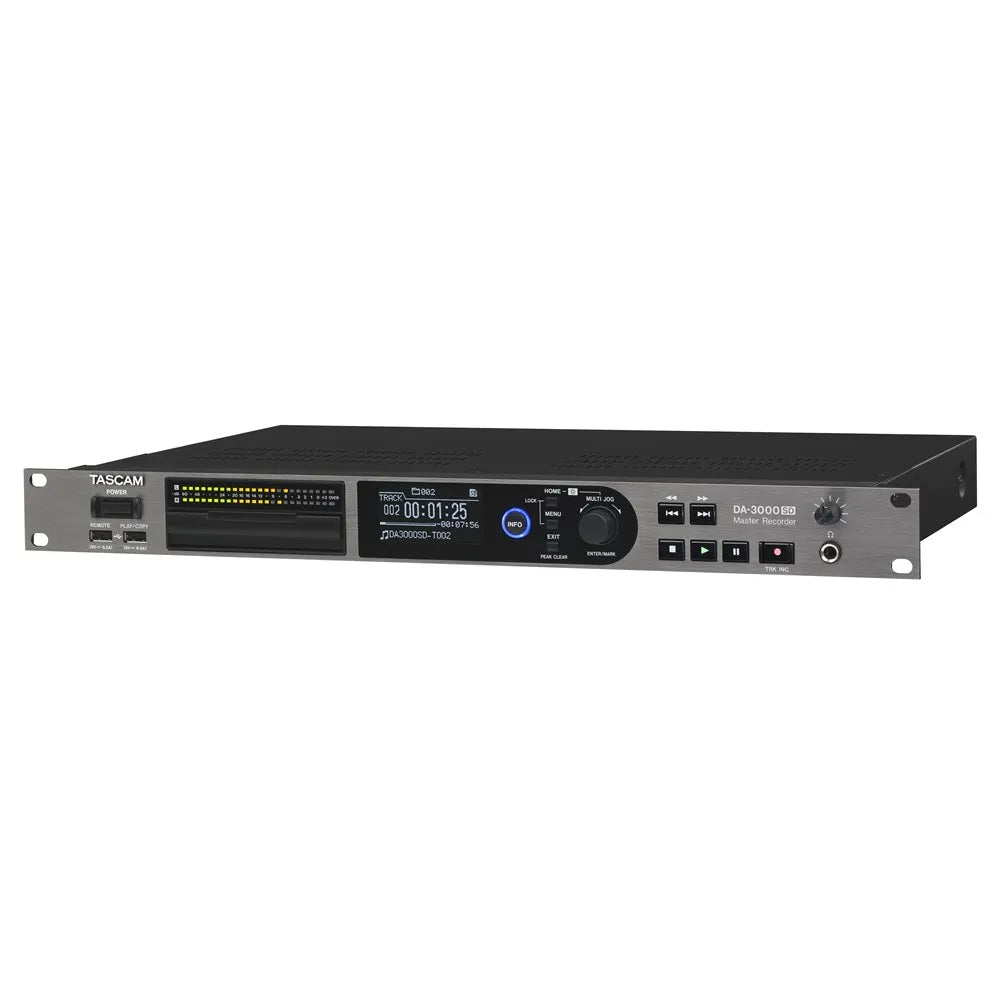

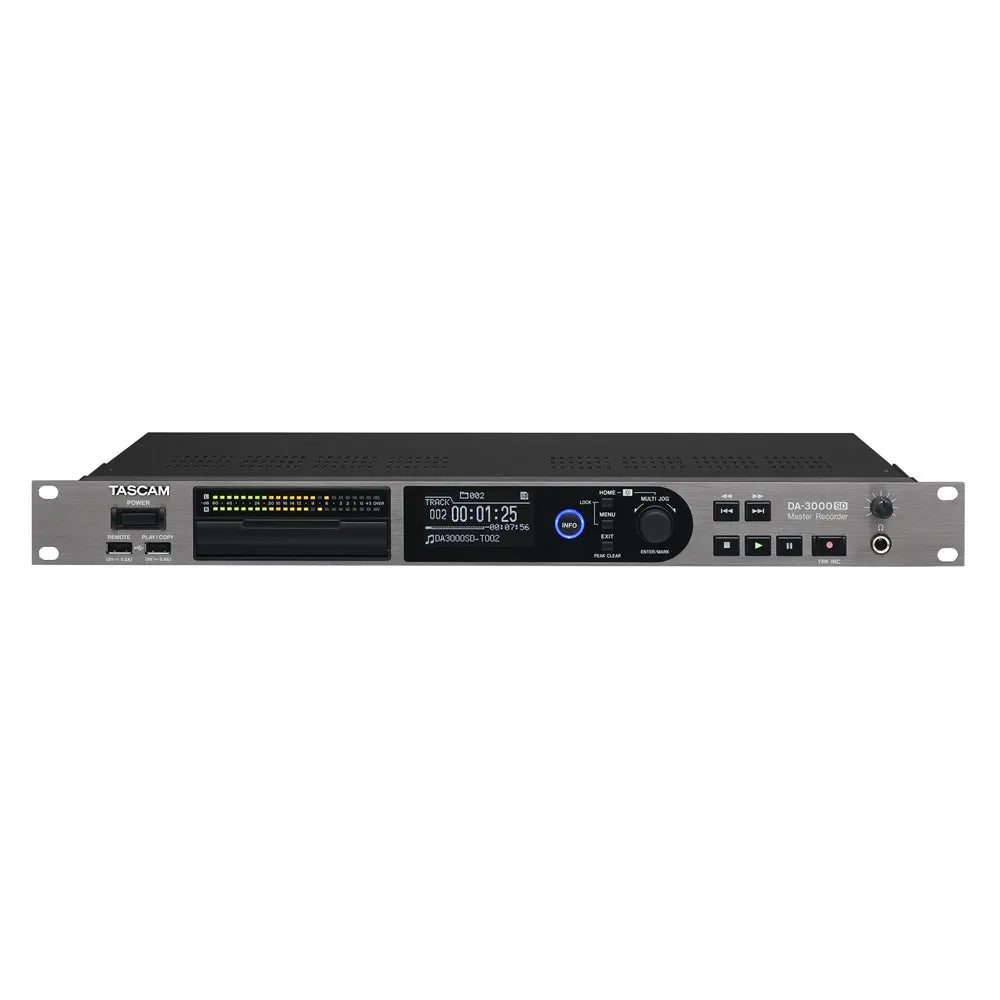

Tascam DA-3000SD 2-Channel Audio Recorder and AD/DA Converter

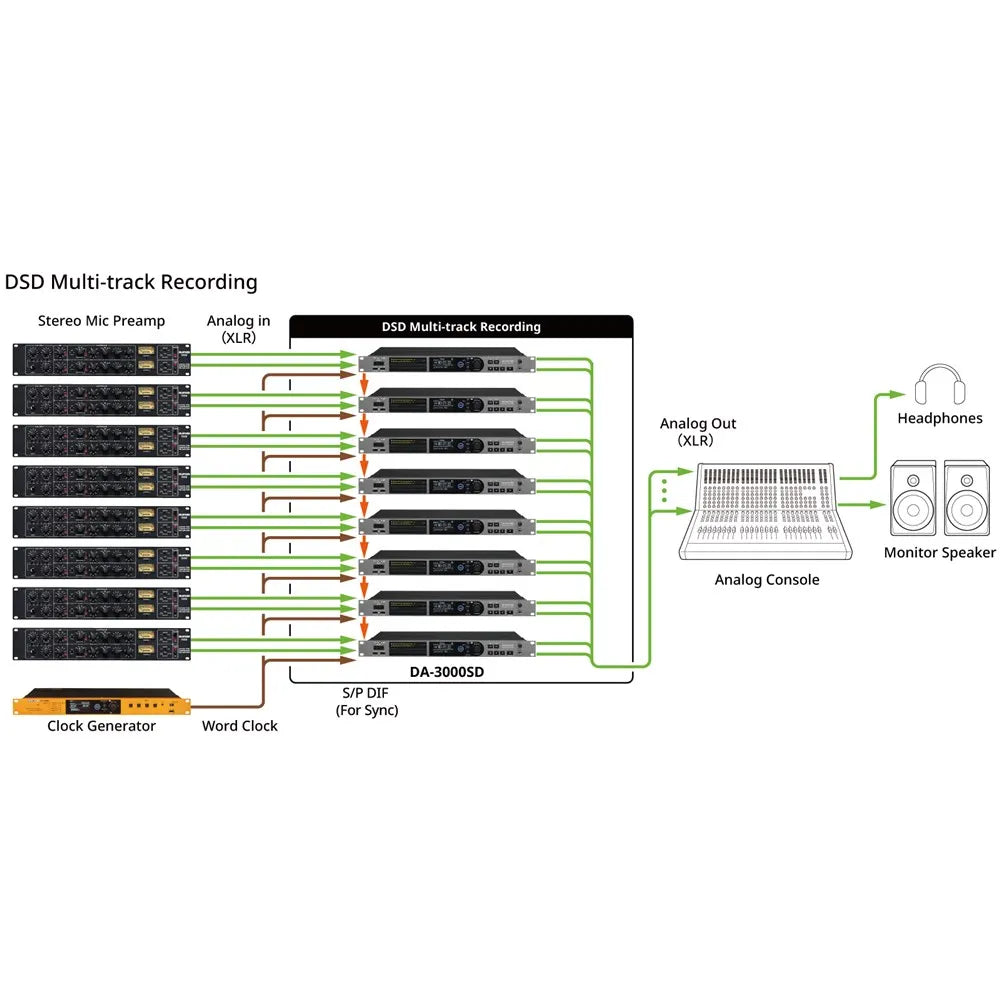

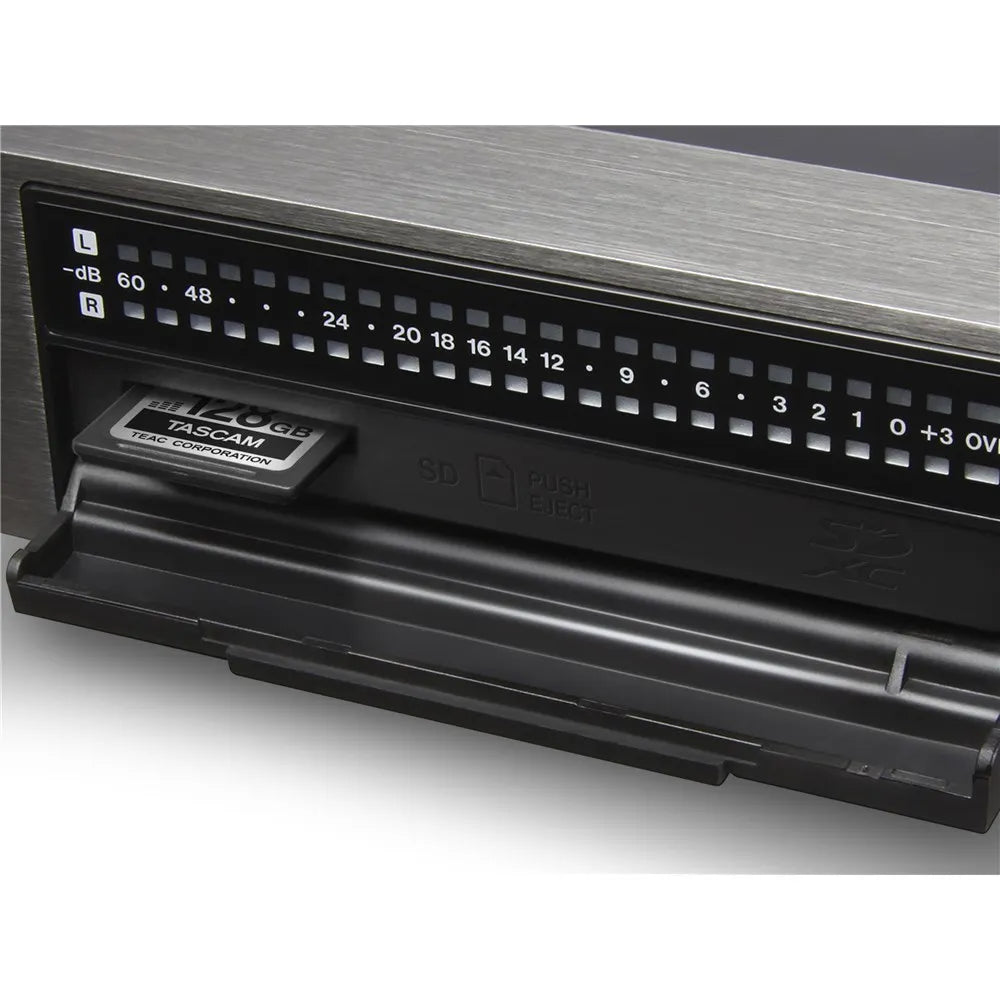

Professional Stereo Master Recorder with Superior AD/DA Converters Following in its critically acclaimed predecessors footsteps, the DA-3000SD is a must-have master recorder and professional grade monitoring device in a single rack mountable unit. Bouncing a recording in a DAW alone cannot capture the quality afforded by the DA-3000SD as a master recorder. When used as an AD/DA conversion unit in a DAW production environment, noise free superior monitoring is second-to-none as the clarity and depth of audio is enhanced and allowed to shine. Masterful Audio with PCM 192kHz, DSD 2.8/5.6MHz Recording For recording, the DA-3000SD supports audio capture at 192 kHz for PCM as well as 2.8 and 5.6 MHz for DSD, the highest quality recording format commercially available. Based on project needs, users can select which recording method best matches the music’s characteristics and save the settings. Multiple units can be synchronized for sample-accurate recording and playback, allowing for the creation of a DSD multitrack recording environment. Recording directly to SD card media makes transportation and storage of sessions simple and easy-to-handle. Utilizing High-Quality Audio Circuitry for AD/DA Conversion An EI core transformer with separate windings for the digital and analog circuits is used in the power supply section, while the output audio circuit has a dual monaural configuration with two high-quality mono circuits to achieve an exceptional sonic profile. Additionally, all stages of the audio circuits have a balanced configuration to reduce noise on both input and output paths. Equipped with a TCXO (temperature compensated crystal oscillator), the DA-3000SD’s clock generator boasts an accuracy of +/- 1ppm for digital audio processing with no jitter. Wide range of input and output terminals The unit is equipped with a diverse selection of input and output terminals for connection to a variety of studio equipment such as audio interfaces, microphone preamplifiers, dynamic processors, and more. Analog I/O ports are provided via XLR and RCA terminals, while PCM digital connectivity is provided through S/PDIF, RCA, coaxial, and AES/EBU connectors. DSD digital connections are handled through the use of BNC SDIF-3 terminals. As a Portable High-Definition DA Converter A highly portable piece of gear, the DA-3000SD can fit in a 1U backspace and be toted from studio to studio for detailed and reliable monitoring in any environment. Plus, with its WORD clock capability, the unit can double as a high-precision master clock generator, or sync it to an external clocking device for musically correct pure phase coherent audio. As an A/D Converter/Recorder for Mastering By sending stereo master from a DAW and recording them with the DA-3000SD, you can capture the master sound source at a higher resolution than possible with a DAW bounce alone. To insert vintage or other outboard equipment during the mastering process, place the DA-3000SD in the signal chain after the external hardware to capture the audio coloration in all its full, high-definition beauty. As a DSD Multitrack Recorder Both recording and playback synchronization is possible by cascading multiple units, enabling a DSD multitrack environment. By connecting eight DA-3000SD’s, users can record up to 16 tracks at a time. Additional Features Features at a Glance Key Features PCM recording up to 192kHz, DSD recording up to 5.6MHz AD/DA direct mode can be used as a phase coherent pure standalone AD/DA converter Rich input and output selection: analog XLR, RCA; PCM digital S/PDIF, AES/EBUDSD SDIF-3 and DSD-raw Equipped with high-precision TCXO (less than 1ppm) Other Features Premium isolated BurrBrown PCM1795 converters, one for each channel Cascade function supported recording 2 mono files Automatic file closing function to prevent the loss of recorded data if the batteries run out. WORD IN/OUT/THRU Support SDXC (up to 512G) Highly visible 24-dot level meter Equipped with 128x64 dots OLED display Mark function Panel Lock function Dedicated USB keyboard terminal for folder/file name input and external control Oscillator function Outputs volume control USB memory for playback or mutual copying with SD cards Supports wireless remote control (RC-10) 1U rack-mountable
