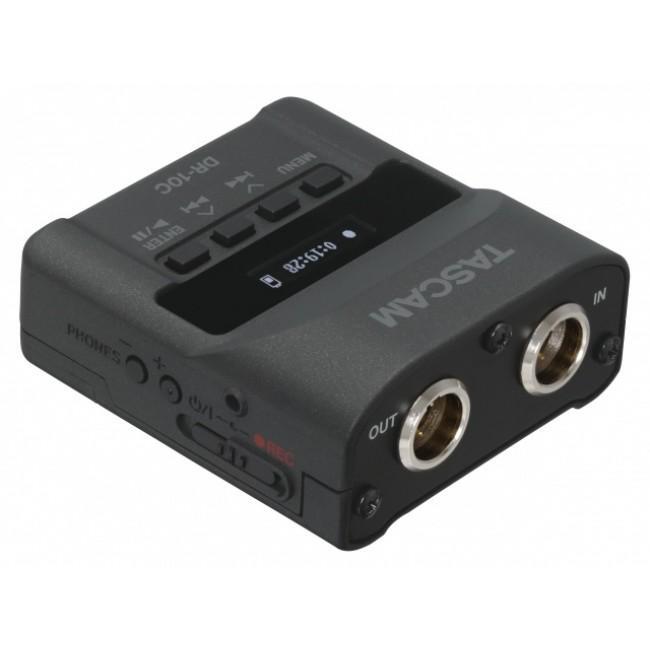

Tascam DR-10CH Plug-On Micro Linear PCM Recorder for Shure Wireless

Product Information: TASCAM’s DR-10C-series recorders connect to your lavaliere microphone to create a compact recording system that fits on a belt pack. Two versions are available: the DR-10CS for Sennheiser mics and DR-10CH for Shure microphones. Additionally, option kits are available for Sony/RAMSA (AK-DR10CR.) and Shure (AK-DR10CH) The DR-10CS & CH recorders have both inputs and outputs, so they can either be used stand-alone or with a wireless transmitter. When used with a transmitter, the DR-10C acts as a backup to protect against wireless dropouts during recording. For lectures or worship services, the DR-10C can record the entire program before it gets to the front of house system. And for events like weddings and reality TV production, the DR-10C is a compact recording system for body mics. The lightweight DR-10C runs for hours on a single AAA battery. It records to standard microSD media. Recording features include auto-gain and a low-cut filter for simple setup. Its dual recording feature records a safety track of your audio at a lower level, so in case of distortion you have a non-clipped backup. When multiple units are used, an infrared signal can synchronize settings between recorders. Whether using it as a backup or as a primary recording system, there’s nothing else like the TASCAM DR-10CS and CH. Specifications: •Instrument trainer / recorder •Records 44.1kHz/16-bit WAV files •Playback 16 or 24-bit WAV files or MP3 files •Stereo Microphone •Internal Speaker •SD/SDHC card media slot with included 2GB card •Overdub recording allows sound-on-sound build up of an arrangement •Loop playback using dedicated buttons •Variable Speed Audition speeds up or slows down playback without changing the pitch •Chromatic Tuner and Metronome •USB 2.0 jack for high-speed music transfer •Dedicated keys and large LCD display for easy operation •New angled desktop design •Includes 2GB SD card, AA batteries, USB cable Recording media microSD card(64MB to 2GB), microSDHC card(4GB to 32GB) Media discharging Push-Push type (Guard cover mounted) Recording format WAV(BWF) Sampling frequency 48kHz Quantization bit rate 24bit Number of channels 1-channel (Mono) Analog audio iInputs Connector DR-10CS 3.5mm(1/8") TRS jack with screw-lock (Sennheiser) DR-10CH Mini XLR 4pin, Male (SHURE) AK-DR10CH Mini XLR 4pin, Male (SHURE) AK-DR10CR HIROSE KMC-9BRF-4S Pin assign is different from SONY and RAMSA(Switchable with slide switch on PCB) MIC input gain LOW / MID / HIGH Input impedance 32kohm or more PHONES Connector 3.5mm(1/8") stereo mini jack (DUAL MONO) USB Connector Micro-B type 4pin Protocol USB2.0 HIGH SPEED mass storage class Power 1 AAA battery (Alkaline battery/ Ni-MH battery / Lithium battery), USB bus power Power consumption 0.45W Battery operation time WAV,24 bit / 48kHz Rec, without headphones, limiter : OFF , Dual Rec : OFF , JEITA Rec Alkaline battery (EVOLTA) Approx 10 hours Ni-MH battery (eneloop) Approx 8 hours lithium battery (Energizer ULTIMATE LITHIUM) Approx 15.5 hours Battery (RTC) Lithium × 1(built in with soldering) Dimensions DR-10CS / DR-10CH 52(W) × 55.6(H) × 24.4(D) mm 2.0(W) × 2.2(H) × 1.0(D) inch AK-DR10CH 49.2(W) × 20.9(H) × 19.2(D) mm 1.9(W) × 0.8(H) × 0.8(D) inch AK-DR10CR 49.2(W) × 20.9(H) × 21.5(D) mm 1.9(W) × 0.8(H) × 0.8(D) inch Weight DR-10CS / DR-10CH 63g (including battery) / 51g (without battery) AK-DR10CH 16.3g AK-DR10CR 16g Operating temperature 0?C to 40?C Accessories DR-10CS / DR-10CH USB cable,Connection cable, Carrying case, Clip, Belt, Owner's Manual (including warranty) AK-DR10CH / AK-DR10CR Connection cable, Spare screws × 3 Audio performance Frequency response 20Hz to 22kHz +1/-2dB (IN to PHONES) Computer compatibility Windows OS Windows 7, Windows 8, Windows 8.1 Macintosh OS OS X Mountain Lion(V10.8), OS X Mavericks(10.9) DR-10C Series Tested media List Last update:March 18, 2015 Maker Series Model Capacity Result Lexar Lexar® High-Performance microSDHC™ UHS-I Card (633x) (Class10) LSDMI16GBBJP633R 16GB OK Lexar® High-Performance microSDHC™ UHS-I Card (300x) (Class10) LSDMI16GBBJP300A 16GB OK Maker Series Model Capacity Result SanDisk SanDisk Ultra® PLUS microSDHC™ UHS-I Memory Cards (Class10) SDSDQUP-016G-J35A 16GB OK SDSDQUP-008G-J35A 8GB OK SanDisk Ultra® microSDHC™ UHS-I Memory Cards (Class10) SDSDQUL-016G-J35A 16GB OK SDSDQUL-008G-J35A 8GB OK Panasonic Premium microSDHC™ UHS-I Card (Class10) R:45MB/s RP-SMGA32GJK 32GB OK RP-SMGA16GJK 16GB OK
