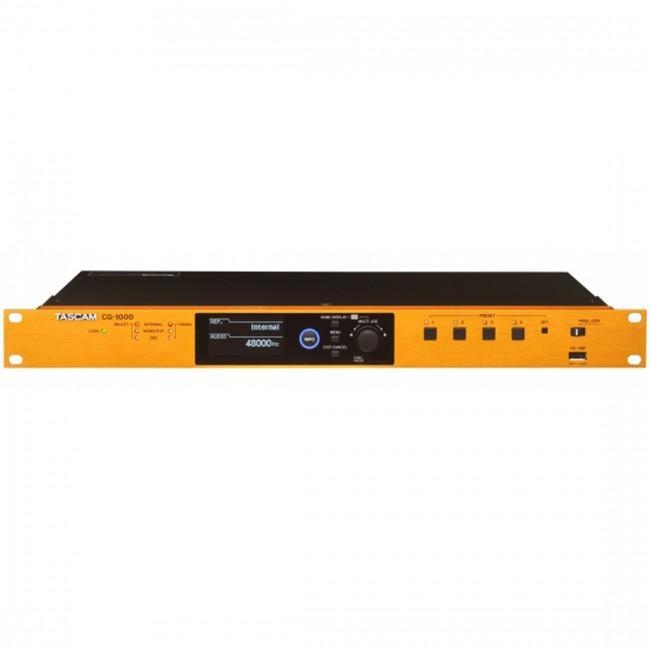

TASCAM Master Clock Generator

Product Information: The CG Series includes three distinct models tailored to different types of studios. The CG-2000 is designed for the needs of broadcasting and post production, the CG-1800 for small to large-scale video/audio synchronization systems, and the CG-1000 for recording studios, live sound applications and professional musicians. The crystal oscillator is the heart of the clock generator. In each model of the CG Series, an OCXO (oven-controlled crystal oscillator) is used for its high precision, and the fact it is not influenced by the temperature of the environment. Boasting a clock frequency precision of 0.01 ppm*1, which exceeds that of a TCXO (temperature-compensated crystal oscillator), this unit is key in the creation of high-precision synchronization systems - with word output frequency stability of ±0.005ppm or less per day. The CG-2000 is equipped with an external input connector that supports a 10MHz signal. This allows it to be connected to a rubidium clock or GPS clock for even higher precision. External clock jitter is reduced using an original TASCAM circuit design that incorporates a high-performance video clock generator engineered with a FPGA*2 and a PLL (phase-locked loop) circuit with a discrete filter. This enables a stable clock signal to be provided to the video/word outputs - improving system stability. The glitch-free relock circuit prevents noise and skipping sounds caused by master clock dropouts. In addition to (12) word clock outputs and (4) video outputs, the digital outputs include (2) AES3/AES11 and (2) S/PDIF outputs, making this unit useful for large-scale audio/video synchronization systems, and a wide variety of other applications. Of the (12) word outputs, two also support x2Fs, x4Fs and 256Fs output - enabling them to be used in systems with ProTools and other DAW software. The CG Series has multiple functions to support maintenance, and the identification of issues if problems occur. The analyzer function measures output device termination, input level measurement (for CG-2000 and CG-1800), and the measurement of input frequencies. These built-in features enable the devices to provide troubleshooting support. Additionally, a logging function enables issues to be listed, and saved to a CSV file format on a USB flash drive. Since crystal oscillators change over time, regular calibration is necessary. In order to avoid possible sync problems, timely inspections – along with regular maintenance is required. The CG Series has a self-correction function, enabling users to conduct maintenance using an external signal input*3 and simple operations. Amphenol BNC connectors on the chassis use nuts for coupling – making them very durable, Also, a single circuit board is used for each connector - providing excellent resistance to the twisting and pulling of cables, and the suppression of interference between connectors. The CG Series is the latest in the line of innovative TASCAM professional digital products – engineered with the latest digital clocking technology. Specifications: CG-2000 CG-1800 CG-1000 Inputs VIDEO INPUTS Connector BNC×2(A/B) BNC - Input level 0.5Vp-p to 2.0Vp-p - Input impedance 75ohm (ON/OFF selectable by menu) - Input signal SD video black burst NTSC(29.97), NTSC B/W(30), PAL(25) - HD video tri-level 720p 50, 59.97, 60 - 1080p 23.976, 24, 25, 29.97, 30, 59.94, 60 - 1080i/psf 23.976, 24, 25, 29.97, 30 - Allowable frequency deviation +/-10ppm - WORD/EXT INPUTS Connector BNC×2(A/B) BNC Input level 0.5Vp-p to 5.0Vp-p Input impedance 75ohm/50ohm(75/50/OFF selectable by menu) Supported frequencies WORD CLOCK 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz ATOM 10.0 MHz GPS 10.0MHz Allowable frequency deviation +/-50ppm AES3/11 INPUT Connector XLR-3-31(1:GND, 2:HOT, 3:COLD) Input level 0.2Vp-p to 10Vp-p Input impedance 110ohm Format AES11-2003, AES3-2003, IEC60958-4 Supported frequencies 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz Allowable frequency deviation +/-50ppm CALIBLATION INPUT Connector BNC Input level 0.5 to 5.0 Vp-p Input impedance 50ohm(ON/OFF selectable by menu) Supported frequencies ATOM 10.0 MHz GPS 10.0MHz, PPS Outputs VIDEO OUTPUTS Connector BNC×4(1-4) - Output level 1.3Vp-p - Output impedance 75ohm - Output signal SD video black burst NTSC(29.97), NTSC B/W(30), PAL(25) - HD video tri-level 720p 50, 59.97, 60 - 1080p 23.976, 24, 25, 29.97, 30, 50, 59.94, 60 - 1080i/psf 23.976, 24, 25, 29.97, 30 - WORD OUTPUTS Connector BNC×12(1-12) Output level 1.0Vp-p to 3.5Vp-p (adjustable in 0.5V steps by menu) Output impedance 75ohm Supported frequencies 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz 1/4xFs, 1/2xFs, 1xFs, 2xFs, 4xFs, 256xFs (Only OUTPUTS 11-12) AES3/11 OUTPUTS Connector XLR-3-31(1:GND, 2:HOT, 3:COLD)×2(1-2) Output level 2.5Vp-p Output impedance 110ohm Format AES11-2003, AES3-2003, IEC60958-4 Supported frequencies 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz S/PDIF OUTPUTS Connector RCA pin jacks ×2(1-2) Output level 0.5Vp-p Output impedance 75ohm Format IEC60958-3 ALARM OUTPUT Connector 6-pin Euroblock connector - Output level Open collector - Transmission method Parallel - Output impedance 10ohm - Withstand voltage 20V - Maximum current 35mA - USB A data transfer use by a USB flash drive Connector 4-pin type B Protocol USB2.0 High Speed (480Mbps) Power supply rating DC5.0V, 0.2A Internal oscillator performance TYPE OCXO frequency accuracy +/-0.01ppm(factory default value) frequency stability +/-0.005ppm / day Power AC100V to 240V, 50/60Hz Power consumption 14W 11.5W 10W Dimensions 483(W)×45(H)×310(D)mm Weight 3.3kg 3.2kg 3.1kg Operating temperature range 0?C to 40?C Included accessories Power cords×2, rackmounting screw kit, operation manual (with warranty) Power cords, rackmounting screw kit, operation manual (with warranty)
